- Page 1 Macurco™ BRS-485 Multi-protocol RS-485 Adapter User Instructions IMPORTANT: Keep these user instructions for reference.
-
Page 3: Table Of Contents
Macurco MRS-485 Modbus RS-485 Adapter Table of Contents General Safety Information ........................4 List of warnings ..........................4 Use Instructions and Limitations ......................5 Use For ............................5 Do NOT use for ..........................5 Features ............................6 Specifications ..........................7 Installation Instructions.......................... - Page 4 Operation Test ..........................24 Manual Operation Test ......................... 25 Appendix A............................26 Appendix B – Table of Figures ......................30 Macurco Gas Detection Product Limited Warranty ................31 Technical Support Contact Information ....................... 32 General Contact Information ........................32 REV – 1.0...
-
Page 5: General Safety Information
The Macurco BRS-485 simply connects to the back of the detector and a single screw fastens it in place. The BRS-485 accepts the 4-20mA output and is powered from the same connection as the detector. The BRS-485 can interface with Building Automation Systems, Control Panels or other Control Devices that accept Modbus, BACnet, Metasys and Siemens communication protocol. -
Page 6: Use Instructions And Limitations
Do not mount the BRS-485 where the normal ambient temperature is below 0°F or exceeds 125°F (- 18°C or above 52°C). The BRS-485 mounts to a Macurco 6-Series detector installed on a 4” x 4” electrical box electrical box supplied by the contractor. -
Page 7: Features
Macurco MRS-485 Modbus RS-485 Adapter Features • The Macurco BRS-485 interfaces the detector power and 4-20mA output lines with a mounted connector The BRS-485 monitors sensor type, gas level and trouble status communications from any of the • Macurco 6-Series detectors •... -
Page 8: Specifications
Connections: plugs/terminals • Color: Blue Mounting screw and screwdriver included • BRS-485 operates as Modbus RTU Slave, BACnet MSTP Server, Metasys N2 Slave or Siemens FLN Slave • Baud Rate: • Modbus: 2400, 4800, 9600, 19200 (default), 38400, 57600, 115200 bps... -
Page 9: Installation Instructions
Installation Instructions The following instructions are intended to serve as a guideline for the use of the Macurco BRS-485 Adapter. It is not to be considered all-inclusive, nor is it intended to replace the policy and procedures for each facility. If you have any doubts about the applicability of the equipment to your situation, call Technical Support at 844-325- 3050. - Page 10 Macurco MRS-485 Modbus RS-485 Adapter Figure 3-1 BRS-485 Installation Expanded The 6-Series detector mounts on a 4”x 4” electrical box supplied by the contractor. Connect the detector to the control cables with terminal plugs. When making connections, make sure the power is off.
-
Page 11: Connection
2W-Modbus circuits definition with selectable built-in terminating resistors at the ends of the RS-485 bus. The power for the BRS-485 adapter is connected via a two-terminal screw type connector, 12 to 24 VAC or 12 to 24 VDC and no polarity. -
Page 12: Wiring
Macurco MRS-485 Modbus RS-485 Adapter Wiring 3.4.1 Signal Wire A serial Line Cable should be shielded for best performance. The shield should be connected on each detector at SHD terminal and connected to a ground terminal or chassis only at one end of the bus. An RS-485 must use a balanced pair (for A &... -
Page 13: Length
Macurco MRS-485 Modbus RS-485 Adapter Figure 3-3 Modbus Wiring 3.4.3 Length The end to end length of the trunk cable must be limited. The maximum length depends on the baud rate, the cable (Gauge, Capacitance or Characteristic Impedance), the number of loads on the daisy chain, and the network configuration (2-wire). -
Page 14: Power Wire
AWG18 (minimum) for short runs. Since Macurco detectors are rated for operation between 12 and 24 VDC or VAC, the voltage drop between the power supply and the BRS-485 should not be an issue if the recommended power wire gauge guidelines below are followed. The terminals will accept wire from 16 to 28 AWG. -
Page 15: Configuration
Macurco MRS-485 Modbus RS-485 Adapter Configuration Figure 4-1 NPU Program REV – 1.0 [34-2900-0019-7] 14 | P a g e... -
Page 16: Macurco Npu Software
Modbus, BACnet, Metasys and Siemens are protocol supported by BRS-485. Address - The address of the device in the network. This setting is not available for BACnet. MAC Address: Defines the address (0-127) that the BRS-485 (node) will reside on the network. This setting is available for BACnet only. -
Page 17: Addressing And Communication Settings
Connect BRS-485 to PC using mini USB to USB adapter, and open Macurco NPU software. Macurco NPU software will display the current settings of the BRS-485. Update the settings in Macurco NPU software and hit Submit to load the updated settings into BRS-485. Footer of the NPU software displays the status of the settings update. - Page 18 Macurco MRS-485 Modbus RS-485 Adapter NOTE: After any configuration change, disconnect the USB cable from BRS-485 and perform power reset for BRS-485. Following table shows the valid addresses for different protocols. Communication Protocol Valid Address Modbus RTU 1…247 BACnet MS/TP 0…127...
-
Page 19: Firmware And Configuration Update

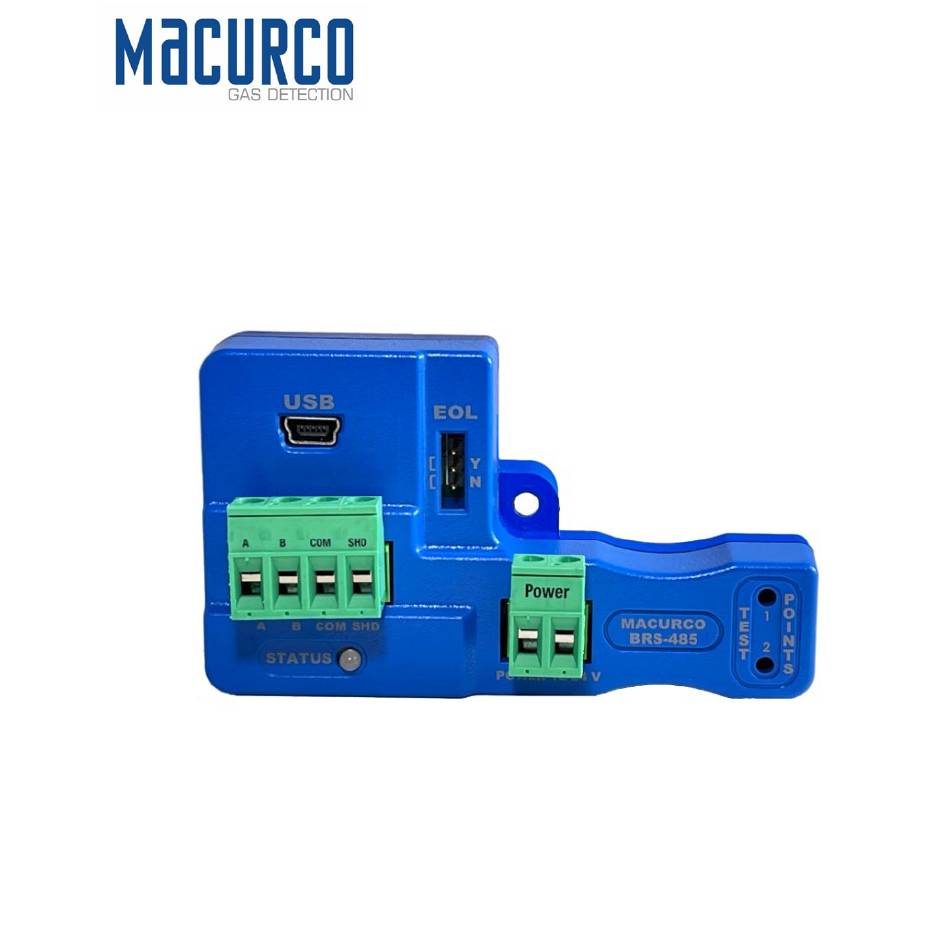

Open the Macurco Network Parameter Utility Software. b. If BRS-485 is connected to PC via USB, the software will display home screen like one in Figure 5-1. If Software does not detect the BRS-485 it will display “No Device Connected”. Make sure software detects the panel before proceeding. - Page 20 Y = 120 ohm N = No termination (default) If Line Termination requirements are different than those provided, then the line termination will need to be provided by the installer. Figure 4-4 BRS-485 Front view REV – 1.0 [34-2900-0019-7] 19 |...
-
Page 21: Operations
The BRS-485 is an adapter which allows the reading of a 6-Series gas detector over a RS-485 interface. To achieve this, the BRS-485 will monitor the 4-20 mA current output of the detector. At power up and during its warm-up period, the 6-Series detector will communicate its sensor type over the 4-20 current output using a custom protocol. -
Page 22: Troubleshooting
Solid RED - The BRS-485 detected an error and no Modbus communications are in progress. RED with random bursts of AMBER - The BRS-485 detected an error and AMBER is displayed when data are received or transmitted over the RS-485 line There are a number of conditions which are signalized in this way: •... -
Page 23: Status Led States
Solid Green with Bursts of Amber Operation is normal and data is being received or transmitted over the RS-485 line. The BRS-485 doesn’t know the detector type, no errors are detected, and no data is Green/Off Alternating every 500ms being received or transmitted over the RS-485 line. -
Page 24: Maintenance
Macurco MRS-485 Modbus RS-485 Adapter Maintenance The BRS-485 does not require regular maintenance. All maintenance and repair of products manufactured by Macurco are to be performed at the appropriate Macurco manufacturing facility. Macurco does not sanction any third-party repair facilities. -
Page 25: Testing
Check that the detector operating LED light is illuminated Green continuously. If not, do not proceed with the tests. If the unit is in error mode, contact your local representative or Macurco technical service representative for information on resolving the problem. -
Page 26: Manual Operation Test
Macurco MRS-485 Modbus RS-485 Adapter The Fan relay will be activated for the next 1 minute of the test, so if the fan circuits are wired in the typical manner, the fan should run. The 4-20mA output will then ramp up from 4 to 16 mA over the next 130 seconds of the test, so if the circuit is wired in the normal manner, the control panel or building automation system should respond. - Page 27 BRS-485. So, please refer to corresponding object mapping available on the BRS-485 product page in www.macurco.com. For dual sensor (CX-6), S1 refers to carbon monoxide sensor and S2 refers to nitrogen dioxide sensor.
- Page 28 NOTE: Due to limitation of Siemen FLN protocol, readings for CD-6H and CD-6MC might not be communicated correctly if FLN master interprets 16-bit values as signed integers. So, BRS-485 for use with CD-6H and CD-6MC is not recommended for Siemen FLN protocol if FLN master interprets 16-bit values as signed integer.
- Page 29 Indicates number of days left before calibration overdue Calibration Overdue c. No Signal When there is no signal on the 4-20mA output of the detector connected to BRS-485, the corresponding bit of Modbus register or corresponding object is set. d. Cal Overdue REV –...
- Page 30 Calibration Overdue. e. BRS485 Status When the BRS-485 status is not zero, then it will set this object. Following are possible reasons for non-zero BRS- 485 status. - When calibration data cannot be loaded. This is related to factory operation and should not occur in the field.
-
Page 31: 10 Appendix B - Table Of Figures
Macurco MRS-485 Modbus RS-485 Adapter j. Unknown Sensor This is set when BRS-485 is connected to unknown/incompatible detector. 10 Appendix B – Table of Figures Figure 3-1 BRS-485 Installation Expanded ......................9 Figure 3-2 Connection Expanded ........................10 Figure 3-3 Modbus Wiring ..........................12 Table 3-1 Power Wire lengths .......................... -
Page 32: 11 Macurco Gas Detection Product Limited Warranty
Macurco warrants the BRS-485 Adapter will be free from defective materials and workmanship for a period of two (2) years from date of manufacture (indicated on the cover of the BRS-485), provided it is maintained and used in accordance with Macurco instructions and/or recommendations. If any component becomes defective during the warranty period, it will be replaced or repaired free of charge, if the unit is returned in accordance with the instructions below. -
Page 33: Technical Support Contact Information
Email: support@macurco.com Email : info@macurco.com Website: www.macurco.com/support/ Website: www.macurco.com Rev – 1.0 Issue Date: 4/7/2021 Document No: 34-2900-0019-7 © Aerionics 2021. All rights reserved. Macurco is a trademark of Aerionics, Inc. REV – 1.0 [34-2900-0019-7] 32 | P a g e...
