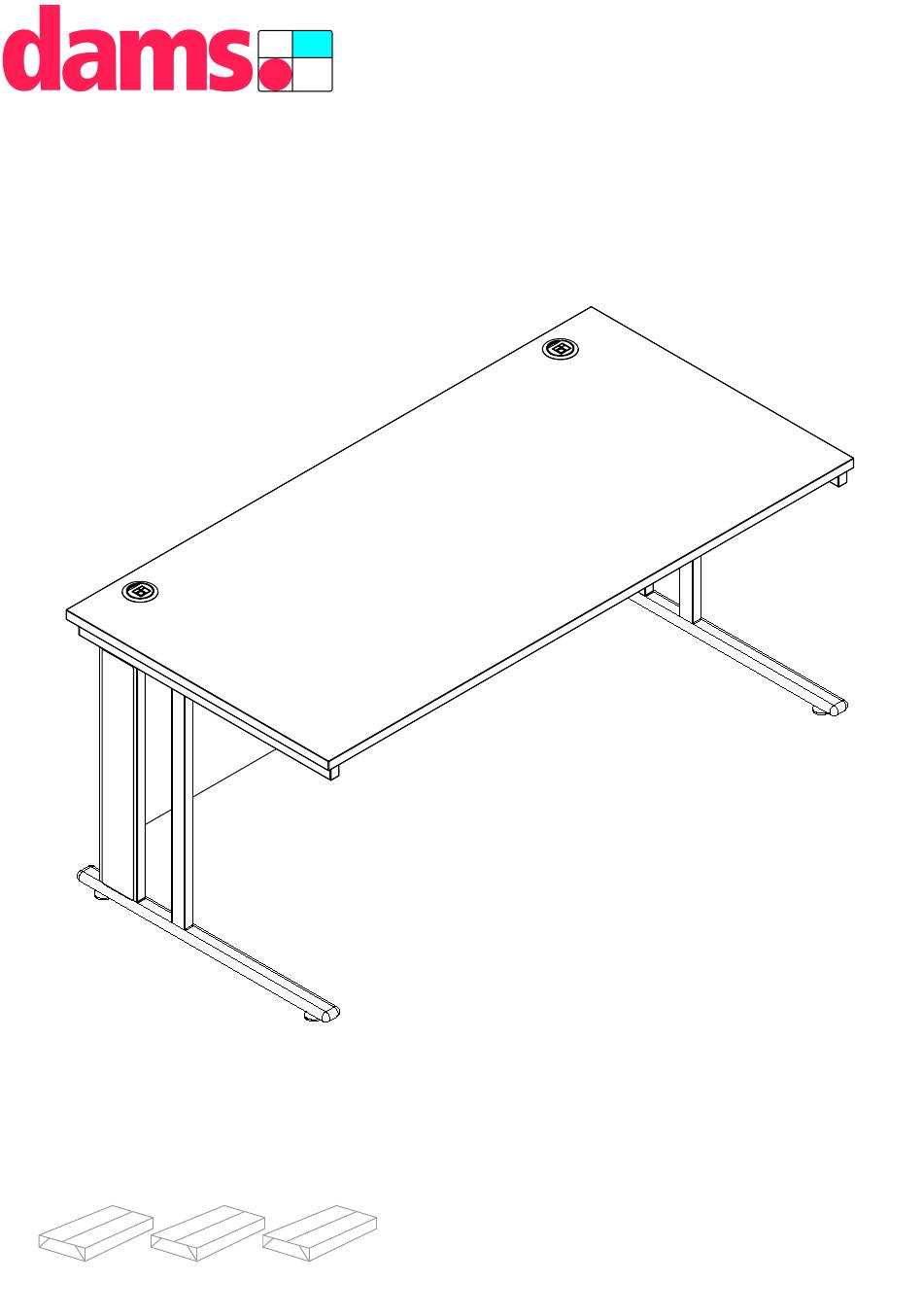

- Page 1 MCM258 10.01.2020 800mm Cable Managed Leg Frame Maestro 25 Desking...
- Page 2 1,2,3...
- Page 3 Please check that you have all the components! Please check that you have all the hardware! 4mm Allen Key Confirmat Screw 70mm (Silver) Adjustable Foot Dia 38mm RM-ALK01 RM-CFM04 RM-FRL20 Nylon M6x10 Socket Connect Bolt M6x50mm M6x10mm Thumbscrew Cable Tie RM-PAR05 RM-BLT05...
- Page 4 Step 1 Place your desktop face down onto a clean dry surface and knock in the nylon inserts into the pre drilled holes on the underside of the desktop. Nylon M6x10 Socket RM-PAR05 Step 2 Screw the 25mm adjustable feet into the bottom of both leg frames.
- Page 5 Connect Bolt M6x50mm Step 3 RM-BLT05 Attach the LH leg to the desktop using the M6x50mm connect bolts. Confirmat Screw 70mm (Silver) Step 4 RM-CFM04 Attach the modesty panel to the leg using the 70mm confirmat screws.
- Page 6 Confirmat Screw 70mm (Silver) Step 5 RM-CFM04 Place the RH leg frame onto the desktop and attach to the modesty panel using the 70mm confirmat screws. Step 6 Attach the leg frame to the desktop using the M6x50mm connect bolts. Connect Bolt M6x50mm RM-BLT05...
- Page 7 Step 7 Insert the cable channel into the opening between the uprights. Repeat this step for both legs. Cable Channel Step 8 Once the cable channel is in place fix it into position using the M6x10mm thumbscrews. Repeat this step for both legs. M6x10mm Thumbscrew...
- Page 8 Step 9 Step 10 Feed any cables up through the cable channel Insert the cable cover into the opening between from the inside of the leg. If needed use the the uprights. Repeat this step for both legs. cable ties to fasten them to the cable channel. Cable Tie Cable Cover Step 11...
- Page 9 15 Oct 07 k Pedestals 253F 252F...
