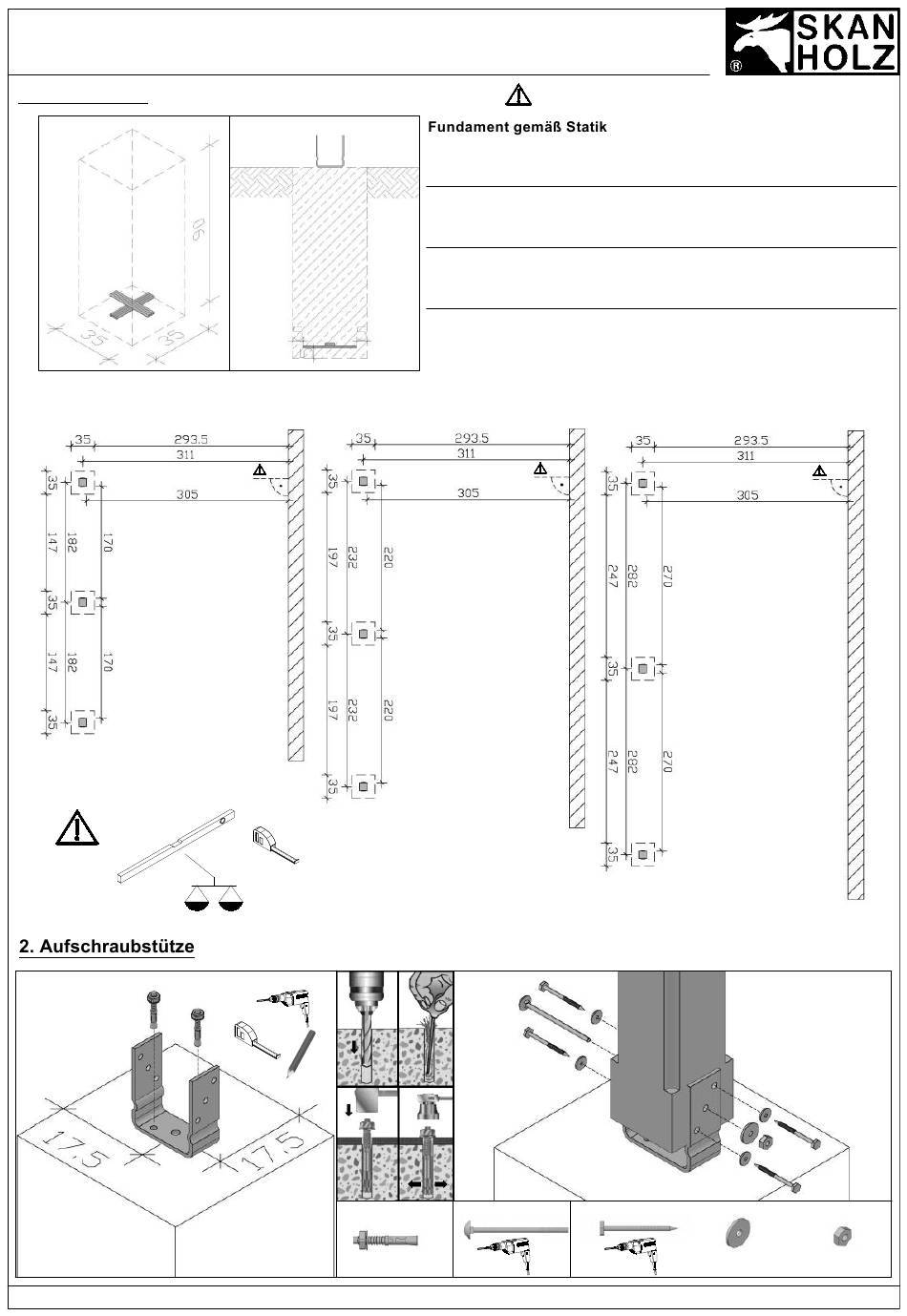

Skan Holz Tiefe 350cm Assembly Instructions

Aufbauanleitung Tiefe 350cm
Assembly instructions / Instructions de montage / Montagehandleiding
1. Fundamente / Foundations / Fondations / Stichtingen
200054
(434x350cm)
2
© SKAN HOLZ Europe GmbH, D-21227 Bendestorf. Stand 06/16
200115
2
C133-120 / Anchor / Ancrage / Paalankers
10mm
je 2x C111-3
1
- Beton C25/30
- Betonstahl 500 (M), je 4 Stk. Ø 12 kreuzweise miteinander verbinden
- Betondeckung 5cm,
Foundations suitable for structure (not supplied):
- Concrete C25/30
- reinforcing steel 500 (M), each 4 pieces Ø 12 crosswise under the Post
- Concrete cover 5cm
Fondations conformément à la statique (non inclus):
- Béton C25/30
- acier béton 500 (M), each 4 pcs Ø 12 croix le support chacun
- Couverture béton 5cm
Stichtingen volgens statica (niet inbegrepen):
- Beton C25/30
- versterking van de stalen500 (M), elk 4 Ø 12 stuks
- Betondekking 5cm
(541x350cm)
2
je 1x C110-014
9mm
(nicht im Lieferumfang):
200177
(648x350cm)
je 4x L208-070 je 5x A108-16
6mm
2
je 1x C110-M8
