Summary of Contents for 3TEMP Hipster WALL

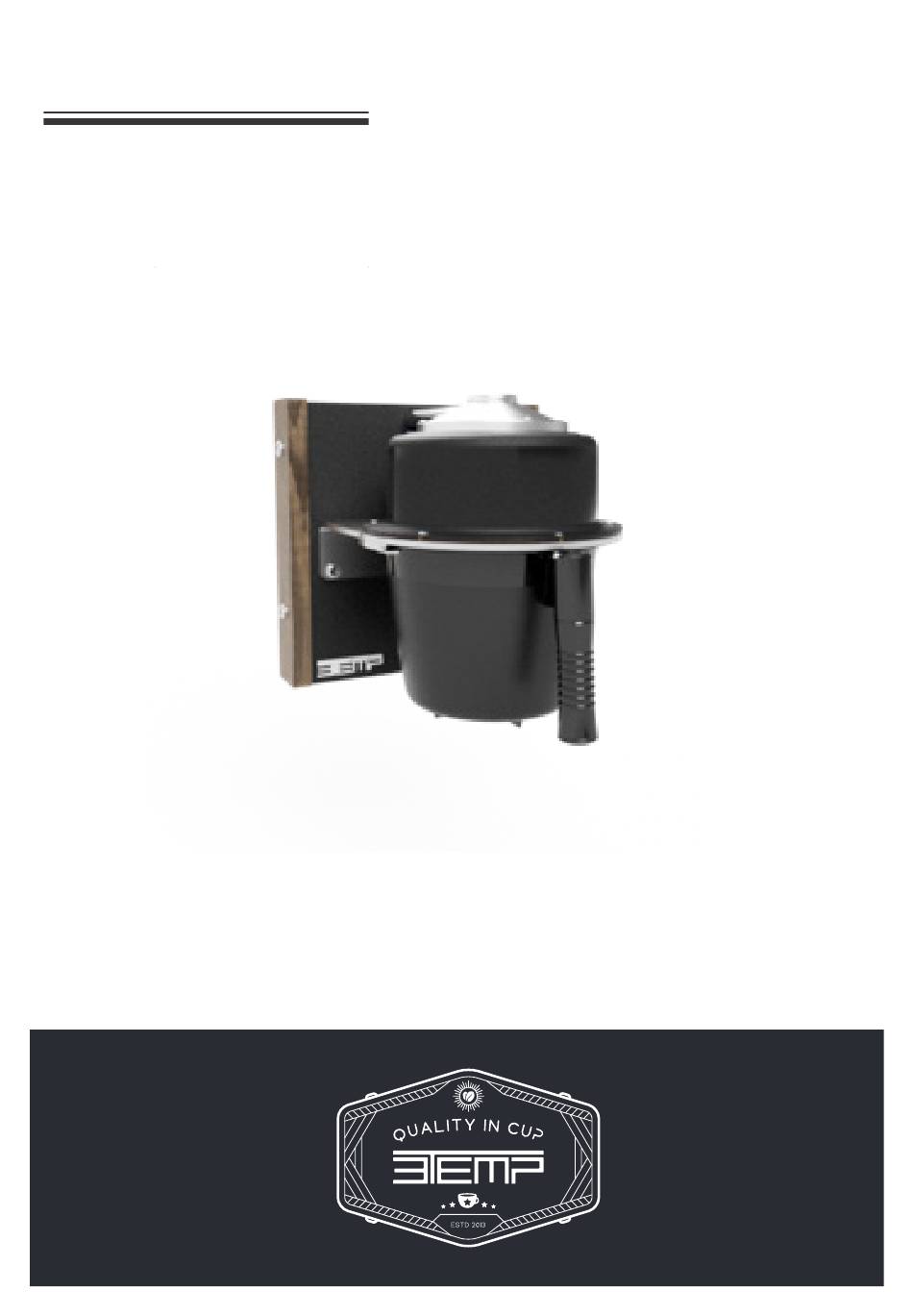

- Page 1 Rev.300305-02 Hipster WALL User manual WALL 300305-2 Made in Sweden...
- Page 2 Rev.300305-02 Hipster WALL...
-
Page 3: Preface
The fresh water system and the recipe parameters makes a huge impact on the taste and a tiny impact on the environment as it consumes barely 7 watts when not brewing. We hope that you will enjoy your new Hipster brewer. With best wishes Copyright 2021 All rights reserved 3TEMP/PLAE2TECH Hipster WALL... - Page 4 Rev.300305-02 Hipster WALL...
-
Page 5: Table Of Contents
Rev.300305-02 Table of contents 1. Preface ..................3 2. Safety information ..............6 2.1 Introduction ..................6 2.2 This user manual ................6 2.3 Intended use ..................6 2.4 Capacity of the machine...............7 2.5 General safety instructions ............7 2.6 Disposal ....................9 3. Before first use ................9 4. -
Page 6: Safety Information
Do not use this appliance for anything other than intended use. Any maintenance other than cleaning should be performed by authorised person. Do not install the machine in environments in which the temperature is 0 C or less. Do not use outdoors. Hipster WALL... -
Page 7: Capacity Of The Machine
We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or any questions. Please contact our support@3temp.com The appliance is only to be installed in locations where it can be overseen by trained personnel. - Page 8 Only use original spare parts. The use of spare parts not approved by the manufacturer could lead to fires, electric shocks or personal injury. Do not place on top of any other appliance. Appliance must not be cleaned by a water jet. Hipster WALL...
-
Page 9: Disposal
3. Before first use Remove all packaging materials attached to your Hipster WALL. Ensure that you have removed all parts and accessories before discarding the packaging. Clean parts and accessories, filter, basket and thermos. Use warm water and a gentle dish washing liquid and rinse well. -
Page 10: Product Description Hipster Kobra
Rev.300305-02 4. Product description Hipster WALL 4.1 Description Wall Bracket Brewer hat Button controller Brew basket Thermos 3,8 l(option) Thermos 2,5 l Level tube Coffee tap Hipster WALL... -
Page 11: The Cycle Of The Hipster Taste-Profiling
Rev.300305-02 4.2 The cycle of The Hipster taste-profiling Pre-brew phase End phase Target ”Regular” brewer Time + Blooming Pre-brew phase End phase End phase Hipster WALL... -
Page 12: Technical Data
Power inlet Water inlet Latest Rev: Description: Date: New Version 19-11-25 MATERIAL: SCALE:1:5.5 DO NOT SCALE DRAWING NAME SIGNATURE DATE TITLE: DRAWN Hipster UC Wall Jarl Nilson 17-06-02 APPV'D 300305-02 PART NO. SHEET 2 OF 3 Hipster WALL... -
Page 13: Wiring Diagram Heatcase
Rev.300305-02 5.2 Wiring diagram HeatCase 220 - 240 VAC 2400W Hipster WALL... -
Page 14: Unpacking
Rev.300305-02 6. Unpacking Router Brew basket plastic Coffee filter 1x 25. 110/330 RJ hub Extension adapter Main unit Hipster WALL Thermos 2,5 Litres Extension cords router Inlet hose Hipster WALL... -
Page 15: Installation Instructions
Measure the wall bracket. right Make sure the main wall is vertical. in height due to thermos version. Caution! Make sure the WALL is in level, or it will not extract evenly in the filter basket. Use a spirit-level . Hipster WALL... - Page 16 Rev.300305-02 Dimensions Wall bracket plate Hipster WALL...
-
Page 17: Installation Button Controller
Rev.300305-02 7.3 Installation button controller Decide where to place the button controller; either on the left hand side or the right hand side. Note! This example is to the right Hipster WALL... - Page 18 Rev.300305-02 Front Connect the cable between the ports of the Button controller and the Main unit. Hipster WALL...
-
Page 19: Installation Heatcase
Fasten the cords and tighten the inlet hose to the HeatCase, according to national standard ref. cl. 7.12.1 in 60335-2-75 Hot water hose Button Controller Hat Valve Inlet water hose Fasten the Hot water hose to the Hot water out connector. Hipster WALL... -
Page 20: Machine Status
Tighten the screw in the middle; if not, the warranty will expire. 7.5 Machine status State name Light Startup HIPSTER Idle Green Running Blue Heater error Red slow blink start/stop recipe Connector error Red fast blink Watersupply error Red fast blink grams of coffee Hipster WALL... -
Page 21: Connect The Water Filter System
Now the KOBRA is installed. You are now ready to brew see page 22. Note! For 3TEMP to be able to support you in the best possible way, please connect your Hipster to the internet via LAN, WLAN or GSM. -
Page 22: User Instructions
Add coffee into the filter. Add filter to the brew basket. Note! Make sure the coffee is spread Note! Make sure the filter fits correct. evenly and the surface is flat. Use 3TEMP coffee filter paper. Hipster WALL... -
Page 23: Select Recipe
Rev.300305-02 Ready to brew. Reinstall the brew basket. 8.2 Select recipe Select a recipe. Adjust grams or millilitre. If needed. HIPSTER HIPSTER recipe start/stop recipe start/stop grams of coffee grams of coffee thermos setup thermos setup Hipster WALL... - Page 24 When the brew is finished, the indicator Brewing is in progress when the blue light turns green and a beep is heard. indicator is flashing. HIPSTER HIPSTER recipe start/stop recipe start/stop grams of coffee grams of coffee thermos setup thermos setup Hipster WALL...
-
Page 25: Thermos Detachable Serving Base
Rev.300305-02 8.3 Thermos detachable serving base Place the thermos and place it on Place the cup on the white spot. the detachable serving base. Click! Press for coffee. Warning! Hot coffee. Press Hipster WALL... -
Page 26: Recipe Settings With Button Controller
(Disabled recipe is still in the machine but does not show when pushing “Recipe 1-8” in normal mode). Button 3: Step Down/Back/Previous item (-) in every menu. Button 4: Step Up/Forward/Next item (+) in every menu. Button 5: Previous menu/Back/Cancel Button 6: Next Menu/OK Hipster WALL... - Page 27 . Repeat step 6 and 7 until “Confirm Save” appears. Confirm by pressing . Menu is now back in “Edit recipe”. Select another slot by using repeating steps 2-9 or leave “Programming mode” by pressing Note! Button always moves back to previous selection. Hipster WALL...
- Page 28 Enabled/Disabled status of slot. 3. Press to enter “Confirm Enable/Disable”. 4. Press to confirm Enable/Disable slot. Note! Button always moves back to previous selection. HIPSTER recipe start/stop grams of coffee thermos setup Hipster WALL...
-
Page 29: Care And Maintenance After Use
Use a soft cloth to clean the drip tray. Important! Keep the coffee machine clean. Caution! Do not use liquids other than water. Danger! Appliance must not be cleaned by a water jet. Hipster WALL... -
Page 30: Cleaning Thermos
10.2 Cleaning Thermos Remove the brew basket from Clear any object freefrom the brew basket. the brewer hat. Make sure the thermos is empty. Cleaning Tablet (Part Nr :100204) Caution! Protect your eyes. Warning! Keep away from children. Hipster WALL... - Page 31 Rev.300305-02 Reinstall the brew basket and the thermos. Choose suitable recipe. 3TEMP recommend 2,5 lit HIPSTER start/stop recipe grams of coffee setup thermos Press Start on the Button controller. Wait for the brew process to finish; Press STOP to interrupt the brewing process.
- Page 32 Warning! Hot water. for approx. 1 -2 hour in the thermos. Protect your eyes. Clean it with a dish brush. Rinse out several times! Caution! Make sure that no cleaning fluid is left in the thermos. Rinse out properly. Hipster WALL...
-
Page 33: Cleaning Water Strainer
. Remove screws (A) and detach shower screen (B). Warning! Hot water. Protect your eyes. Clean water strainer using the dissolved Reassemble shower screen. cleaning solution prepared in step 1. Caution! Tighten all screws evenly and make sure water strainer is in level. Hipster WALL... -
Page 34: Spare Parts
Wire insert for single brew 500953 Wi-fi router and tablet 600919 230 3G 600920 UK 4G 600920 240 4G 600920 US 4G Hario wire insert 500913 Water block 600839 Wire insert for single brew 500953 Non-return valve 550038 Hipster WALL... -
Page 35: Extra Additions
Since there is no boiler with preheated water you can also brew with the cold water that comes into the brewer from your water mains. Your new Hipster is pre-loaded with 30 free cold brews for you to test. To order the cold brew function; contact support@3temp.com. Hipster WALL... -
Page 36: Declaration Of Conformity
A part of EU “Green Deal”. Designed for circular economy with concept BAAS (brewer as a service) Measured levels below Swedish heavy metal norm. SLVFS 2001:30 Hipster Taste Quality: European Coffee Brewing Center (ECBC) approved 1.5-2.5 litres. Anders Eriksson, CEO 3TEMP Hipster WALL... -
Page 37: Warranty
This warranty covers faults occurring during the warranty period, which have been notified to the reseller or verified by 3TEMP (warrantor) or a representative of the warrantor, and which concern design, manufacturing or material defects and consequential damages occurring on the product itself. -
Page 38: Notes
Rev.300305-02 15. Notes Hipster WALL... - Page 39 Rev.300305-02 3TEMP can not accept any responsibility for possible errors in catalogues, brochures and other printed material provided that such alterations can be made without sub sequential changes being necessary in specifications 3TEMP/PLAE2TECH. All rights reserved 2019 Hipster WALL...
- Page 40 Rev.300305-02 ‘‘The details create the big picture’’ Web: 3temp.com Mail: 3TEMP Verkstadsgatan 21 67134 Arvika, Sweden Email: info@3temp.com Hipster WALL...
