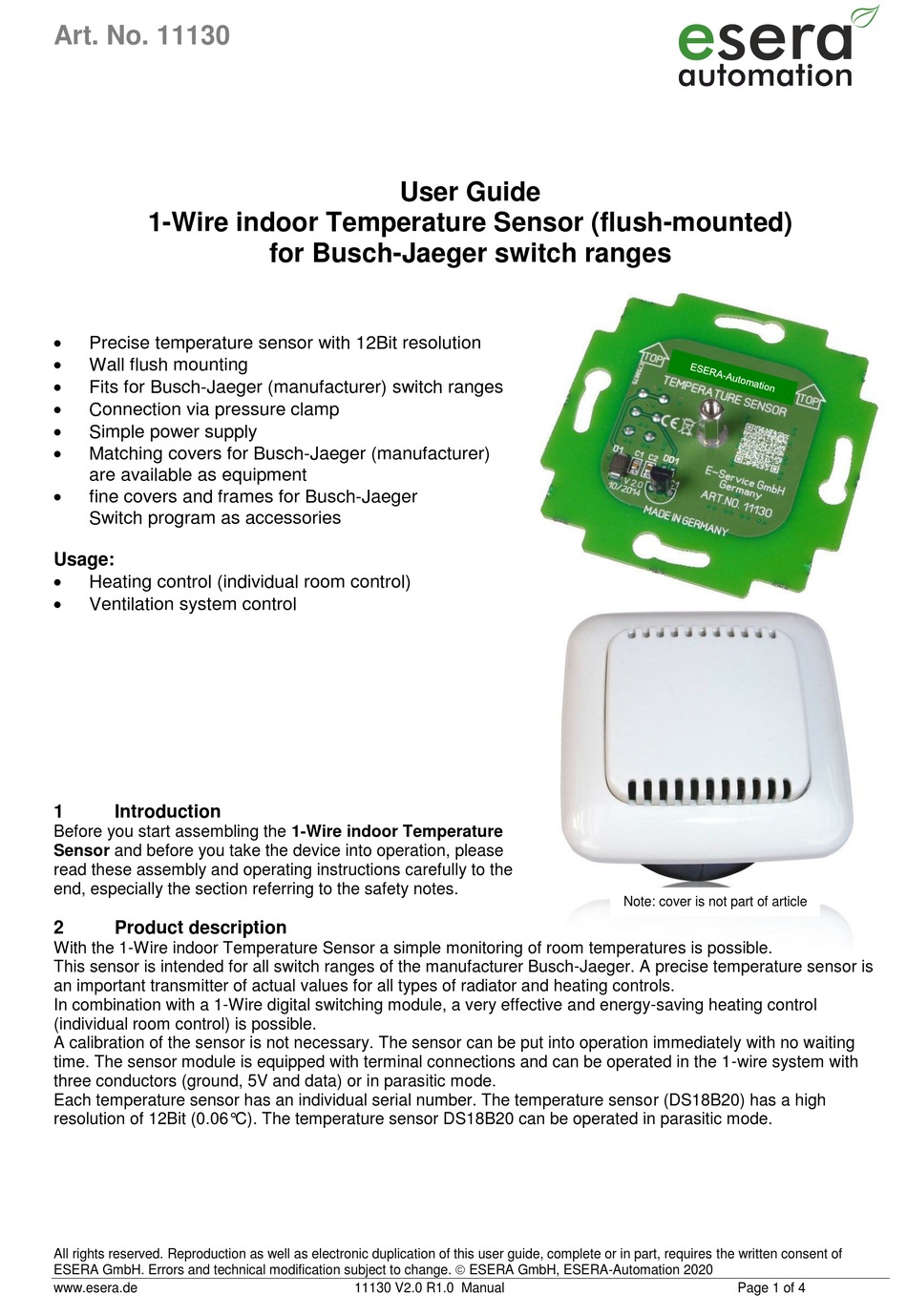

esera automation 11130 User Manual

Art. No. 11130
1-Wire indoor Temperature Sensor (flush-mounted)

Precise temperature sensor with 12Bit resolution

Wall flush mounting

Fits for Busch-Jaeger (manufacturer) switch ranges

Connection via pressure clamp

Simple power supply

Matching covers for Busch-Jaeger (manufacturer)
are available as equipment

fine covers and frames for Busch-Jaeger
Switch program as accessories
Usage:

Heating control (individual room control)

Ventilation system control
1

Introduction

Before you start assembling the 1-Wire indoor Temperature
Sensor and before you take the device into operation, please
read these assembly and operating instructions carefully to the
end, especially the section referring to the safety notes.
2

Product description

With the 1-Wire indoor Temperature Sensor a simple monitoring of room temperatures is possible.
This sensor is intended for all switch ranges of the manufacturer Busch-Jaeger. A precise temperature sensor is
an important transmitter of actual values for all types of radiator and heating controls.
In combination with a 1-Wire digital switching module, a very effective and energy-saving heating control
(individual room control) is possible.
A calibration of the sensor is not necessary. The sensor can be put into operation immediately with no waiting
time. The sensor module is equipped with terminal connections and can be operated in the 1-wire system with
three conductors (ground, 5V and data) or in parasitic mode.
Each temperature sensor has an individual serial number. The temperature sensor (DS18B20) has a high
resolution of 12Bit (0.06°C). The temperature sensor DS18B20 can be operated in parasitic mode.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
User Guide
for Busch-Jaeger switch ranges
11130 V2.0 R1.0 Manual
Note: cover is not part of article
Page 1 of 4
