Artison Masterpiece LCRDM MK2 Quick Reference Manual

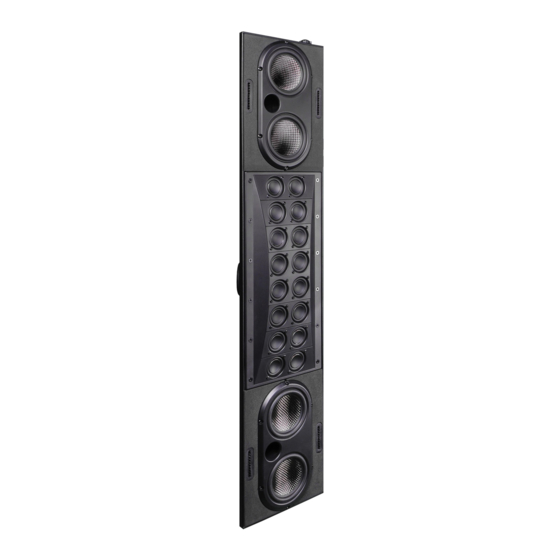

Masterpiece LCR Dual Center MK2 Speaker
Quick Reference Guide

Box Contents

(2) Masterpiece LCRDM MK2 Speakers (M-LCRDM-MK2)
(2) Masterpiece LCRDM MK2 Brackets (MLCRDM-M-BRACKT)
(4) Thumbscrews (THUMBSCREWS)
(1) Pair of White Gloves
(1) Product Information and Regulatory Insert (009-1683-xx)

Optional Accessories

– Universal Mounting Bracket for Flat Panel TV - (Various Sizes)
– Custom Grilles matched to Flat Panel TV's
– In-Wall Mounting Kit (LCRDM-IW-KIT)
– In-Wall Pre-Construction Bracket (LCRDMIWKIT-PCB)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity
10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height
29.6 in
Speaker
(no bracket)
(75.18 cm)
** 30 in
Speaker
(with Grille)
(76.2 cm)
35.0 in
Shipping
(89.0 cm)
** The height shown above is the minimum height grille
available for the Masterpiece LCR speaker. For aesthetic
purposes, the Flat Panel TV selected should be 30 in (76.2
cm) or taller.
Regulatory
RoHS Compliant
Driver Complement
(4) - 3.5 inch Carbon Fiber, Long Throw Midrange/Woofers
(2) - 8 x 1.0 inch ART Drivers in a Curved Line Array
(1) - 1.0 inch Stage Tweeter
Frequency Response
LCR Channels
Recommended Power
100 - 250 watts/channel
Sensitivity
89 dB @ 2.83 Volts, 1 Meter
Nominal Impedance
6 Ohms
Enclosure Type
Bass Reflex
Cabinet / Finish
Extruded Aluminum in Black Anodized. Grille cloth is
available in Black and Light Grey.
M-LCRDM-MK2 | 009-1625-01 | 190826
Copyright 2018 Savant Systems, LLC
Width Depth Weight
6.0 in 2.5 in 13.45 lbs
(15.24 cm) (6.35 cm) (6.10 kg)
6.5 in 2.8 in 14.45 lb
(16.51 cm) (7.11 cm) (6.55 kg)
8.0 in 10.0 in 30.0.lbs
(20.32 cm) (25.4 cm) (13.6 kg)
+ -)
80 Hz - 30 kHz ( / 3 dB

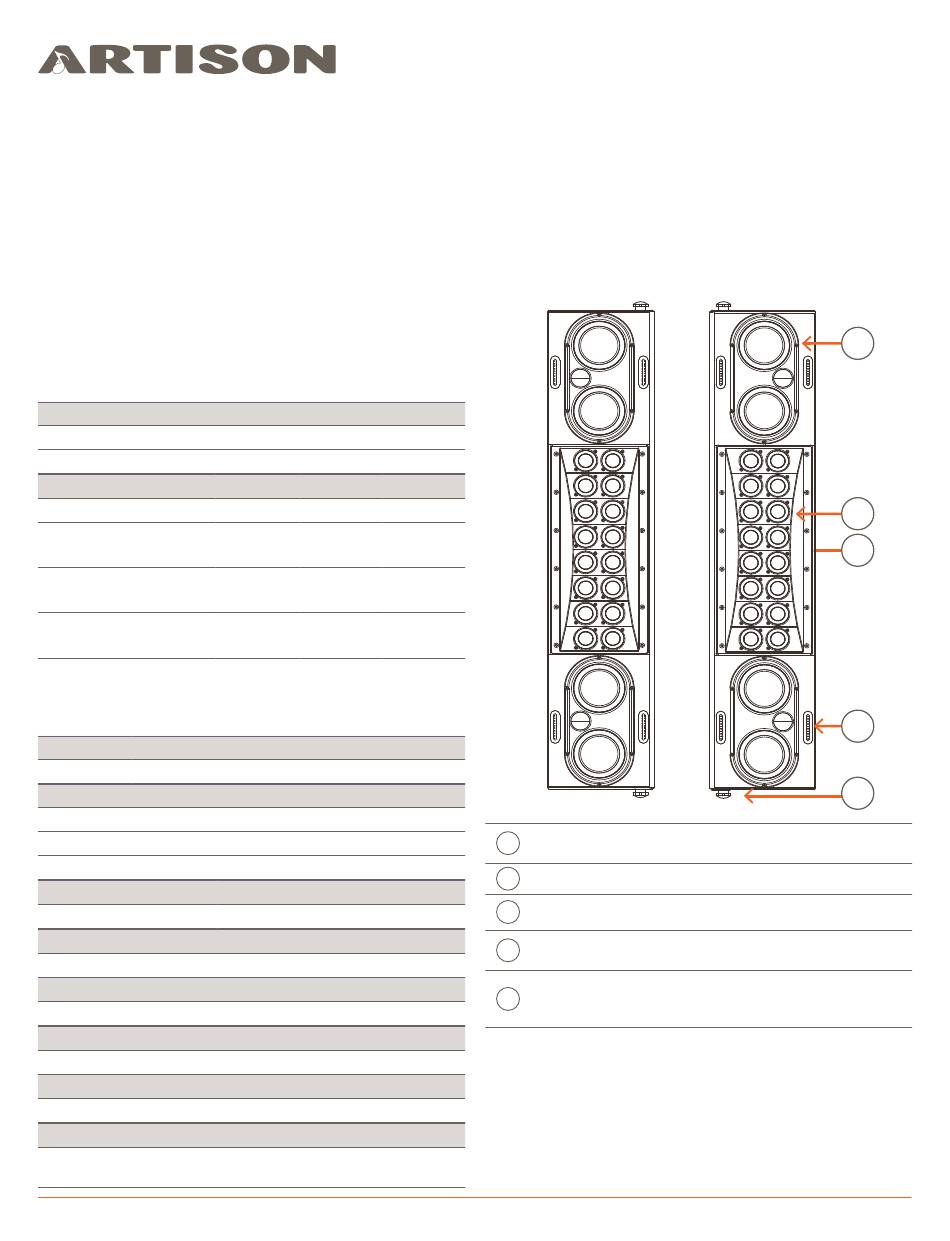

Overview
The Masterpiece Dual Center MK2 speakers are designed for
use with any video display to provide a high performance
home theater Front Channel LCR solution. Housed in an all
aluminum enclosure, the patented Dual Center Channel design
uses an array of two center channels, one left channel, and
one right channel to deliver high performance sound to create
one Total Involvement Experience®.
Four 3.5 inch Carbon Fiber, Long Throw Midrange/
A
Woofers
B
Two (8 x 1 inch) ART Drivers in a Curved Line Array
C
One 1 inch Stage Tweeter (rear of speaker enclosure)
Slots for mounting speaker grilles. Four slots are
D
located in each corner of speaker enclosure.
Mounting bracket with thumbscrews. Bracket can
E
mount to an existing wall or to one of the universal
mounting brackets (UMB-xx) available.
1 of 4
