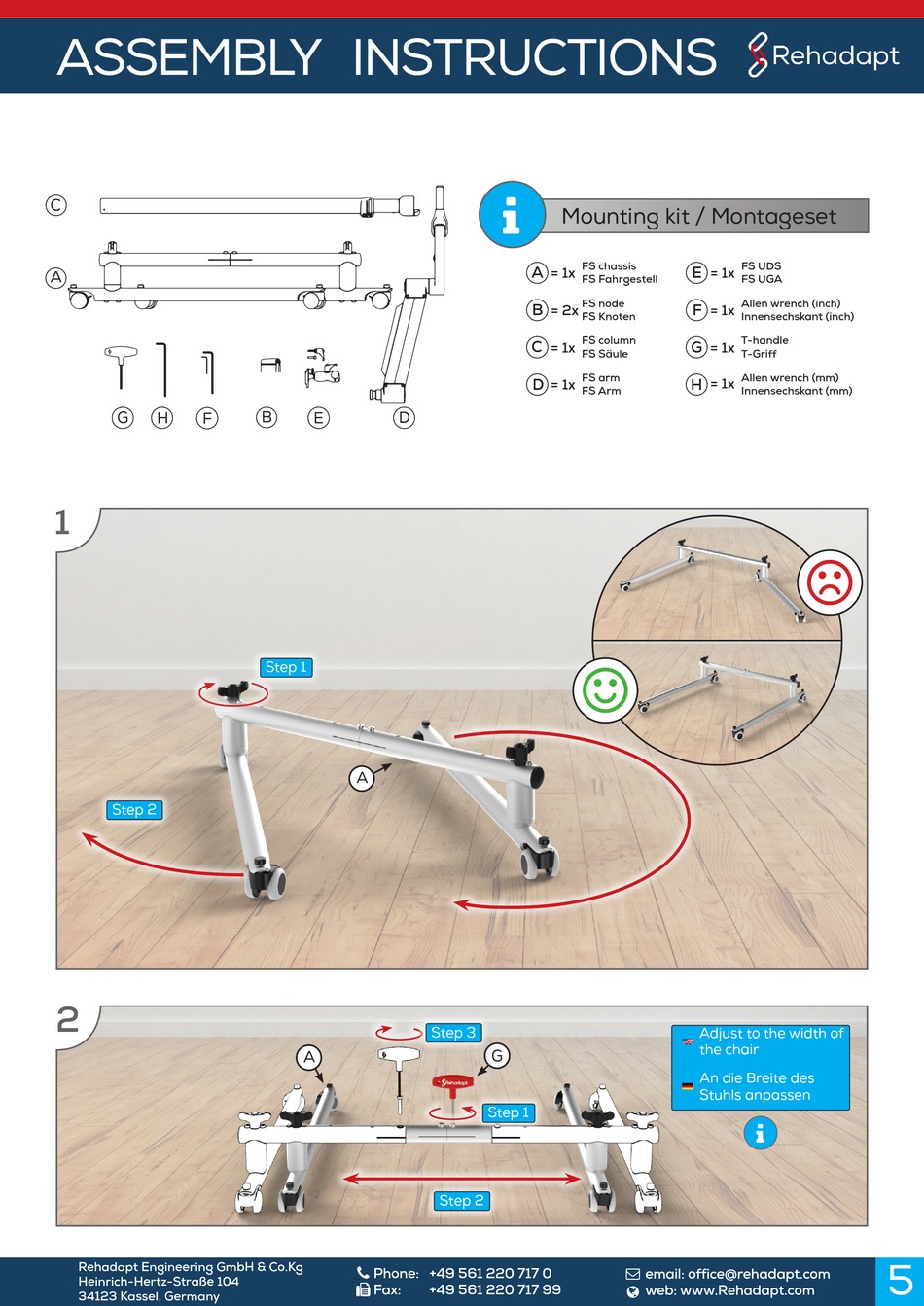

ASSEMBLY INSTRUCTIONS
C
A
G H
F
1
Step 2
2
Rehadapt Engineering GmbH & Co.Kg
Heinrich-Hertz-Straße 104
34123 Kassel, Germany
B
E D
Step 1
A
Step 3
A
Phone: +49 561 220 717 0

Fax: +49 561 220 717 99


i
Mounting kit / Montageset
FS chassis
A
= 1x
FS Fahrgestell
FS node
B
= 2x
FS Knoten
FS column
C
= 1x
FS Säule
FS arm
D
= 1x
FS Arm

G
Step 1
Step 2
FS UDS
E
= 1x
FS UGA
Allen wrench (inch)
F
= 1x
Innensechskant (inch)
T-handle
G
= 1x
T-Griff
Allen wrench (mm)
H = 1x
Innensechskant (mm)
Adjust to the width of
the chair
An die Breite des
Stuhls anpassen

