AEOLUS-SENSE 4 ADS-B & AEOLUS-SENSE 4T ADS-B
INSTALLATION MANUAL
NOTE: Products AEOLUS-SENSE 4 ADS-B and AEOLUS-SENSE 4T ADS-B are
collectively referred in the current document as AEOLUS-SENSE 4(T) ADS-B. If
explicit reference to one of the products is needed, this is made by the actual
product name.
ATTENTION : Installation of the AEOLUS-SENSE 4(T) ADS-B is supplemental
only . It is not intended as a replacement for or modification to an existing,
approved, or required system.
AEOLUS-SENSE 4(T) ADS-B is not a certified aviation instrument. Do not rely on
AEOLUS-SENSE 4(T) ADS-B as your only navigation aid. Failure to comply to
this warning may result in property damage, serious injury or death. You
assume total responsibility and risk associated with using this device and
associated app.
Congratulations on purchasing an AEOLUS-SENSE 4(T) ADS-B. This device provides rich flight
information as detailed below. Proper installation and maintenance of the devise facilitates
accurate performance and uninterrupted operation.
Please read the current manual prior to using AEOLUS-SENSE 4(T) ADS-B and keep it for
future reference.
Correct operation of the AEOLUS-SENSE 4(T) ADS-B requires that one or more mobile smart
device(s) (iOS or Android) are connected to the device.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEOLUS-SENSE 4 ADS-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TALOS AVIONICS AEOLUS-SENSE 4 ADS-B

  • Page 1 AEOLUS-SENSE 4 ADS-B & AEOLUS-SENSE 4T ADS-B INSTALLATION MANUAL NOTE: Products AEOLUS-SENSE 4 ADS-B and AEOLUS-SENSE 4T ADS-B are collectively referred in the current document as AEOLUS-SENSE 4(T) ADS-B. If explicit reference to one of the products is needed, this is made by the actual product name.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 AEOLUS-SENSE 4(T) ADS-B ......................3 1.1 Mounting the AEOLUS-SENSE 4(T) ADS-B.................3 1.2 Power Connection.........................4 1.3 Software – EFIS TA app.......................5 1.4 Compass Calibration........................7 1.5 AHRS Leveling..........................8 1.6 Other Considerations Regarding the AEOLUS-SENSE 4(T) ADS-B...........9 2 AEOLUS-SENSE 4(T) ADS-B Maintenance..................

  • Page 3: Aeolus-Sense 4(T) Ads-B

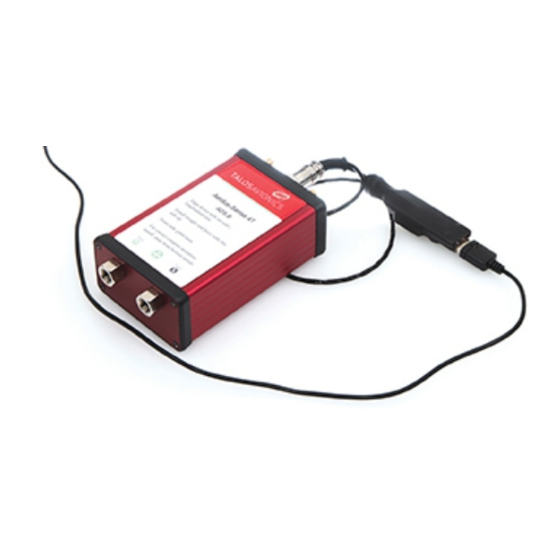

    1 AEOLUS-SENSE 4(T) ADS-B The AEOLUS-SENSE 4(T) ADS-B is shown in Fig. 1. It is a portable device that comes together with a GPS antenna and an ADS-B antenna, and optionally with a USB adaptor for cable connection to a smart mobile device (tablet or smartphone). AEOLUS-SENSE 4(T) ADS-B includes a dual-band (978 MHz and 1090 MHz) ADS-B receiver for traffic and weather information.

  • Page 4: Power Connection

    Fig. 2. AEOLUS-SENSE 4(T) ADS-B should be mounted parallel to the main axes of the airplane. 1.2 Power Connection AEOLUS-SENSE 4(T) ADS-B is powered by two means: Its internal battery, offering approx. 1 and half hours of operation. Please turn the battery- ...

  • Page 5: Software - Efis Ta App

    1.3 Software – EFIS TA app AEOLUS-SENSE 4(T) ADS-B operates with the free EFIS TA app offered by TalosAvionics. EFIS TA app has been tested to comply with ASTM F3153 – 15 Standard Specification for Verification of Avionics Systems. EFIS TA app runs on smart mobile devices (tablets or smartphones) with iOS or Android operating systems.
  • Page 6 Figure 3: Sensor status window. (a) EFIS TA app working with internal sensors only, (b) EFIS TA app connected to an AEOLUS-SENSE 4(T) ADS-B. To test the connection, start the EFIS TA app and tap on “MENU” button a n d t h e n “Sensor Status”.

  • Page 7: Compass Calibration

    Wifi Connection AEOLUS-SENSE 4(T) ADS-B creates a wifi network that is used to connect a smart mobile device. The SSID of AEOLUS-SENSE 4(T) ADS-B wifi network is “AEOLUS XXXXXXXXX” where X is a unique alphanumeric string. Up to ten (10) smart mobile devices can be simultaneously connected via wifi to an AEOLUS-SENSE 4(T) ADS-B.

  • Page 8: Ahrs Leveling

    Figure 4: (a) Press “Start” to start compass calibration. (b) Calibration in progress. The calibration results are indicated as “Weak”; you should continue rotating your device until you have a “Good” or “Strong” indication. (c) Indication as “Strong” calibration signifies that the device’s compass has been properly calibrated.

  • Page 9: Other Considerations Regarding The Aeolus-Sense 4(T) Ads-B

    • Power up your device. • Connect your smart mobile device (iOS or Android) to the AEOLUS-SENSE 4(T) ADS-B wifi Network. • Start the EFIS TA app on your mobile device. • Tap on “MENU” button and then “Level AHRS”. •...

  • Page 10: Aeolus-Sense 4(T) Ads-B Maintenance

    2 AEOLUS-SENSE 4(T) ADS-B Maintenance AEOLUS-SENSE 4(T) ADS-B has been designed and manufactured for long and maintenance- free operation. Still, care must be applied for the following:  AEOLUS-SENSE 4(T) ADS-B Compass: Any replacement and/or relocation of metallic items in the cockpit may require re-calibration of the Compass. Please follow the steps outlined in section 1.4 of the current document for Compass calibration.
