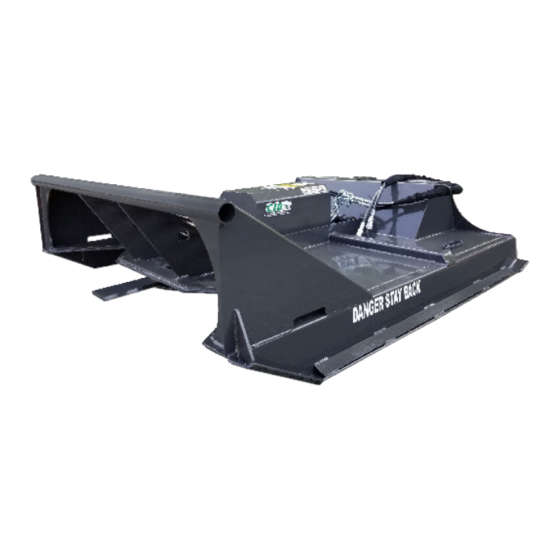

LETTER TO OWNER ..........................6 SECTION 2 SAFETY INFORMATION 2.1 Introduction..............................8 2.2 Safety Symbols............................8-10 2.3 Safety Decals............................11-13 2.4 Skid Steer Tractor Requirements......................14 2.5 General Safety Instructions........................15 SECTION 3 OPERATING PROCEDURES 3.1 Unpacking Your Brush Cutter........................17 3.2 How To Connect Brush Cutter Attachment..................17-18 3.3 How To Start and Stop The Brush Cutter..................19-20 3.4 First Time Use.............................20 3.5 Cutting Operations..........................22-24...
Page 6
If you need more information on this product, contact your local dealer or visit www.cidattachments.com. Sincerely, The CID Team Construction Implements Depot, Inc. X-treme Brush Cutter January 2021...
2.1 Introduction The following terms are used interchangeably throughout this manual. Term Alternate Terms Used implement, attachment, product, X-treme Brush Cutter machine, brush cutter, cutter skid steer loader, skid steer tractor, Skid Steer loader, prime mover user, personnel Operator The X-treme Brush Cutter is designed and manufactured with safety in mind. However, improper use and operator error can result in death or serious injury.
2.2 Safety Symbols This manual and decals on this machine use safety symbols, pictograms and color coded signal words to alert you to potential hazards that may cause death or severe injury if a safety instruction is ignored. Become familiar with the following symbols.
Page 10
2.2 Safety Symbols Cont. Safety Pictograms Pictograms are graphic symbols meant to alert you of a potential hazard. Read and understand the hazard description for each of these symbols. Pictogram Description PINCH HAZARD: Keep clear of skid steer and brush cutter machine to prevent death or serious injury from pinching of moving parts.
2.3 Safety Decals The safety decals affixed to this machine are in place to keep you safe. DO NOT ignore these decals. Read and understand each decal’s safety message. The following safety decals are affixed to this machine: SCAN TO VIEW OWNER’S MANUAL X-TREME...
Page 13
Figure 2.3 Safety Decal Locations Cont. DESCRIPTION SCAN TO VIEW MANUAL QRS CODE STICKER COMBO DANGER WARNING LABEL PINCH HAZARD, HIGH PRESSURE FLUID HAZARD, FLYING DEBRIS HAZARD, SAFETY CHAIN REQUIRED WARNING DO NOT EXCEED LABEL WHEN ORDERING CHOOSE THE PROPER DECAL FOR YOUR MODEL DANGER STAY BACK LABEL ** THERE ARE TWO DECALS left side...
2.4 Skid Steer Loader Requirements Ensure your skid steer loader is in good operating condition. Follow the operating instructions found in your skid steer operator’s manual. Failure to do so could result in minor or serious injury. The X-treme Brush Cutter should only be used on Skid Steer Loader’s that meet the following requirements: 2,200 lb •...
2.5 General Safety Instructions Below are general safety instructions that relate to the overall operation and maintenance of this machine. It is important that you read and understand each message to prevent serious injury or death. ALWAYS watch for overhead power lines. DO NOT place hands or feet under mower deck while blades are spinning.
Unpacking Your Brush Cutter Your attachment arrives from the factory strapped to a wood pallet, and requires no final assembly. Use a pair of tin snips to remove the steel strapping. Shipping straps are under great tension, and could lash out uncontrollably when cut causing injuries to your body.
Page 18
How To Connect Brush Cutter Attachment Cont. 4. Activate your skid steer’s lever lock switch to lock the pins into the flange slots of the brush cutter’s attachment plate. If your skid steer does not have this switch, manually lock the levers as shown in Figure 3.2b below. ATTACHMENT FLANGE Coupler Levers Locked Ensure lock pins fully extend into...
How To Start and Stop The Brush Cutter Brush Cutter Controls Your brush cutter is designed to run off the skid steer loader’s auxiliary hydraulic system, and is activated and deactivated by a control in the operator’s cab. The height and tilt functions of your brush cutter are operated with the control handles or pedals in the cab.
How To Start and Stop The Brush Cutter Cont. If the brush cutter begins to vibrate while increasing the RPM’s, deactivate the auxilary hydraulic system and investigate the cause. Refer to the Troubleshooting Chart on page 36 of this manual. Stopping the Cutter 1.
Page 21
3.4 First Time Use Procedure Cont. After starting skid steer, lift attachment 6 inches off the ground surface: 6 inches 1. With the skid steer engine RPMs just above idle, activate the skid steer’s auxilary hydraulic system. 2. Allow the cutter to run for 30 seconds to purge air from the system, then turn off hydraulic flow to the brush cutter and allow it to come to a complete stop.
3.5 Cutting Operations General Operating Tips • LEARN what the cutter head looks like in a level position when you are seated in the skid steer. Knowing what a level cutter head looks like will prevent you from damaging the cutter blades if you cut too close to the ground.
Page 23
3.5 Cutting Operations Cont. Use care when operating on uneven terrain or any type of sloped surface. Keep your cutter low to the ground when working in these conditions to avoid a roll over that could result in Minor or Serious Injury. Before Cutting 1.
Page 24
3.5 Cutting Operations Cont. Cutting Above Ground Level Vegetation DO NOT operate the brush cutter if you (the operator) can see the cutter blade. If the operator can see the cutter blade, the back of the cutter is raised TOO HIGH. Lower the cutter deck to avoid being hit by flying debris.
Contact your local dealer for maintenance and repair services. Improper maintenance or modifications to the design or performance of this machine will void the warranty. ONLY use genuine CID replacement parts on this machine. Obey the following safety instructions when servicing or repairing this machine.
4.2 Maintenance Schedule This brush cutter attachment will provide years of dependable service if routine maintenance procedures are performed. The maintenance tasks listed below are based on normal operating conditions. More frequent maintenance may be necessary with intense use or when operating in adverse environmental conditions. BEFORE MAINTENANCE TASK EACH...
4.3 Storage Storage Tips To get years of quality use out of your brush cutter, follow these tips when storing your brush cutter: • Thoroughly wash then dry your brush cutter. Ensure brush cutter is free of debris, dirt, grime and grease. •...
Page 29
4.4 Blade Holder Removal Cont. Removal Procedure 1. Use the skid steer tilt function to place the attachment in a near vertical position. 2. Shutoff hydraulic flow to the brush cutter, and release pressure from the auxilary hydraulic circuit. 3. Turn OFF skid steer engine, SET parking brake, and CHOCK skid steer tracks/tires to prevent skid steer from moving.
4.5 Blade Holder Installation Installation Procedure Use a hoist, lift table or forklift to support the blade holder during installation. 1. Align the hole in the blade holder to the gearbox shaft and fully seat the holder onto the shaft. 2.
Page 31
4.6 Blade Removal Cont. Cut Weld Bead Figure 4.6a - Bolt Shank Removal from Blade Holder Blade Sharpening Notes 1. Sharpen cutter blades with the appropriate tool. 2. Be careful not to overheat the blade steel causing the blade material to become brittle and prone to early failure.
4.7 Blade Installation Blade Installation Procedure Disconnect the negative ground cable from your skid steer’s battery when performing this procedure with the brush cutter attached to the skid steer. 1. Grind away the old weld bead to ensure a flat smooth surface for new bolt head to mate to.
4.8 Gearbox Motor Maintenance Maintenance procedures for the gear box motor require special tools and skills. DO NOT attempt to service the gear box motor unless you have the tools and skills to do so. Take your brush cutter to your local dealer to have the gear box motor serviced.
4.8 Gear Box Motor Maintenance Cont. Gear Box Oil Change Procedure 1. Remove oil filler plug. 2. Insert one end of a discharge hose into the gear box oil fill port and the other end into an approved waste oil container. 3.
5.1 Troubleshooting Chart Problem Cause Resolution Cutter bogs down Deck is not properly Refer to leveling leveled & material is instructions found in this balling under deck manual. Dull blades Remove and sharpen blades. Ground speed too fast Slow down ground speed. Cutter speed too slow Raise engine RPMs or investigate other low oil...
SECTION 7 PARTS INFORMATION X-treme Brush Cutter January 2021...
Page 40
PARTS INFORMATION Factory fresh parts specifically designed for your implement are readily available. For hassle free service and to ensure you receive the correct parts for your implement, please provide your dealer with the following information: Model Number Serial Number GPM Requirements Date of Owners Manual (Bottom Left Corner of Cover Page)
7.1 Parts Diagrams Low Flow (14-20 GPM) Ref. No Part Description Cutter Deck Weldment Gear Box - 100 HP Shear Bolt & Nut Set Chain Coupling & Gear Set Bolt Set (Gearbox to Deck) Elbow (Motor Hydraulic) Hydraulic Motor Hose (Motor to Tee) H-Valve Hose (Tee to Quick Disconnect) Blade Holder...
Page 42
7.1 Parts Diagrams Mid Flow (20-30 GPM) Ref. No Part Description Cutter Deck Weldment Gear Box - 100 HP Shear Bolt & Nut Set Chain Coupling & Gear Set Bolt Set (Gearbox to Deck) Elbow (Motor Hydraulic) Hydraulic Motor Hose (Motor to Tee) H-Valve Hose (Tee to Quick Disconnect) Blade Holder...
Page 43
7.1 Parts Diagrams This page intentionally left blank X-treme Brush Cutter January 2021...
CID, Inc. with freight or delivery charges to be prepaid. This limited warranty shall not be interpreted to render CID, Inc. liable for any injury or damage to persons, businesses or property of any kind nor expenses or losses incurred for labor, supplies, substitute machinery rental or for any other reason. Repair or replacement parts are subject to the supply conditions at the time of repair or replacements, which may directly affect our ability to obtain material and/or replacement parts.
3. Obtain a PO number from the original CID customer. PO numbers will be invoiced in the event the defective part(s) is un-warranted 4. CID will ship a replacement part with a Service Request Form and RGA #. There will be a call tag with the Manufacturer’s address and instructions for returning the defective part.
SAFETY ACKNOWLEDGEMENT FORM ATTN ALL OPERATORS: Print your name, sign and date in the boxes below to acknowledge that you have read and fully understand the safety instructions presented in this manual, and have been trained on how to safely operate this attachment. OPERATOR NAME SIGNATURE DATE...
Page 48
SAFETY ACKNOWLEDGEMENT FORM ATTENTION ALL OPERATORS: Print your name, sign and date in the boxes below to acknowledge that you have read and fully understand the safety instructions presented in this manual, and have been trained on how to safely operate this attachment. OPERATOR NAME SIGNATURE DATE...
SECTION 9 MAINTENANCE X-treme Brush Cutter January 2021...
Page 50
MAINTENANCE LOG Use this log sheet to document all routine maintenance and repair services performed on this machine. DESCRIPTION OF MAINTENANCE SERVICED BY DATE X-treme Brush Cutter January 2021...
