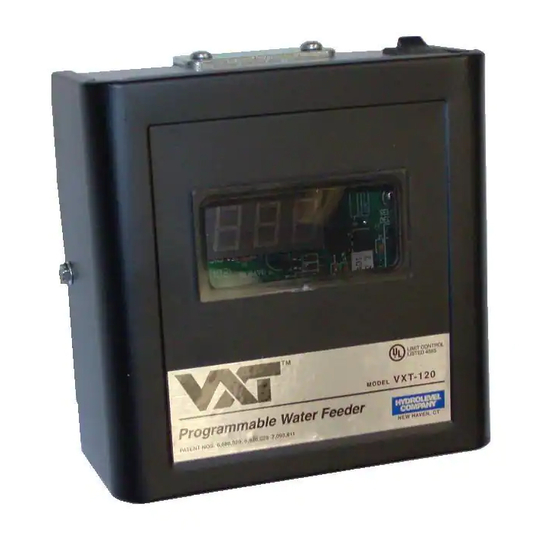

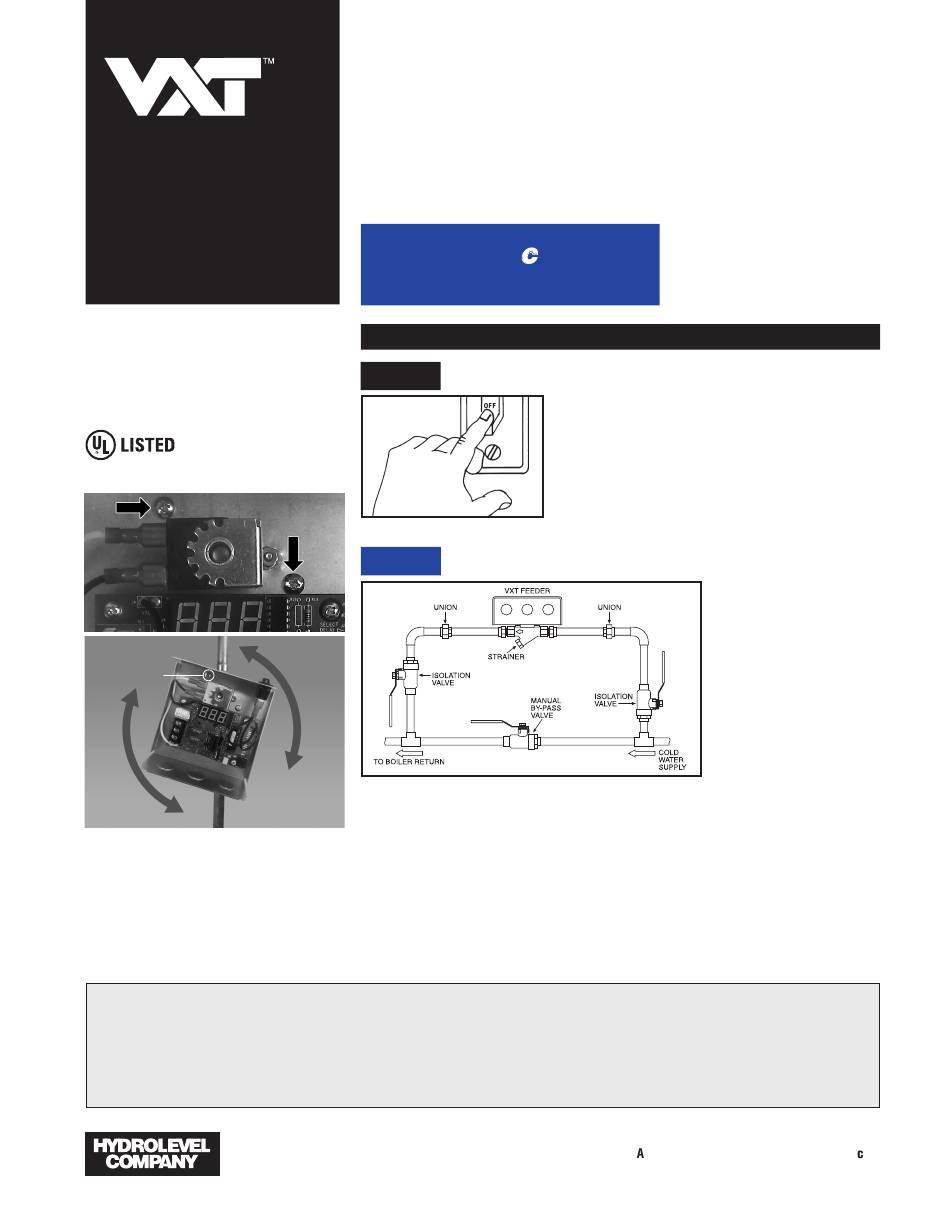

Programmable
Water Feeder for
Steam Boilers
120 VAC Operating Voltage
U.S. Patent No. 6,688,329; 7,093,611;
6,926,028
SPECIFICATIONS
MAX AMBIENT
TEMPERATURE:
100°F
FLOW RATE:
1 GPM
MAXIMUM FEED:
10 Gallons (2 Cycles)
ELECTRICAL:
120 VAC, 60 HZ
A
The VXT can be rotated to accommodate
the orientation of the incoming water line.
To rotate, loosen the 2 mounting screws
located inside the housing (A) a quarter
turn (these screws should NOT be
removed from the housing). Rotate hous-
ing to desired position (clockwise or
counter-clockwise). Once positioned,
tighten the 2 mounting screws (A).
We warrant products manufactured by Hydrolevel Company to be free from defects
in material and workmanship for a period of two years from the date of manufac-
ture or one year from the date of installation, whichever occurs first. In the event
of any claim under this warranty or otherwise with respect to our products which
is made within such period, we will, at our option, repair or replace such products
or refund the purchase price paid to us by you for such products. In no event shall
126 Bailey Road • North Haven, CT 06473 • Phone: (203) 776-0473 • F X: (203) 764-1711 • www.hydrolevel. om
• UNIVERSAL COMPATIBILITY – page 2
• PROGRAMMABLE FEED DELAY SETTINGS – page 3
• PROGRAMMABLE FEED AMOUNT SETTINGS – page 3
• FEED COUNTER – page 4
• UNDERFEED PROTECTION – page 4
• LOCKOUT FLOOD PROTECTION – page 4
BLUE = QUI K-GUIDE
to frequently asked questions
Step 1
Warning
Step 2
Plumbing
The feeder can be mounted on a horizontal or vertical cold water supply line.
It must be installed with a manual by-pass valve and unions (as shown
above) for future serviceability. Arrows on the valve indicate direction of
water flow. Do not install feeder on hot water supply.
IMPORTANT: It is important to prevent any contaminants from entering the
feed valve during or any time after installation. The feeder must be installed
with non-ferrous plumbing materials only to prevent rust from contaminating
the valve. Apply pipe compound sparingly. Remove and clean the feed valve
strainer after the first feed cycle to remove any contaminants that could have
been introduced during installation. See Service / Maintenance on page 4 for
additional information.
LIMITED MANUFACTURER'S WARRANTY
Hydrolevel Company be liable for any other loss or damage, whether direct, indi-
rect, incidental or consequential. This warranty is your EXCLUSIVE remedy and
shall be IN PLACE OF any other warranty or guarantee, express or implied, includ-
ing, without limitation, any warranty of MERCHANTABILITY or fitness for a partic-
ular purpose. This warranty may not be assigned or transferred and any unautho-
rized transfer or assignment thereof shall be void and of no force or effect.
INSTALLATION
WARNING – To prevent electrical shock or
equipment damage, power must be off during
installation or servicing of the control. To pre-
vent serious burns, the boiler should be thor-
oughly cooled before installing or servicing
control. Only qualified personnel may install or
service the control in accordance with local
codes and ordinances. Read instructions com-
pletely before proceeding.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hydrolevel Company VXT-120
Summary of Contents for Hydrolevel Company VXT-120
- Page 1 We warrant products manufactured by Hydrolevel Company to be free from defects Hydrolevel Company be liable for any other loss or damage, whether direct, indi- in material and workmanship for a period of two years from the date of manufac- rect, incidental or consequential.
- Page 2 Step 3 Wiring Select the wiring diagram through below that corresponds to the low water cut-off installed on the boiler. Consult boiler manufacturer’s instructions for proper burner terminal connections. Hydrolevel McDonnell & Miller Safgard Model 450 / CycleGard CG450 PS-800 Series –...
- Page 3 Step 4 Set the Feed Delay 30-Second 2-Minute 4-Minute 6-Minute 8-Minute 10-Minute (Factory Setting) NOTE: SELECT ONLY ONE DIPSWITCH CORRESPONDING TO THE DESIRED FEED DELAY. The feed delay feature is designed to prevent boiler flooding by allowing time for condensate to return to the boiler prior to feed- ing.
- Page 4 Feed Counter The VXT’s built-in feed counter records the number of gallons that enter the boiler during automatic feed cycles or if the FEED button is pressed.* To determine how much water has been added to the boiler since the last service, the counter should be checked, recorded, and reset each time the boiler is serviced.
Need help?
Do you have a question about the VXT-120 and is the answer not in the manual?
Questions and answers
how do i rmoveand clean the strainer on the vxt 120
To remove and clean the strainer on the Hydrolevel Company VXT-120, follow these steps:
1. Ensure the power is off to prevent electrical shock.
2. Allow the boiler to cool completely to prevent burns.
3. Locate the feed valve strainer on the VXT-120.
4. Remove the strainer after the first feed cycle to clear any contaminants introduced during installation.
5. Clean the strainer thoroughly to remove any debris or blockage.
6. Reinstall the strainer and ensure it is securely in place.
Use isolation valves and unions to make removal easier.
This answer is automatically generated

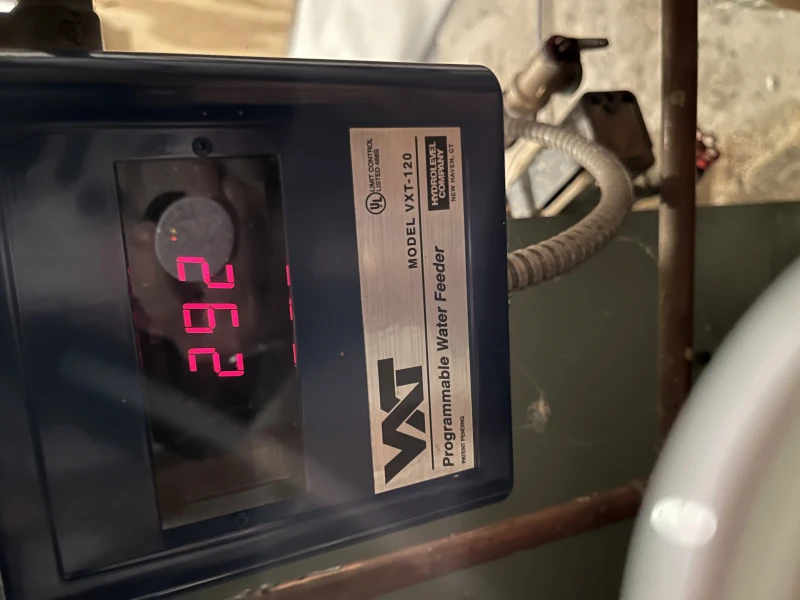

What should the display flash? Mine is 292.
