1"
~
cool
2.5-3"
warm
COOK TOP SPECIFICATIONS
Size: Ø 27-1/2" x H 3-1/8" (Ø 70 cm x 4 cm H)
~330 square inches HOT SPOT
total cooking area ~510 sq/in incl. warming
INDOOR + OUTDOOR USE |IPX4 RATED
Material: Professional Food Grade Best Alloy
German Stainless Steel type 304 (V2A)
4
mm cold pressed, hand-welded.
Built-to-last. Silk-brushed finish.
3
Power:
2
0V
/
1800
W
/
8A
3
2
0
V
/
2250
W
/
10A
3
2
0
V
/
2500
W
/
11A
Analog temperature control:
1-10 dial | 2 indicator lights | thermostat
Contact Heat:
130ºF
to
450ºF (55º-230ºC)
5 Year Limited Manufacturer Warranty.
Electrical + electronic parts:
1 year limited manufacturers'parts + labor
CE/ GS/ VDE Safety Approvals. Electrical +
Electronic Components: UL approved.
The manufacturer reserves the right to update, change, alter or discontinue any model without further notice.
27-1/2 inch Ø 70 cm
~21 inch Ø
HOT Cooking Center
1
2
3
2
4
5
"A" box
3
8
9
Ship weight 43 lbs. | ship size 36" x 31" x 7"
"B" box front plate
Ship weight 18 kg | ship size 93 x 74 x 13 cm

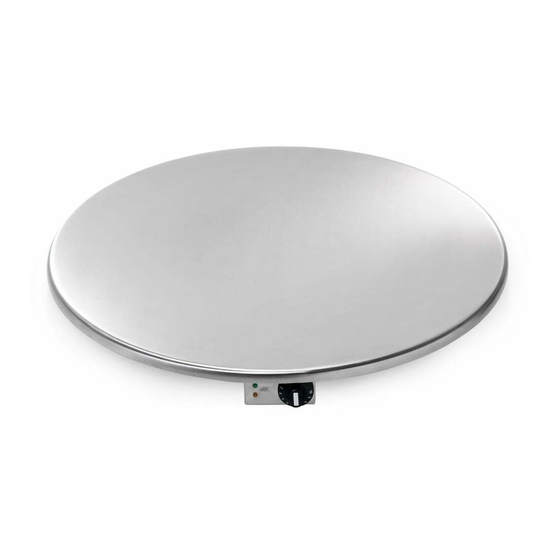

MO-70
Built-in
Indoor
PATENTED SHALLOW-DIP-TECHNOLOGY
1
4
5
3
SOLID STAINLESS STEEL GRILL TOP
CONTROL BOX "A" for open under mount
"B" faceplate w/indicator lights + dial knob
FLEXIBLE CONDUIT
STAINLESS STEEL MOUNTING BOLTS
1-3/4" stainless steel washers & nuts included
POWER CORD, 10 ft./3m included
COOKING GUIDE, included
Shown accessories not included.
or
outdoor
ULTRA
SLIM !
1-9/16"
(40 mm)
2
Shown: control "A"
Advertisement
Table of Contents
Summary of Contents for QookingTable MO-70
- Page 1 MO-70 Built-in Indoor outdoor PATENTED SHALLOW-DIP-TECHNOLOGY 27-1/2 inch Ø 70 cm ~21 inch Ø ULTRA HOT Cooking Center SLIM ! 1” 1-9/16” cool 2.5-3” (40 mm) warm COOK TOP SPECIFICATIONS Size: Ø 27-1/2” x H 3-1/8” (Ø 70 cm x 4 cm H) ~330 square inches HOT SPOT total cooking area ~510 sq/in incl.
- Page 2 MO-70 INSTALL SHEET 1 of 2 Electrical Rating: 120V |1800 Watt |15 AMP | 50-60 Hz 1.8 kWh on high (alt. 240V/1800 Watt, 8 AMP or ProStyle 2250W-240V, 10 AMP) ALWAYS Check control box label for correct voltage BEFORE plugging in! Ø...
- Page 3 An experienced stone professional will be able to advise on all aspects to watch out for, e.g. on how much counter-top (“meat”) is necessary at the narrowest point Qookingtable for the particular stone of choice to accommodate a appliance properly.
- Page 4 BUILT-IN TYPE “B” CONTROL BOX CONCEALED MOUNT CAUTION: DO NOT SNAP, PULL or TWIST THE CONDUIT DURING INSTALLATION ! ! ! Warranty will become voide if capillary tube inside the conduit is damaged during installation. Control box must be firmly fastened to a non-moving surface. interior VERY IMPORTANT NOTE: Do not open the control box or warranty expires! cabinet...
