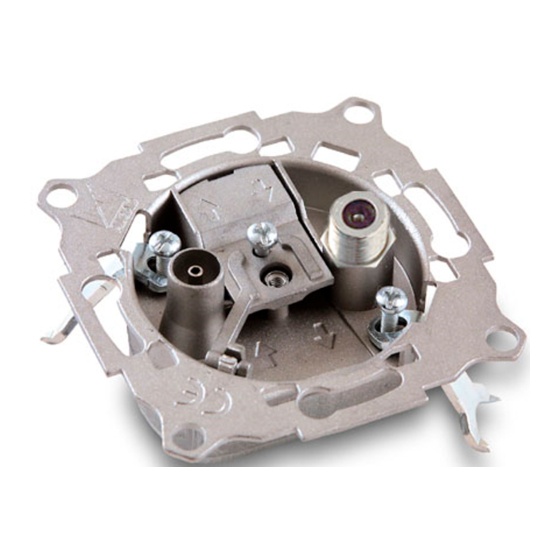

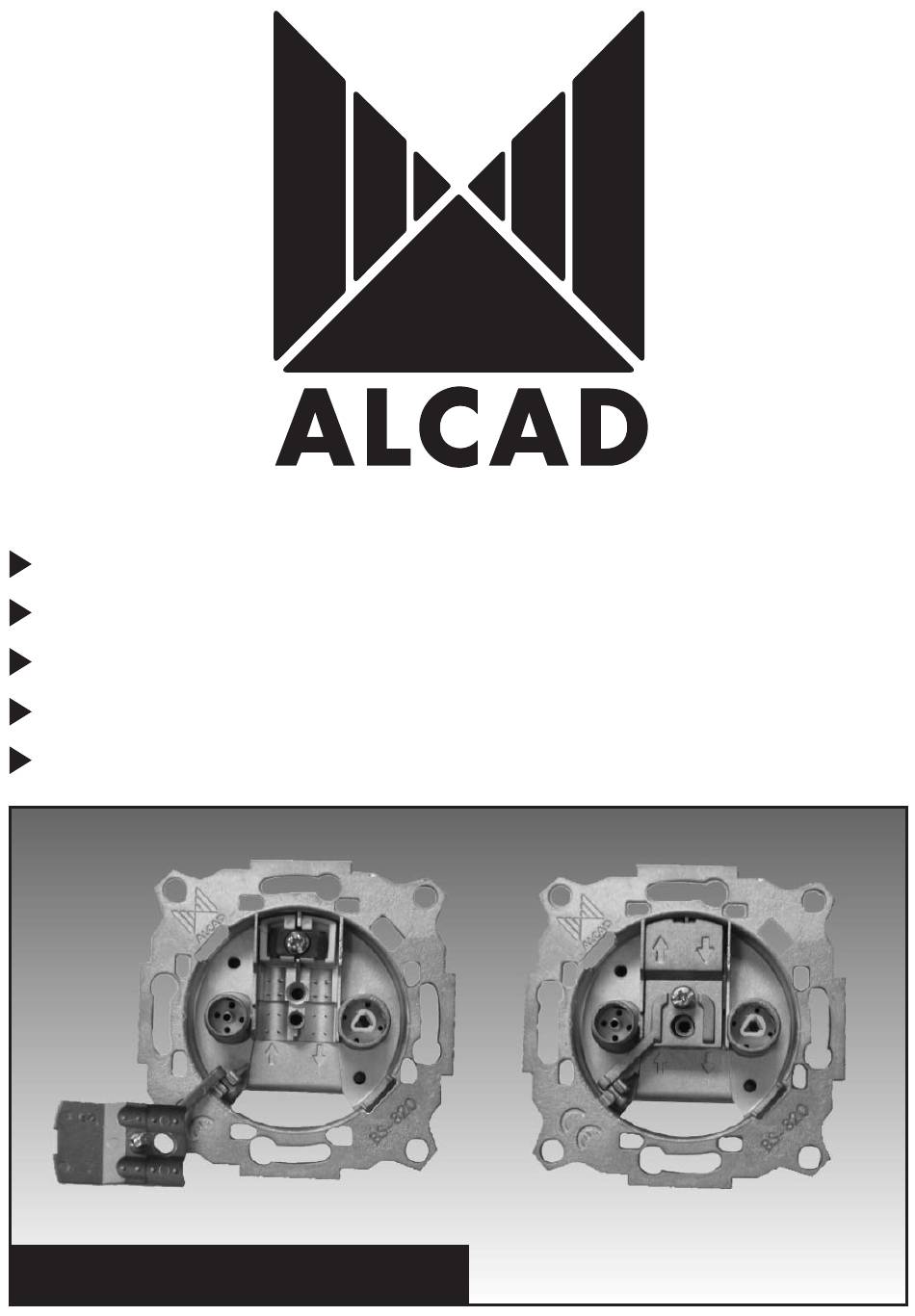

- Page 1 BASES DE TOMA TV-FM-SAT TV-FM-SAT OUTLETS PRISES TV-FM-SAT TOMADAS TV-FM-SAT TV-FM-SAT DOSEN SERIE/RANGE 907...
- Page 2 CARACTERISTICAS PRINCIPALES MAIN FEATURES PRINCIPALES CARACTERISTIQUES CARACTERISTICAS PRINCIPAIS WESENTLICHE KENNZEICHEN CODIGO-CODE-CODE-CODIGO-CODE 9070004 9070005 9070006 9070008 TIPO-TYPE-TYPE-TIPO-TYP BS-220 BS-420 BS-620 BS-820 INSTALACION FINAL INTERMEDIA INSTALLATION FINAL INTERMEDIATE INSTALLATION FINALE INTERMEDIAIRE INSTALAÇÃO FINAL INTERMEDIA INSTALLATION ABSCHLIESSEND ZWISCHEN RANGO DE FRECUENCIAS 5 - 2400 FREQUENCY RANGE 5 - 2400 GAMME DE FREQUENCE...
- Page 3 COMO CONECTAR EL CABLE COAXIAL CONNECTING COAXIAL CABLE COMMENT CONNECTER LE CABLE COAXIAL COMO CONECTAR O CABO COAXIAL VERBINDUNG EINES KOAXIALKABELS 10 mm COMO CONECTAR LA TOMA HOW TO CONNECT THE OUTLET COMMENT CONNECTER LA PRISE COMO CONECTAR A TOMADA VERBINDUNG EINES DOSES...
- Page 4 ESQUEMAS TIPICOS PARA SMATV CONNECTION DIAGRAMS FOR SMATV SCHEMAS DE CONNEXION POUR SMATV ESQUEMAS TIPICOS PARA SMATV VERDRAHTUNGSPLAN FÜR SMATV FI-473 BS-820 ° BS-820 ° BS-820 ° BS-820 ° FI-473 BS-620 ° 15 m BS-620 BS-620 ° ° BS-620 BS-620 °...
- Page 5 ACCESORIOS ACCESSORIES ACCESSOIRES ACESSORIOS ZUBEHÖR ALCAD EM-201 (COD. 9070021) TV-FM-SAT (SMATV) Carátula para base de toma Front plate for outlet Enjoliveur pour prise TV-R TV-R Caratula para tomada Dosendeckel für dose SB-003 (COD. 9070075) Suplemento para montaje en superficie Accessory for surface mounting Supplément pour montage en saillie...
- Page 6 Pol. Ind. Arreche-Ugalde, 1 Apdo. 455 20305 IRUN (Guipúzcoa) SPAIN declares that the product Product Name: 907 Series: TV-FM/TV-FM-SAT Model Number(s): BS -220, BS - 420, BS - 620, BS -820 Product Option(s): INCLUDING ALL OPTIONS is in conformity with:...
