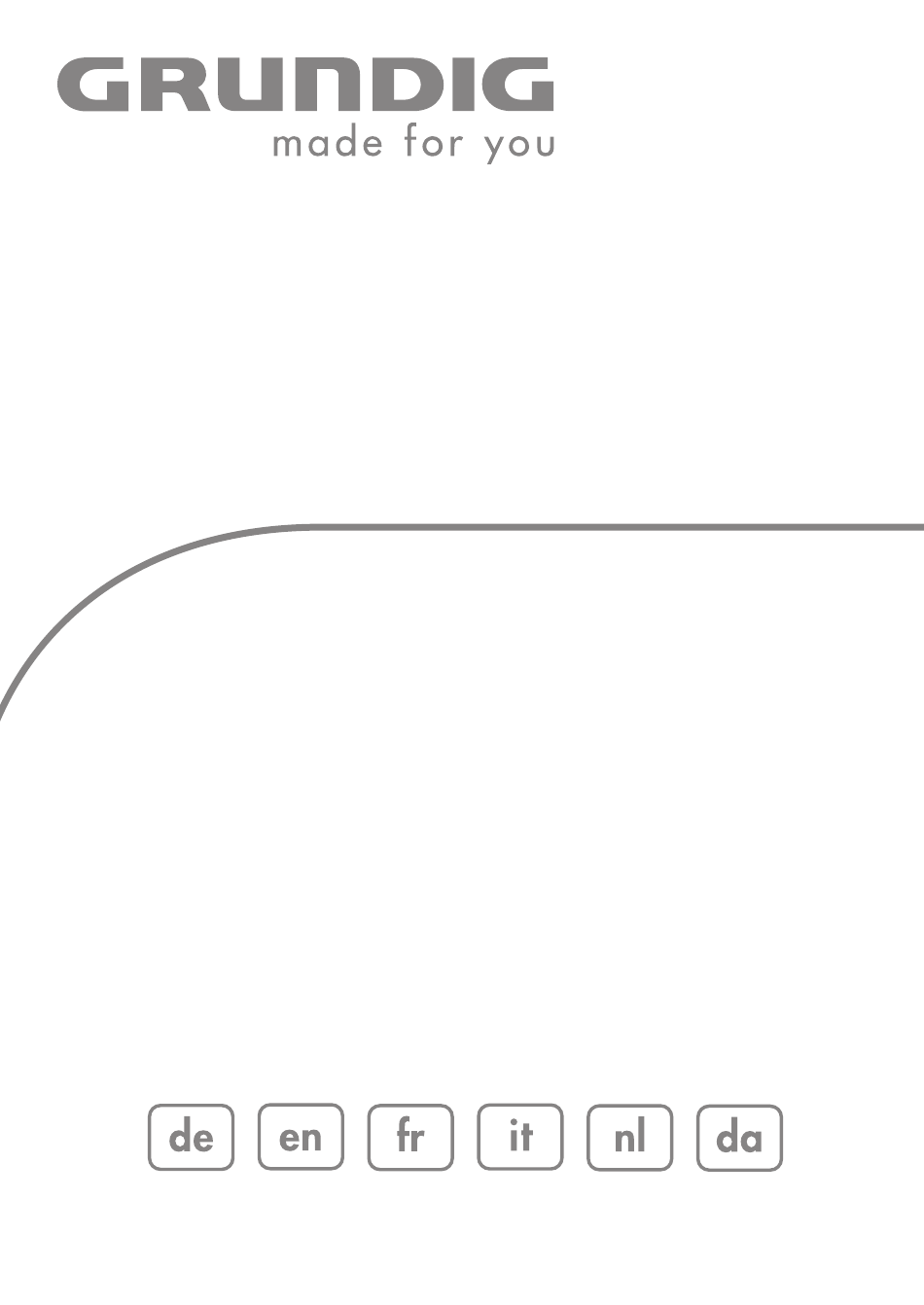

- Page 1 COLOR TELEVISION VISION 6 32-6820...
-
Page 2: Table Of Contents
CONTENTS ------------------------------------------------------------------------------------------------ SET-UP AND SAFETY CONNECTION/PREPARATION Connecting the antenna and the mains cable Inserting batteries in the remote control OVERVIEW Connections on the television Controls on the television The remote control SETTINGS Setting television channels automatically Changing stored channels Picture settings Audio settings TELEVISION OPERATION Basic functions... -
Page 3: Set-Up And Safety
SET-UP AND SAFETY ------------------------------------------------------------ Please note the following information when setting up your television set. This television set is designed to receive and display video and audio signals. Any other use is expressly prohibited. The ideal viewing distance is 5 times the screen diagonal. External light falling on the screen impairs picture quality. - Page 4 SET-UP AND SAFETY ------------------------------------------------------------ Please note when deciding where to put the device that furniture surfaces are covered by various types of lacquer and plastic, most of which contain chemical additives. These may cause corrosion to the feet of the device, thus resulting in stains on the surface of the furniture which can be difficult or impossible to remove.
-
Page 5: Connection/Preparation
CONNECTION/PREPARATION ---------------------- Connecting the antenna and the mains cable Plug the antenna cable of the rooftop antenna into the »ANT- IN« antenna socket on the television. Plug the mains cable supplied into the »AC INPUT« mains socket of the television. Plug the mains cable into the wall socket. -
Page 6: Inserting Batteries In The Remote Control
CONNECTION/PREPARATION ---------------------- Inserting batteries in the remote control Open the battery compartment by removing the lid. Insert the batteries (Mignon type, for example UM-3 or AA, 2x1,5V). Observe the polarity (marked on the base of the battery compartment). Close the battery compartment. Note: If the television no longer reacts properly to remote control commands, the batteries may be flat. -
Page 7: Overview
OVERVIEW ---------------------------------------------------------------------------------------------- Connections on the television AC INPUT Head phone connection (3.5 mm jack plug). S-VHS Video signal input for S-Video camcorder. VIDEO Video signal input for camcorder. Audio signal input for camcorder. Euro/AV socket (FBAS signal, RGB signal). Euro/AV socket (FBAS signal). PC AUDIO IN Audio signal input for PC. -
Page 8: Controls On The Television
OVERVIEW ---------------------------------------------------------------------------------------------- Controls on the television Switches the television on and back into standby mode. The only way to disconnect the television from the mains supply is to pull the plug. V+ V – Adjust the volume. Select menu functions. Opens the pre-selection for AV channels. -
Page 9: The Remote Control
OVERVIEW ---------------------------------------------------------------------------------------------- The remote control Switches off the television set (stand-by). 1...0 Switches the television on from standby mode Selects channels directly. Displays the number and name of a station; reveals answers in teletext mode. Switches between picture formats; switches to double character size in teletext mode. - Page 10 Press »AUX« and hold it down and press three numerical buttons to enter the appropriate code: »1«, »2«, »3« for a GRUNDIG DVD player. »4«, »5«, »6« for a GRUNDIG DVD recorder. »1«, »4«, »7« for a GRUNDIG digital receiver (remote control level 1).
-
Page 11: Settings
SETTINGS ---------------------------------------------------------------------------------------------------- Setting television channels automatically The television set is equipped with an automatic channel search system. You start the search and can then sort the television channels into your order of preference. 99 preset positions are provided, to which you can assign television channels from the antenna or from the cable connection. - Page 12 SETTINGS ---------------------------------------------------------------------------------------------------- Sorting television channels In the »PROGRAM TABLE« menu, select the channel to be moved with with »P+«, »P-«, » « or » «. ¥ Highlight the channel with » « (green). PROGRAM TABLE 01 ARD 06 PRO 7 11 ---- Select a new channel position by pressing »P+«, »P-«, »...
-
Page 13: Picture Settings
SETTINGS ---------------------------------------------------------------------------------------------------- Picture settings Press »i« to open the »MAIN MENU«. PICTURE – The »MAIN MENU« appears. Brightness Select »PICTURE« with »P+« or »P-« and confirm with »OK«. Contrast Colour – The »PICTURE« menu appears. Sharpness AUTO Select »Brightness«, »Contrast«, »Colour«, »Sharpness«, »DNR« Color Temperature Normal or »Color Temperature«... - Page 14 SETTINGS ---------------------------------------------------------------------------------------------------- Stereo width Widens the audio output for stereo programmes and improves the sound with mono reception. Select »Sound Mode« with »P+« or »P-«. Press » « or » « to select the setting. Automatic volume The television channels broadcast at different volumes. The automatic volume limiting (AVL) function means the volume is kept the same when you switch between channels.
-
Page 15: Television Operation
TELEVISION OPERATION ------------------------------------------ Basic functions Switching on and off Press » «, »1…0« or »P+« or »P-« to switch on the device from standby mode. Press the » « button to switch the television to standby mode. Selecting channels Use »1…0« to select channels directly. Press »P+«... -
Page 16: Zap Function
TELEVISION OPERATION ------------------------------------------ Picture settings You can select different picture settings. Select the desired picture setting from »User«, »Soft«, »Natural« or »Rich« with » «. – You can alter the »User« picture setting, see the ”Picture settings” chapter on page 13. Audio settings You can select different audio settings. -
Page 17: Changing The Picture Format
TELEVISION OPERATION ------------------------------------------ Changing the picture format The television automatically switches to the 16:9 format if this format is detected via the Euro-AV socket. Select the picture format with » «. The selected picture format, for example »16:9«, appears on the screen. –... -
Page 18: Teletext Mode
TELETEXT MODE ---------------------------------------------------------------------------- FLOF text and normal text mode Press »TXT« to switch to teletext mode. Use »1…0« to enter the page number directly or »P+« and »P-« to switch up and down pages (to return to page 100, press »i«). - Page 19 TELETEXT MODE ---------------------------------------------------------------------------- Calling up a sub-page directly If the selected teletext page contains further pages, the number of the current sub-page as well as the total number of pages is displayed. Call up the sub-pages with »S«. Press »1…0« to enter the sub-menu. Press »S«...
-
Page 20: Convenience Functions
CONVENIENCE FUNCTIONS ------------------------------ Convenience functions with the »Features« menu To open the »MAIN MENU« press »i«. Select »FEATURES« with »P+« or »P-« and confirm with »OK«. Note: Further operation is explained in the following sections. Changing the menu language FEATURES Select »Menu language«... - Page 21 CONVENIENCE FUNCTIONS ------------------------------ Activating the parental lock You can block programmes which are unsuitable for children. Select the television channel with »P+«, »P-« or »1...0«. To open the »MAIN MENU« press » «. Select »FEATURES« with »P+« or »P-« and confirm with »OK«. FEATURES Menu language English...
-
Page 22: Using External Devices
USING EXTERNAL DEVICES ---------------------------------- DVD player, DVD recorder, video recorder or set-top box Note: Which television socket(s) you connect your external devices to depends on the sockets the external device is equipped with and the signals which are available. Note that with many external devices the resolution of the video signal must be adapted to the input sockets on the television (check the external device’s instruction manual). - Page 23 USING EXTERNAL DEVICES ---------------------------------- With an analogue video signal (progressive) Video signal: YUV; resolution: standard 576p; HDTV 720p, 1080i. Audio signal: stereo, analogue. Channel position »YPBPR«. Connect the »COMPONENT INPUT VIDEO IN Y Pb Pr« sockets on the television and the corresponding sockets on the external device using cinch cables (video signal).
-
Page 24: Headphones
USING EXTERNAL DEVICES ---------------------------------- With an analog TV signal Video signal: FBAS. Audio signal: stereo, analogue. Channel position »AV3«. Connect the »VIDEO« cinch socket on the television and the corresponding socket on the external device using cinch cables (video signal). Connect the »L R«... -
Page 25: Decoder Or Satellite Receiver
USING EXTERNAL DEVICES ---------------------------------- Decoder or satellite receiver In order for the television to receive encoded programs from a privately operated station, a decoder is needed. Connecting a decoder or satellite receiver Decoder Connect the »AV1« socket on the television set and the appro- priate socket on the decoder using a EURO-AV cable. -
Page 26: Camcorder
USING EXTERNAL DEVICES ---------------------------------- Camcorder Connecting the camcorder Connect the yellow socket »VIDEO« on the television and the corresponding socket on the camcorder (VHS, Video 8) with a cinch cable (picture signal); connect the »S-VHS« socket (picture signal) on the television and the corresponding socket on the camcorder (S-VHS, Hi 8) with a S-Video cable. -
Page 27: Pc Monitor Mode
PC MONITOR MODE ---------------------------------------------------------- Connecting a PC Connect the socket »PC-IN« on the television to the correspon- ding socket on the PC using a VGA cable. Connect the socket »PC AUDIO IN« on the television to the corresponding socket on the PC using a cinch cable (audio signal). -
Page 28: Special Settings
SPECIAL SETTINGS ------------------------------------------------------------------ Setting television channels This setting is only necessary if a new channel comes on air and you do not want to change the order of your channels. The television SETUP channel can be set directly or using the search. System Channel C 03... - Page 29 SPECIAL SETTINGS ------------------------------------------------------------------ Fine tuning television channels The television automatically tunes itself to the best possible recep- tion. You may need to carry out manual fine tuning in areas where SETUP there is poor reception. System Press »i« to open the »MAIN MENU«. Channel C 03 –...
- Page 30 SPECIAL SETTINGS ------------------------------------------------------------------ Re-tuning all television channels You can re-tune all the television stations, for example if you move to another town. SETUP Select the channel with »P+«, »P-« or »1…0« , to select the System preset number from which the new television channels will be Channel C 03 Fine tuning...
-
Page 31: Information
INFORMATION ------------------------------------------------------------------------------ Technical data Operating voltage: 230V, 50 Hz Power consumption: in operation 145 W in standby approx 2 W Sound output: 2 x 20 watts music (2 x 10 sine wave) Reception range: C01 … C80, special channels S01 … S41 Preset channels: 99 and 7 AV Screen size:... -
Page 32: Troubleshooting
INFORMATION ------------------------------------------------------------------------------ Troubleshooting If the remedies given below do not work, please consult an autho- rised GRUNDIG dealer. Please bear in mind that malfunctions can also be caused by external devices such as video recorders or satel- lite receivers. Fault... -
Page 33: Additional Information For Units Sold In The Uk
INFORMATION ------------------------------------------------------------------------------ Additional Information for units sold in the UK. Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply. The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries. - Page 34 Grundig Multimedia B.V. Atrium, Strawinskylaan 3105 • NL-1077 ZX Amsterdam • http://www.grundig.com...
