- Page 1 D10 PARROT ANAFI D10 PARROT ANAFI LIGHTING SYSTEM LIGHTING SYSTEM P/N 700-314 | P/N 700-316 P/N 700-315 | P/N 700-317 PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Overview Physical Characteristics Reference Guide 4 - 5 BATTERY Charging the Battery OPERATIONAL MODES Operational Modes Modes, Output, & Battery Life INSTALLATION 7 - 8 WARNINGS/WARRANTY CARE/CLEANING CONTACT FOXFURY... -
Page 3: Overview

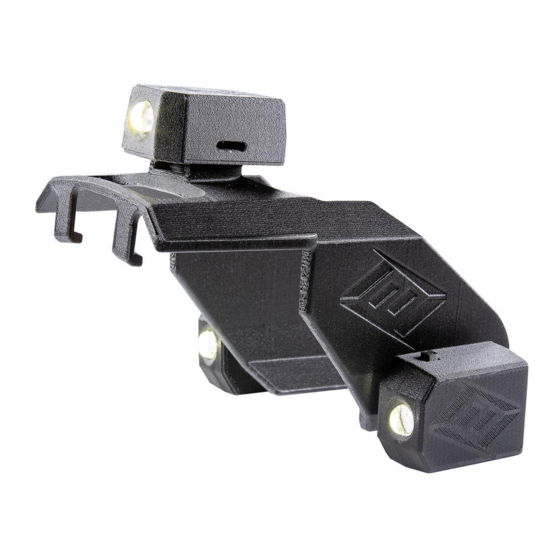

OVERVIEW The D10 is a multi-function utility light that is proudly made in the USA. It mounts to most drones and helmets via a snap lock feature. It is present in Drone Saddles, and other optional D Series Mount Set. The D10's 30° LED operates on continuous or strobe light modes. -
Page 4: Reference Guide
WHAT'S INCLUDED P/N 700-314 | P/N 700-316 D10 White Light x 3 (P/N 700-314) OR IR Light x 3 (P/N 700-316) D10 Parrot ANAFI Thermal Saddle x 1 Micro USB Cable x 3 P/N 700-315 | P/N 700-317 D10 White Light x 3 (P/N 700-315) OR IR Light x 3 (P/N 700-317) - Page 5 Do not stare into the LEDs for long periods of time or from a close range (less than 2 ft/0.6 m). While using any FoxFury product, please operate at safe speeds. It is the responsibility of drone/UAV users to follow the FAA laws and regulations...
-
Page 6: Battery
BATTERY CHARGING THE BATTERY Connect the provided Micro USB Cable to the Charging Port, and to a USB source. While charging, a green light will blink. Once charged, the green light will remain steady on. Charge time should be approximately 2.5 hours. WARNING: Unplug the light once charged to avoid impacting battery life. -
Page 7: Installation
INSTALLATION Align the bottom of the D10 with Saddle snap lock location and snap all D10 units in place. Spin them and tug to make suer they are properly attached. Take the Saddle with lights installed, and mount on the ANAFI, as shown below (lights are removed for simplicity). - Page 8 INSTALLATION Press down on the body . The Saddle side arms will spread and hug the belly of the ANAFI. The saddle should feel snug as it wraps around the body . NOTE: You can recharge the D10 units by either removing them from the saddle, or keeping them installed, and plugging the Micro USB to them.
- Page 9 NOTES...
-
Page 10: Warnings/Warranty
FoxFury reseller/distributor WARNINGS or if the product was used, (including but not limited to demo models, show FoxFury , LLC is not responsible for the models or refurbished product by incorrect use of any FoxFury Lighting someone other than FoxFury) prior product. -
Page 11: Contact Foxfury
Oceanside, CA. All FoxFury products are manufactured with the highest quality USA and foreign parts. Products are assembled in either FoxFury’s controlled plant in Asia or the USA, under strict quality control. CALIFORNIA PROPOSITION 65 This product can expose you to... - Page 12 FOXFURY .COM 10/2020...
