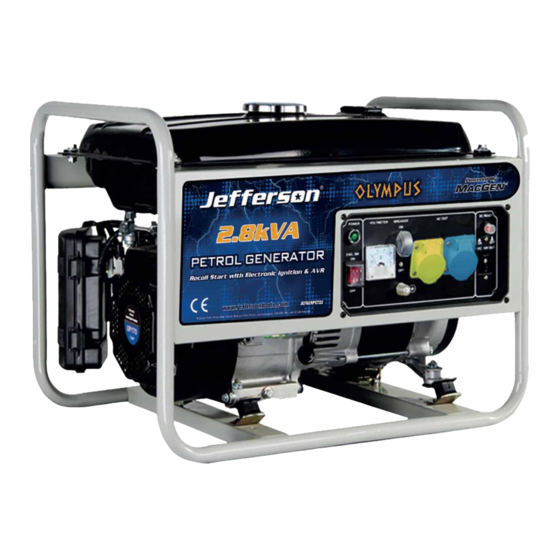

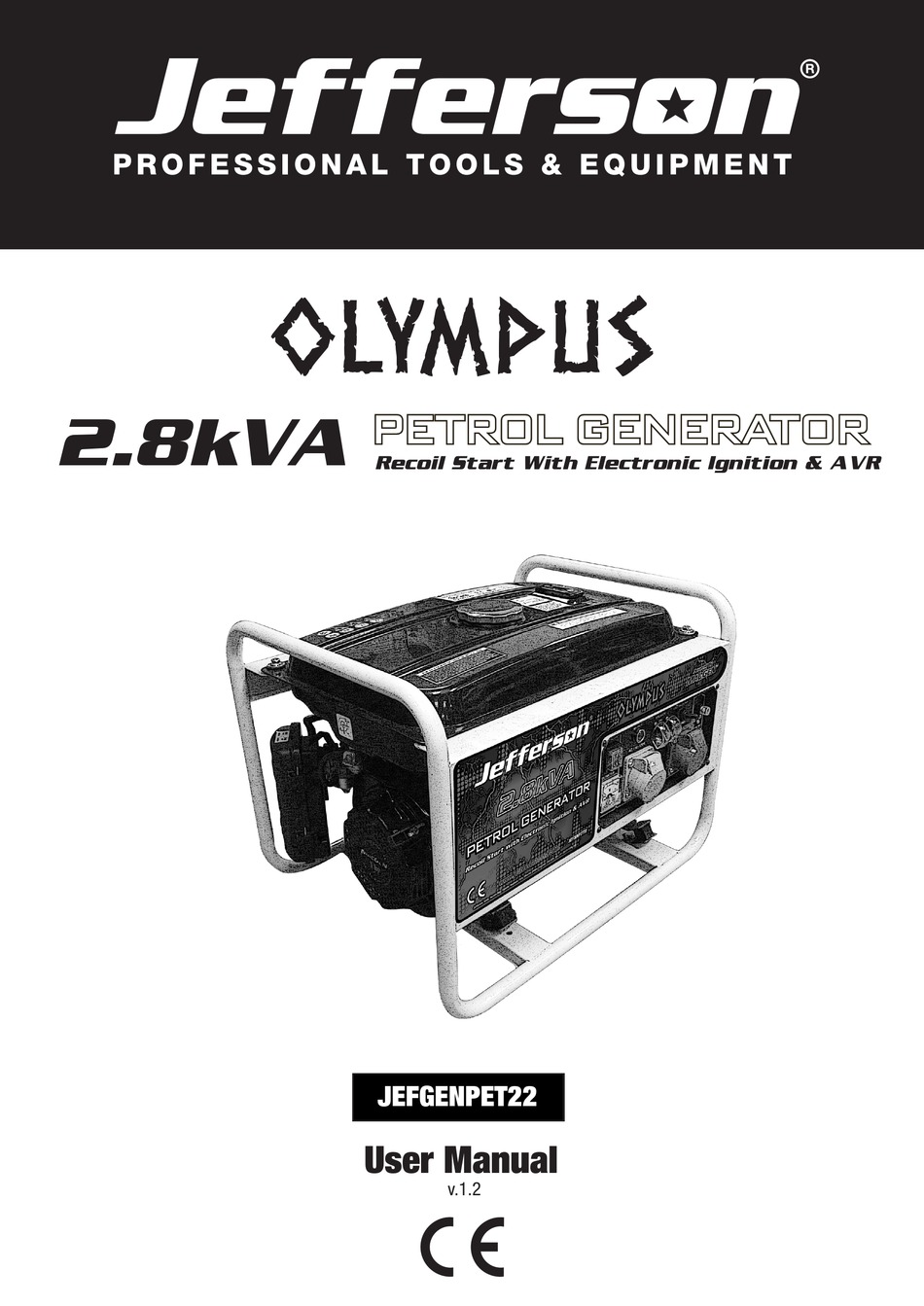

- Page 1 OLYMPUS OLYMPUS 2.8kVA Recoil Start With Electronic Ignition & AVR JEFGENPET22 User Manual v.1.2...
-
Page 2: Table Of Contents
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 1. Contents 1. Contents 2. Parts Identification 3. Safety Information 4. Checking the Generator Prior to Use 5. Starting the Generator 6. Connecting Consumers to the Generator 7. Stopping the Generator 8. Transportation and Storage 9. -
Page 3: Safety Information
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 3. Safety Information 1. The exhaust gas is poisonous, never use a generator indoors or in an attached garage. Always run your generator outdoors in a well-ventilated area. Keep the generator at least 1 meter (3 feet) away from buildings and other equipment during operation. -
Page 4: Checking The Generator Prior To Use
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 4. Checking the Generator Prior to Use • Check the fuel level and top up with unleaded petrol if necessary. Do not overfill the fuel tank (there should be no fuel in the filler neck). •... -
Page 5: Connecting Consumers To The Generator
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 6. Connecting Consumers to the Generator 1. Connect the machine you want to use to the AC socket. Note: Do not exceed the specified load limit of the specified maximum AC output. 2. Do not connect the generator to the household network as this may result in damage to the generator itself or to other electrical appliances in your home. -
Page 6: Maintenance
The chart below indicates the maintenance checks you should make on your generator parts and the frequency that these checks should generally be carried out. Note: You can contact your nearest Jefferson dealer for help and advice and a full list of replacement parts. -
Page 7: Troubleshooting
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 10. Troubleshooting Symptom Possible Cause Action Not enough fuel oil Add fuel - see section "4. Checking Generator Prior to Use" Fuel nozzle cannot inject fuel or there is not Repair the fuel injector enough fuel Engine won't start The speed control lever is not in the "Run"... -
Page 8: Parts List & Diagram
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 12. Parts List and Parts Diagram Code Description Code Description 012030000035 Engine 512040800001 flange nut M8 029030200301 190 front end cover 513010800001 flat washer ø 8 062024220007 Rotor 513020800002 spring washer ø 8 062024230011 Stator 510020802501 flange bolt M8X25 (with flat washer... - Page 9 USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 www.jeffersontools.com...
-
Page 10: Circuit Diagram
USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 13. Circuit Diagram www.jeffersontools.com... -
Page 11: Limited Warranty Statement
Upon inspection of the equipment, if no defect can be found or the equipment is not covered under the terms of the Jefferson warranty, the customer will be liable for any labour and return transportation costs incurred. - Page 12 Any claims against a third party courier will be dealt with under the terms & conditions of their road haulage association directives. Please note: Jefferson will be unable to collect or process any warranty requests without a copy of the original proof of purchase.
- Page 13 Where parts are not immediately available Jefferson will contact you with a revised date for completion of the repair. General Warranty Enquiries For any further information relating to Jefferson warranty cover please call +44 (0) 1244 646 048 or send your enquiry via email to warranty@jeffersontools.com Parts &...
-
Page 14: Ec Declaration Of Conformity
Technical file holder's address as shown below Name and address of manufacturer or authorised representative: Jefferson Tools, Herons Way, Chester Business Park, Chester, United Kingdom, CH4 9QR Telephone: +44 (0)1244 646 048 Fax: +44 (0)1244 241 191 Email: enquiries@jeffersontools.com www.jeffersontools.com... - Page 15 USER MANUAL 2.8kVA Petrol Generator JEFGENPET22 14. Notes www.jeffersontools.com...
- Page 16 Before attempting to use this product please read all the safety precautions and operating instructions outlined in this manual to reduce the risk of fire, electric shock or personal injury. Jefferson Tools, Herons Way, Chester Business Park, Chester, United Kingdom, CH4 9QR Tel.
