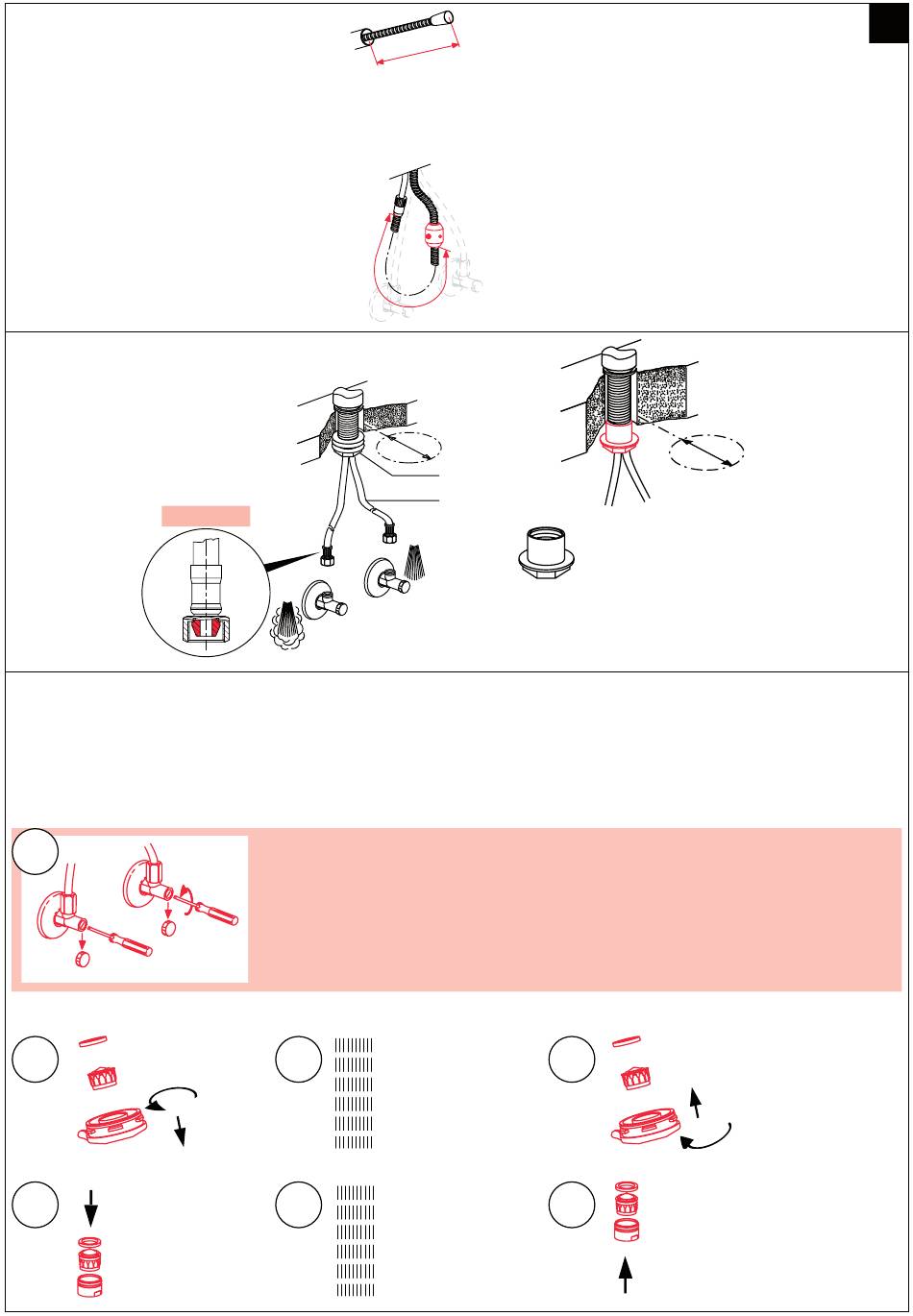

KWC DECO 10.031.033 Installation And Service Instructions Manual page 5

Montage des Schlauchstop's
Montage du stop
Montagio del stop
Montaje del stop
Installation of limit stop
Befestigung
EU/AUS
Fixation
Fissaggio
Fijación
Connection
USA/CAN
Inbetriebsetzung
Mise en service
Messa in funzione
Puesta en servicion
Initial operation
1
2
2
c
c = 700 mm, 27 9/16"
d = 500mm, 19 11/16"
d
Kalt- und Warmwasser öffnen.
Ouvrir eau froide et chaude.
Aprire acqua fredda e calda.
Abrir la salida de agua fría y caliente.
Open cold and hot water.
D spülen
3
F rincer
I sciacquate
Sp enjuagar
E flush
D spülen
3
F rincer
I sciacquate
Sp enjuagar
E flush
ø35mm /
1 3/8"
S36
Radius min.
= 50mm / 2"
Verlängerungsmutter L= 40mm
Ecrou allongé L= 40mm
Dado prolungato L= 40mm
Tuerca de prolongación L= 40mm
Z.503.315
Extension nut L= 40mm / 1 1/2"
4
4
5
ø36mm /
1 7/16"
