Ensure to avoid shadowing from module clamps. Please
refer to figure 4 and figure 6, and paragraph 3.2.4
„Loading capacity" for details on the individual product
series.
Nut
Spring washer
Flat washer
Clamp
Bolt
Clamp B
PV module
Frame
Mounting
rails

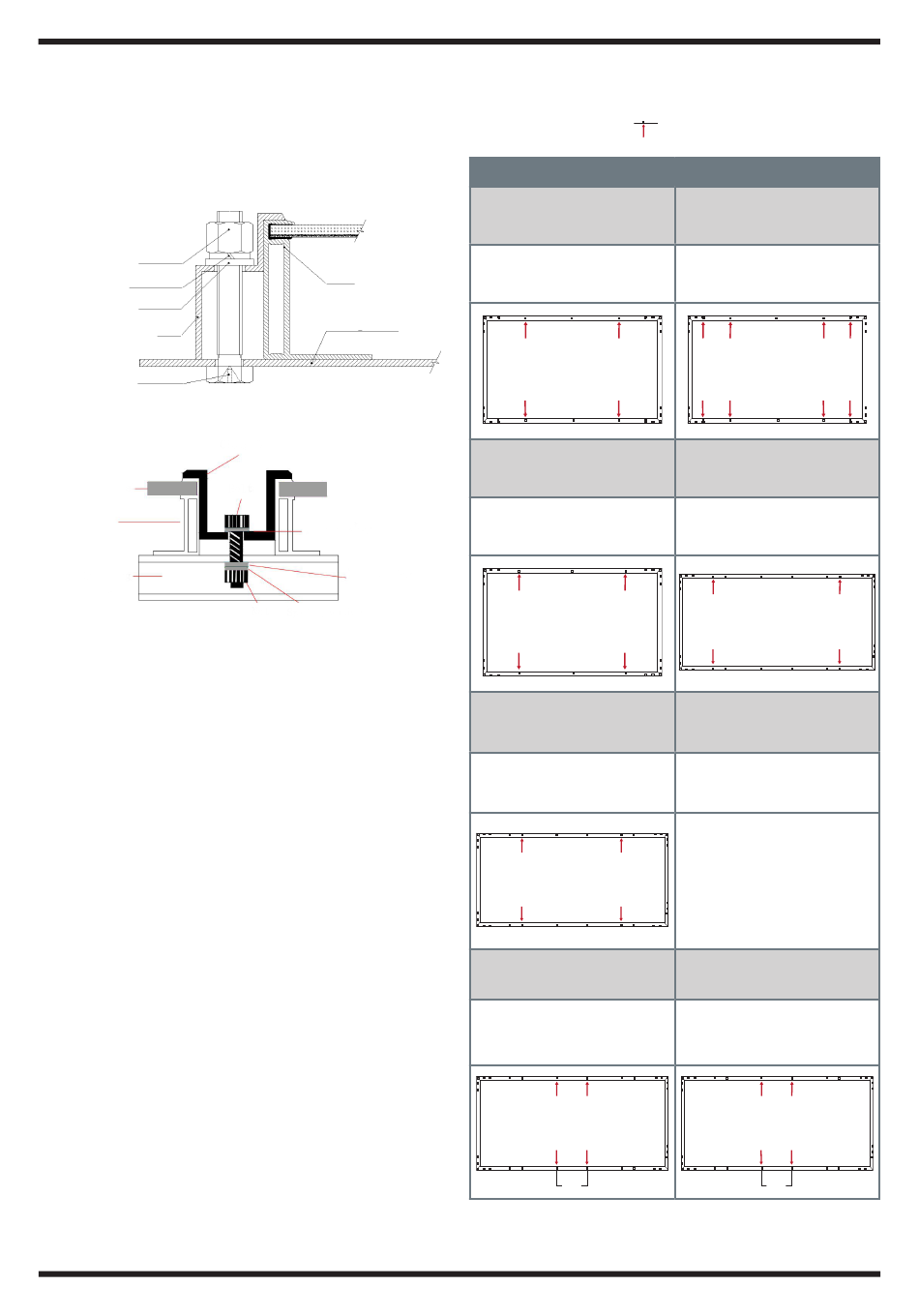

Figure 4: Clamping

3.2.3 Insertion systems

AEG solar modules are compatible with the insertion
systems of selected manufacturers. For more
information, and for a compatibility assessment of the
insertion system you wish to use, contact the AEG
service team (see Section 6 „Contact").

3.2.4 Loading capacity

The PV module's load resistance is rated as:
Wind load: 2400 Pa / Snow load: 5400 Pa.
Please note this could vary according to the different
mounting systems and configurations.
For standard conditions, low loading capacity applies:
AEG modules are tested under a maximum positive
pressure of 2400 Pa, and negative pressure of 2400 Pa.
For extreme conditions (e.g.: heavy snow), high loading
capacity applies: AEG modules are tested under a
maximum positive pressure of 5400 Pa, and negative
pressure of 2400 Pa.
AEG STANDARD MODULE INSTALLATION MANUAL
PV module
Mounting structure
Bolt
Flat washer
Flat washer
Nut
Spring washer
Please note the indications in the below pictures:
L = module length (module long side)
W= module width (module short side)
X, Y= clamp installation point
Mounting with bolts
Module series:
AS-Mxxx2,
AS-Mxxx9, AS-Pxxx9
Load:
positive 2400Pa
negative 2400 Pa
Module series:
AS-M1203 (G1),
AS-M1203 (M6)
Load:
positive 5400Pa
negative 2400 Pa
Module series:
AS-M1443 (G1),
AS-M1443 (M6)
Load:
positive 2400Pa
negative 2400 Pa
Module series:
AS-M1443 (G1)
(Pitch bolt) Load:
positive 2400Pa
negative 2400 Pa
400 mm
Figure 5: Bolting, loading capacity scheme
(arrows) bolting/clamping points
Module series: AS-Mxxx2,
AS-Mxxx8, AS-Pxxx8,
AS-Mxxx9, AS-Pxxx9
Load
positive 5400 Pa
negative 2400 Pa
Module series:
AS-M1443 (G1),
AS-M1443 (M6)
Load
positive 5400 Pa
negative 2400 Pa
Module series:
AS-M1443 (M6)
(Pitch bolt) Load:
positive 2400Pa
negative 1700 Pa
400 mm
EN GD202008 V1-20
