Summary of Contents for bluefin BrightSign 3008 Series
- Page 1 BrightSign Built-in Manual & Specifications 3008 Series / Version 3.0 / November 11 , 2019...
-
Page 2: Table Of Contents
Absolute maximum ratings .................. 14 Installation and Safety ............15 Choosing a Location .................... 15 Mounting ......................15 Safe Operating Temperature ................16 Recessed Mounting ..................... 16 Support ................17 BrightAuthor Support ................... 17 Bluefin Support ....................17 Limited Warranty ....................17... -
Page 3: Overview

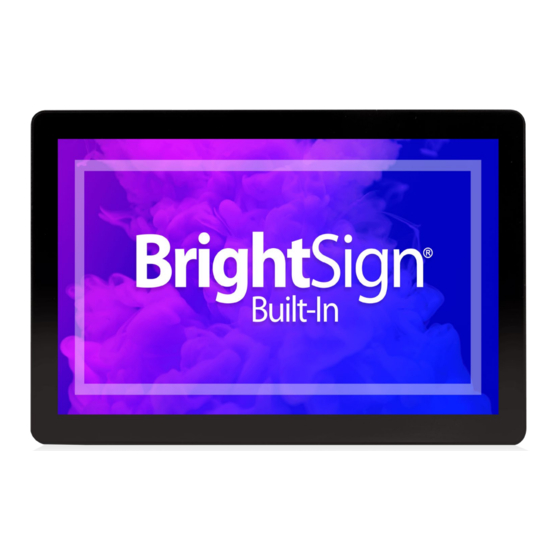

Overview BrightSign Built-In screens offer the power of a BrightSign HD media player and the dependability of an industrial style LCD screen in a single unit built for convenience. Screens are available in two form factors; Finished screens designed with a sleek exterior for wall mounting, and Frameless screens which can be built into kiosks and point of purchase displays. -
Page 4: Brightauthor And Configuration
BrightAuthor and Configuration BrightAuthor Setup BrightAuthor is a free content management and publishing desktop application which can be used to configure players and upload playlists of scheduled content to one, or a network, of players. To download BrightAuthor, visit: https://www.brightsign.biz/downloads/dsm-series And download the most recent official release. -
Page 5: Brightsign Player Setup
BrightSign Player Setup To set up a BSBI player, navigate to Tools from the menu, and select Setup BrightSign Unit. Under Name Specification, select a name for your player. Select “Use name only” to display only the selected name during local network publishing, or “Append unit ID” to insert the player’s unique ID at the end of its name. -
Page 6: Brightsign Player Publishing
BrightSign Player Publishing To publish a BrightAuthor presentation, navigate to the Publish Tab. Select your publishing method from directly underneath the Publish tab, either Local Storage, Local Network, or Simple File Network Browse to the folder containing your project. Select your project from the list. By default, the selected presentation will display always, indefinitely. -
Page 7: Brightsign Firmware Update
BrightSign Firmware Update For players which have not been published to before, or if you have downloaded a new version of BrightAuthor, select “Specify Firmware Update” below your publishing options. 1. Ensure the Update type at the top is set to “Standard” 2. -
Page 8: Controlling Room Scheduler Led's
Controlling Room Scheduler LED’s These Instructions only apply to the BSBI Room Scheduler Screen. The Room Scheduler unit comes with four LED strips on the sides of the screen, which can display in green or red. These LED’s can be controlled via the GPIO commands in BrightAuthor. -
Page 9: Screen Menu
Screen Menu The screen menu provides configuration options for the monitor outside of BrightSign’s configurations. This includes color correction, brightness, and CEC controls. To enter the menu, press the MENU key four times. (Note: If you received your screen before August 2018, the sequence may be MENU UP UP UP) Use the UP and DOWN buttons to navigate up and down, and the VOL- and VOL+ to navigate left and right respectively. -
Page 10: Ports
Ports Power in CN1: DC 12V Molex 4 pin input DEFINATION DESCRIPTION +12V DC Power supply Ground +12V DC Power supply Ground Ethernet RJ45 ethernet. POE+ power input on applicable screens up to 19.5’’. POE++ power input on applicable screens up to 32.0’’ Micro SD Micro SD card slot. - Page 11 Wi-Fi / Bluetooth M.2 (E) Keyed Wi-Fi/Bluetooth connector External antenna connector optional Audio 3.5mm Audio Out (Analog and Digital) Power out /LED J10: DC 12V 6 pin output DEFINATION DESCRIPTION VDD12V VDD12V VDD12V VDD12V VDD12V VDD12V Update Update port for LCD chipset...
- Page 12 GPIO CON4: general input and output with power supply PIN1-6 from left to right have the following definition. DEFINATION DESCRIPTION 3.3V 3.3V GPIO GPIOX0 GPIO GPIOX1 GPIO GPIOX2 GPIO GPIOX3 Serial port 3.5mm RS-232 Serial Port BrightSign infrared remote-control input SPK L / R Amplified audio L / R output to 3W speaker –...
-
Page 13: Player Specifications
Player Specifications Video Engine Decoder: Single 1080p60 video decoding Media Formats: Video Codecs: H.265, H.264 (MPEG-4, Part 10) MPEG-2, MPEG-1 Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv Images: BMP, JPEG, PNG Audio: MP2, MP3, AAC, WAV (AC3 Pass Through) HTML5: Mainstream Support Hardware Capable Interfaces: External micro SD Slot. -
Page 14: Screen Specifications
Screen Specifications Parameters Type Description Power Supply +12V/24V @2A-5A Audio Out 3.5mm Digital and Analog Ethernet 1000BASE-T SD/microSD 4-bit transfers, UHS-1 up to DDR50 USB 2.0 1x High Speed USB 2.0 LCD resolution 1920x1080 Brightness >250 nits Viewing angle >85 Absolute maximum ratings Parameters Value... -
Page 15: Installation And Safety
Installation and Safety Choosing a Location Do not install the display in a location where a door or object could hit it. Do not install the display in an area where it will be subjected to strong vibrations or dust. Do not install the display near strong light sources such as sunlight or strong overhead lighting. -
Page 16: Safe Operating Temperature
Safe Operating Temperature BrightSign Built-In Screens require airflow in order to cool the HS124 chipset. Failure to provide enough airflow can cause the unit to reach temperatures above 50 degrees Celsius, which may cause areas of permanent LCD discoloration. To maintain a safe operating temperature: Figure A Provide a minimum of 6.35mm (.25’’) between the back of the unit and the... -
Page 17: Support
1 year from date of shipment from Bluefin. During this period, Bluefin will at its option, repair or replace this product at no additional charge to the purchaser except as set forth below. - Page 18 It is the customer's responsibility to back up the contents of their hard drive, including any data you have stored or software you have installed on the hard drive. Bluefin shall not be responsible for i) any loss of data due to storage media failure, ii) for any software programs, data or other information stored or used on any media or part of any product returned to Bluefin for warranty and non-warranty servicing.
