- Page 1 Screen House & accessories • Full item instructions and extended details •...
- Page 2 Page: 2 Screen House and accessories instructions Thank you for purchasing this product. At Quest we take every care to ensure that the product fulfils your expectations. We hope you enjoy using this product General Use Failure to follow the general use instructions below could lead to damage to the screen house or injury to your person.
-
Page 3: Read Before Use
Page: 3 Screen House and accessories instructions Read Before Use Extra information to ensure the safe and successful use of your screen house All Models When erecting the screen house , always ensure the roof joint (the large black steel joint) is on the floor and never in the air as this can lead to turning the screen house inside out. -
Page 4: Frame Diagrams
Page: 4 Screen House and accessories instructions Frame Diagrams Frame diagrams for all screen house models Screen House 4 Roof Frame Diagram Code: 120053 • Diagram Version 1 Roof poles 11mm diameter Solid Fibreglass Pole end caps (hub end) Pole end caps (sleeve end) Roof hub 2 Pieces... - Page 5 Page: 5 Screen House and accessories instructions Frame Diagrams Frame diagrams for all screen house models Screen House 4 Roof Frame Diagram Code: A3000 • Diagram Version 1 Roof poles 11mm diameter Solid Fibreglass Pole end caps (hub end) Pole end caps (sleeve end) Roof hub 2 Pieces...
- Page 6 Page: 6 Screen House and accessories instructions Frame Diagrams Frame diagrams for all screen house models Screen House 6 Roof Frame Diagram Code: 120051 • Diagram Version 1 Roof poles 11mm diameter Solid Fibreglass Pole end caps (hub end) Pole end caps (sleeve end) Roof hub 2 Pieces...
- Page 7 Page: 7 Screen House and accessories instructions Frame Diagrams Frame diagrams for all screen house models Screen House 6 Roof Frame Diagram Code: A3001 • Diagram Version 1 Roof poles 11mm diameter Solid Fibreglass Pole end caps (hub end) Pole end caps (sleeve end) Roof hub 2 Pieces...
- Page 8 Page: 8 Screen House and accessories instructions Wear , Tear and Usage The screen house is used outdoors and thus will be subject to standard wear and tear caused by the weather and other external influences. This section lists some, but not all of the standard wear and tear you may get with your screen house.
- Page 9 Page: 9 Screen House and accessories instructions Storage , Care and Cleaning Details on how to look after your product. Storage To help keep your product looking newer for longer and prolong the life and use of the product, we recommend that the product is covered when not in use.
-
Page 10: Folding And Unfolding
Page: 10 Screen House and accessories instructions Folding and Unfolding Details on how to use your product. Erecting your Screen House • Remove the screen house from the carry bag and place onto the ground. • Stand the screen house up with the large black centre hub placed on the ground and allow the legs to open and lie on the ground. - Page 11 Page: 11 Screen House and accessories instructions Folding and Unfolding Details on how to use your product. Taking the screen house down • The screen house should not be taken down in high winds as it could cause damage when the storm straps and pegs are removed.
- Page 12 Page: 12 Screen House and accessories instructions Folding and Unfolding Help if you turn your screen house inside out. Turning your screen house inside out Unfortunately sometimes accidents can happen and we have seen a small number (1 or 2 a year) of users can turn their screen house inside out.
- Page 13 Page: 13 Screen House and accessories instructions Folding and Unfolding Help if you turn your screen house inside out. image 1 image 2 image 3 image 4...
- Page 14 Page: 14 Screen House and accessories instructions Optional Extras - Side Walls How to fit the optional side walls. You can purchase additional side wall blinds for your screen house (not Pro models as they have them built in), which attach to the outside of your screen house and give you extra privacy, cover and protection.
- Page 15 Page: 15 Screen House and accessories instructions Optional Extras - Pro Canopy How to fit the optional Pro Canopy. You can purchase a front canopy for your Screen House Pro, which gives you a covered canopy area to the front of the screen house. The canopy goes on the front accessory zip on your Screen House Pro.
-
Page 16: Connection Methods
Page: 16 Screen House and accessories instructions Optional Extras - Vehicle Connector How to fit the optional vehicle connector. You can purchase a vehicle connector for your Screen House 4 Pro, which gives you a covered walkway between your Screen House 4 Pro and a vehicle. The vehicle connector goes on the front accessory zip on your Screen House 4 Pro. - Page 17 Page: 17 Screen House and accessories instructions Optional Extras - Vehicle Connector How to fit the optional vehicle connector. Connection Methods (continued) You can connect to your vehicle using various different methods. Some of which are listed below, but they are all optional. It is best to try a few different methods and find out which is best for you as each method has its advantages and disadvantages.
-
Page 18: Warranty Claim
Page: 18 Screen House and accessories instructions Warranty Details on the warranty that comes with your product. Warranty : 12 Months (1 Year) warranty. Warranty Claim • In the unlikely event of a warranty claim, you must contact your retailer. •... - Page 19 Page: 19 Screen House and accessories instructions Registration You can register your Screen House online at https://www.questleisure.com/register or fill out the form below and send it into Quest : Model Your Purchase Name Date Your Retailers Email Name Your Retailers Address Address Additional...
- Page 20 Page: 20 Screen House and accessories instructions Screen Houses Screen Houses The original one person, one minute shelter, and still the best. We have been producing the Screen House for over 6 years, longer than any others. In that time we have been improving the Screen House all the time and it means that it is the best, quickest, strongest and longer lasting than its rivals.

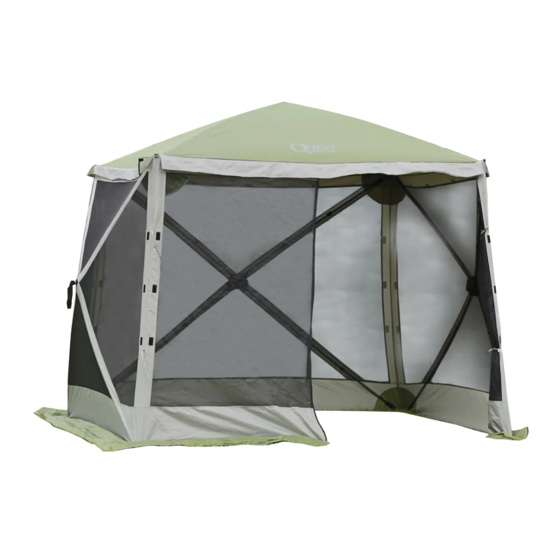

- Page 21 Page: 21 Screen House and accessories instructions Screen House 4 Cat No 120053 The original Screen House 6. Called a 4 as it has 6 sides, this can easily be erected by a single person in under a minute. Full mesh sides built in to stop insects and combat wind chill, but allow air flow. Cooler in the sun and warmer in the wind, its the perfect quick up shelter.
- Page 22 Page: 22 Screen House and accessories instructions Screen House 6 Cat No 120051 The original Screen House 6. It is the larger cousin of the Screen House 4 and has 6 sides, but can still easily be erected by a single person in under a minute. Full mesh sides built in to stop insects and combat wind chill, but allow air flow.
- Page 23 Page: 23 Screen House and accessories instructions Screen House 4 Pro Cat No A3000 Based on the Screen House 4, the PRO version takes it two steps further. Firstly it has all the same features as the Screen House 4 and is just as easy to erect, but then it adds : •...
- Page 24 Page: 24 Screen House and accessories instructions Screen House 6 Pro Cat No A3005 Based on the Screen House 6, the PRO version takes it three steps further. Firstly it has all the same features as the Screen House 6 and is just as easy to erect, but then it adds : •...
- Page 25 Page: 25 Screen House and accessories instructions Screen House Mini Cat No A5503 The screen house mini, is as its names implies a mini version of the screen house. Using the same premium hub system and a smaller frame it is still extremely easy to use and pitch, it can easily be erected by a single person in under a minute.
- Page 26 Page: 26 Screen House and accessories instructions Instant Utility , Toilet and Shower Cat No 120010 Whilst not strictly a screen house the instant utility is another extremely easy unit to pitch. This uses the excellent zero tension frame, which again means there is nothing to put together, nothing to inflate and nothing to tension.
-
Page 27: Side Walls
Page: 27 Screen House and accessories instructions Accessories A few little extras to add to your product. Side Walls Cat No 120054G (Screen House 4) : 120052G (Screen House 6) Adds privacy and extra protection to your Screen House (4 and 6 only). They simply clip into each corner and velcro in place. - Page 28 Page: 28 Screen House and accessories instructions Accessories A few little extras to add to your product. Screen House Pro Canopy Cat No A5504 This is an accessory for your screen house pro (fits both 4 and 6). It is a large canopy that simply zips onto the front of your screen house and gives you a large covered area to the front of your screen house..
- Page 29 Page: 29 Screen House and accessories instructions Accessories A few little extras to add to your product. Screen House Pro 4 Vehicle Connector Cat No A5505 This is an accessory for your the Screen House 4 Pro. Again this simply zips onto the front of your Screen House 4 pro and allows you to connect your screen house 4 pro to your vehicle.
- Page 30 Page: 30 Screen House and accessories instructions Accessories A few little extras to add to your product. Screen Shield (1 panel) shown attached to Screen Shield (3 panel) Screen Shield (1 panel) Cat No A5510 This is an additional panel/windbreak for your screen house pro (fits both 4 and 6). The screen shield is available in 1 panel or 3 panel lengths and zips directly to your screen house pro, or it can be used on its own (when used with at least 1 screen shield (3 panel)).
- Page 31 Page: 31 Screen House and accessories instructions Accessories A few little extras to add to your product. Screen Shield (1 panel) and Screen Shield (3 panel) shown attached to Screen House Screen Shield (3 panel) Cat No A5512 This is an additional panel/windbreak for your screen house pro (fits both 4 and 6). The screen shield is available in 1 panel or 3 panel lengths and zips directly to your screen house pro, or it can be used on its own (when used with at least 1 screen shield (3 panel)).
- Page 32 www.questleisure.com twitter.com/questleisure facebook.com/questleisure youtube.com/questleisure Template Version : 4 • Instruction Version : 6...
