INSTALLATION

• A secondary switch, with contact distance >3mm, shall be installed before connection to the main power.
• This product must be earthed.
• This is an IP22 electrical appliance, which shall not be installed near water. Power shall be cut off before installation
or maintenance.

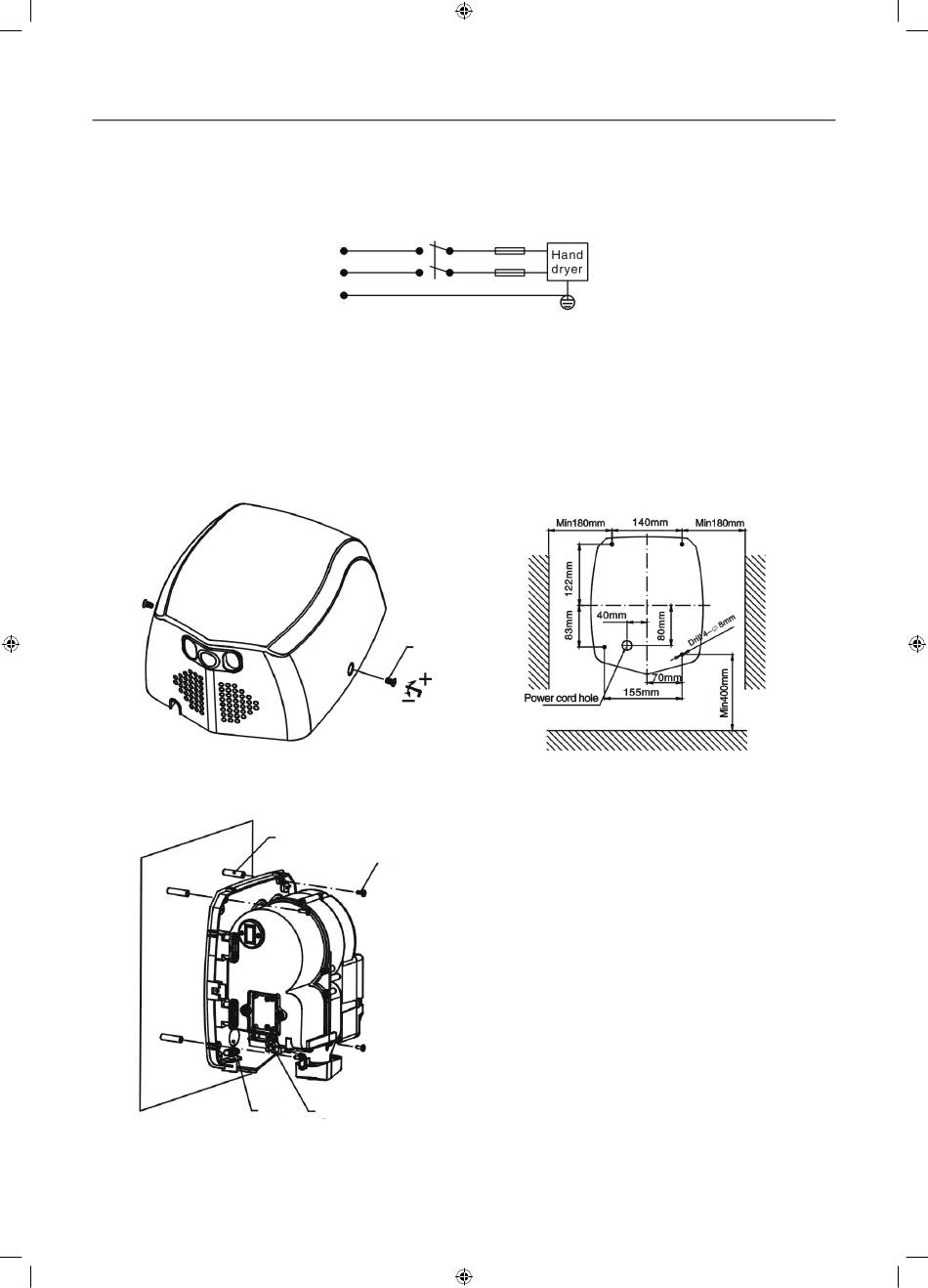

1. As showed in Fig. 2, remove screws at both sides of the hand dryer with the supplied Alan key, and take off the shell. Use
the installation template provided (Fig. 3) to drill 4 x 8mm holes of 35mm deep.
2. Fix the hand dryer to the wall using the wall plugs and screws provided (Fig. 4)
3. Put on the cover, in the direction as shown in the figure below, to cover the hand dryer. Fix the shell to the base board
using screws provided (Fig. 5)
4. In case of concealed installation, knock out the plastic cable cover of wire inlet at the bottom of the back cover, remove
the original power cord, thread the wire through the hole and connect in to the corresponding terminals.
6. Screw
10
7. Screw
8. Wall plugs
9. Wire terminal
10. Wire inlet
levante-products.com
fig. 2
6
fig. 4
8
7
9
Obstacle
APPLICATION:
1. After installation is completed, connect the device to power
and it will be stand-by mode.
2. When you hand reaches within 10cm to the nozzle, the
hand dryer will automatically sense it and start to blow
warm air. It will stop operation after 1 second after you
hand moves away. If the hand dryer continue to operate
for 1 minute, the air flow will stop; it may be
restarted when the sensing process is activated again.
3. Follow the illustrations below to make hand drying easier
and quicker.
fig. 3
