Axiom AX1012P User Manual

passive constant curvature array element
KEY FEATURES
• 12" woofer, 1.4" HF neodymium compression driver
• Constant curvature Seamless Transition Waveguide (SWT) with 20° H x 100° V dispersion
• Transmission Line back loading for clean mid-bass reproduction and natural cardioid behavior
• Compact size, very good output-to-weight ratio
• Integral suspension hardware for horizontal or vertical array installation
• Pole mounting available for free-standing applications
INTRODUCTION
AX1012P is a versatile constant curvature full-range element that can be
used to create both vertical and horizontal line source arrays and also as
a high-directivity point-source loudspeaker.

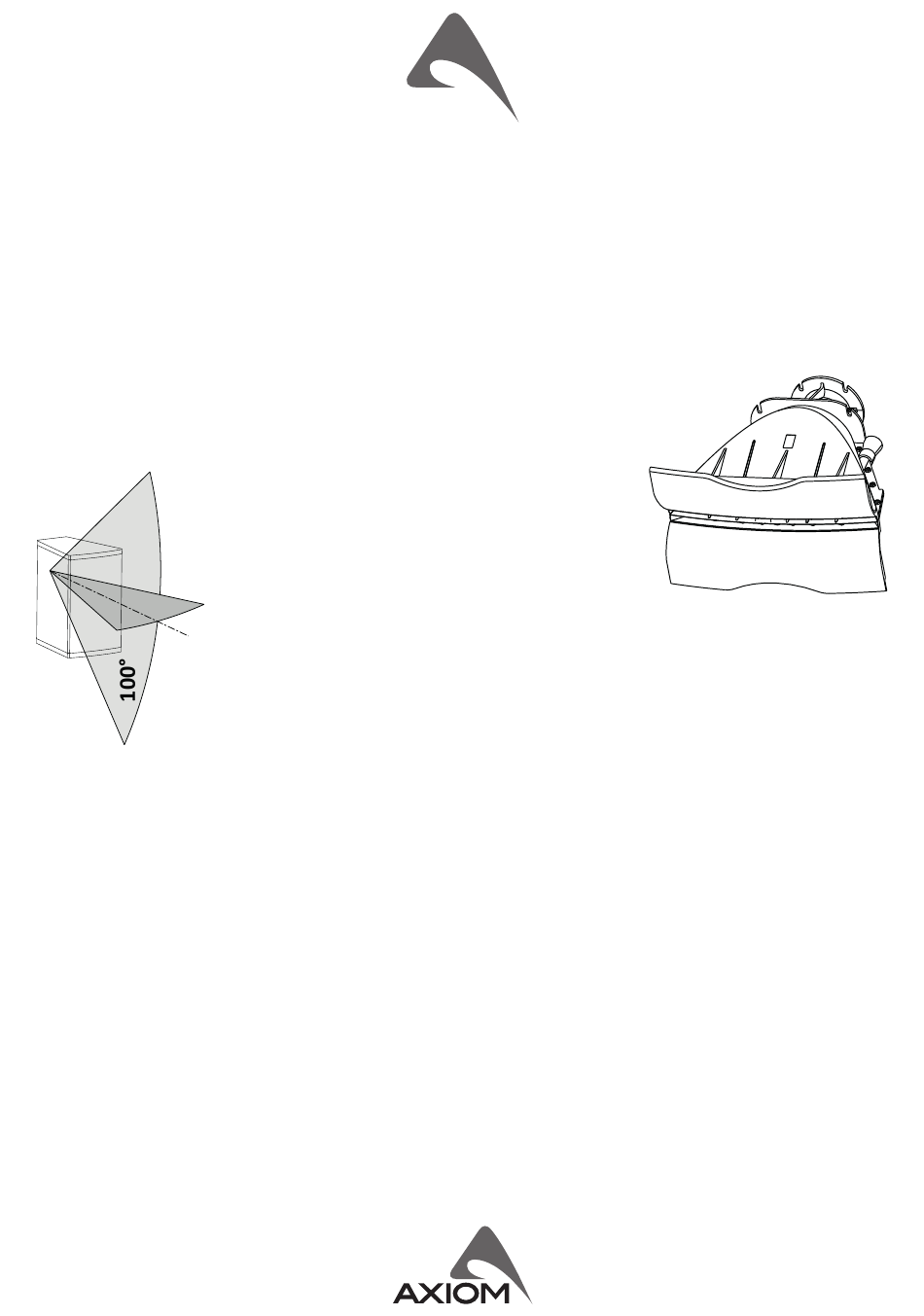

The 1.4" high frequency compression driver is coupled to STW -
Seamless Transition Waveguide, which ensures a precise control of
mid-high frequencies both on horizontal and vertical axis, for a perfect
acoustic coupling between the enclosures that form the array. The
20°
unique waveguide design produces vertical line source directivity with a
horizontal pattern that is maintained down to approximately 950Hz. This allows to project clean music and vocals
evenly around the audience without hot-spots and dead-spots. The sharp SPL off-axis rejection is used to avoid
reflecting surfaces in the enclosure coupling plane and perfectly adjusts the acoustic coverage to the audience
geometry.
The AX1012P tour-grade 15mm phenolic birch plywood cabinet is fitted with four integrated steel rails, to be used for
coupling the cabinets with the KPTAX1012 aluminium coupling bars. A comprehensive set of accessories is available
for creating horizontal or vertical arrays and for ground-stacking the systems.
AX1012P is recommended for the use as indoor FOH (Left – Centre - Right systems) or outdoor FOH in small to
medium-sized events, as per its predisposition as a passive system it is ideal for permanent fixed installations from
small to large venues such as convention centers, sports halls, stadiums and so on.
It can be used also as a complement to large systems as Out-fill, In-fill or distributed fill applications in a wide range of venue, providing clear sound
to areas not fully reached by the main system, while minimizing unwanted interactions and room reflections.
TECHNICAL SPECIFICATIONS
Acoustical
System type
Low frequency transducer
High frequency transducer
Frequency response (-6 dB)
Sensitivity (2.83 V @ 1m, 2 Pi)
Horizontal Coverage Angle (-6 dB) 20° (1KHz-17KHz)
Vertical Coverage Angle (-6 dB)
Maximum Peak SPL @ 1m
Electrical
Nominal Impedance
Minimum Impedance
Power Handling (AES)*
Power Handling (prgm)
* AES Pink Noise Continuous Power
revision 2019-12-10
USER MANUAL
AX1012P
Passive Constant Curvature Array Element
12" (305 mm) LF driver, 3" (75 mm) ISV
aluminium voice coil, 8Ω
1.4" (35.5 mm) HF compression driver, 2.4"
(61 mm) aluminium voice coil, Titanium
diaphragm, 8Ω
65 Hz – 17 kHz (Processed)
97 dB (LF) + 109 dB (HF)
SPL SPL
100° (1KHz-17KHz)
134 dB
8Ω (LF) + 8Ω (HF)
6.2 Ω @ 250Hz (LF) + 8 Ohm at 3000 Hz (HF) Net Weight
600W (LF) + 75 (HF)
1200W (LF) + 150 (HF)
LF Power Compression (LF)
Connectors
Connector Type
Input Wiring
Mechanical
Width
Height
Depth
Taper angle
Construction
Paint
Rigging system
Suspension
@ -10 dB Power (120 W) = 0.9 dB
@ -3 dB Power (600 W) = 2.8 dB
@ 0 dB Power (1200 W) = 3.8 dB
Neutrik® Speakon® NL4 x 2
LF = Pin 1+/1-; HF = Pin 2+/2-
370 mm (14.6")
611 mm (24")
495 mm (19.5")
10°
15mm, reinforced phenolic birch
High resistance, black water based paint
Captive suspension system
31 Kg (68.3 lbs)
