Pro-Elec PEL00579 Manual

Maintained led exit box

Model No. PEL00579

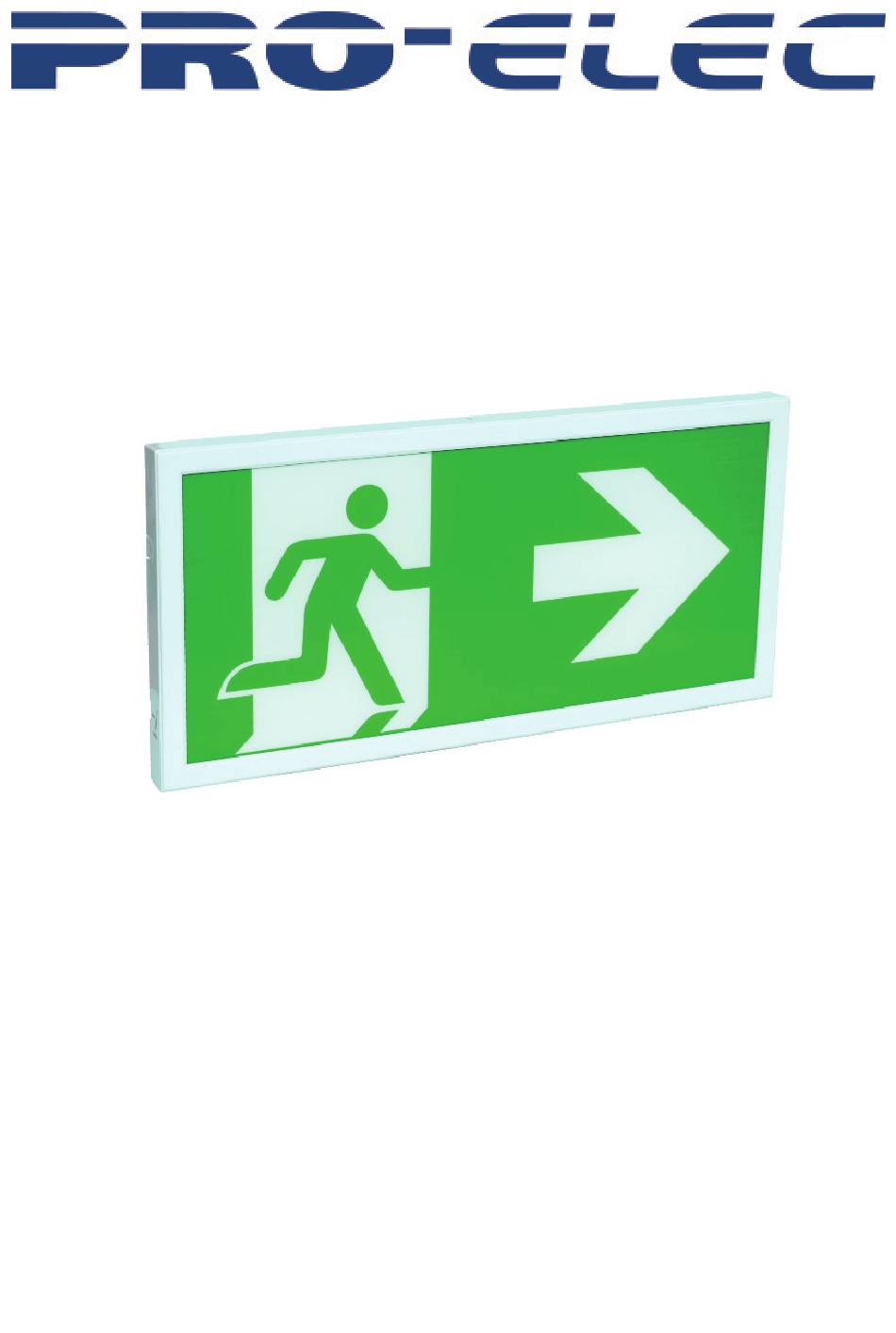

MAINTAINED LED EXIT BOX

Table of Contents

Need help?

Do you have a question about the PEL00579 and is the answer not in the manual?

Page 1 Model No. PEL00579 MAINTAINED LED EXIT BOX...
Page 2 Please read these instructions carefully before starting installation and retain for future reference. The centre page test record can be removed and kept with the building fire safety records. IMPORTANT SAFETY INFORMATION RISK OF ELECTRICAL SHOCK. ALWAYS ISOLATE THE POWER AT THE MAINS BEFORE INSTALLING OR MAINTAINING THIS EMERGENCY LIGHT.
Page 3 Test Record Sheet on reverse PULL OUT...
Page 4 Installation, maintenance a Location: Installation date: Installed by: 20__ 20__ Month Test Sign Date Sign Date Short Short Short Short Short 1 hr Short Short Short Short Short...
Page 5 and operation check record Installation test duration: 20__ 20__ 20__ Sign Date Sign Date Sign Date...
Page 6 Test Record Sheet on reverse PULL OUT...
Page 7 Legend diffuser Test button LED status indicators GREEN - Charging Wiring Entry YELLOW - Fault Slot to prize off the diffuser Illumination window OPERATIONAL CHECKS Note: This equipment must be checked regularly in compliance with local regulation and codes of practice. •...
Page 8 SPECIFICATIONS Input voltage: 220-240V~, 50Hz Rated power: 5.0W Lamps: SMD 2835 LEDs x 30 pcs Luminous flux: 60Lm (AC/DC) > 3 hours Continuous emergency illumination: (when the battery is fully charged) Battery pack: Ni-Mh 3.6V 1.8Ah Recharge time: 24 hours – approx. Ambient temperature: 0 - 35°C Over-discharge protection:...
