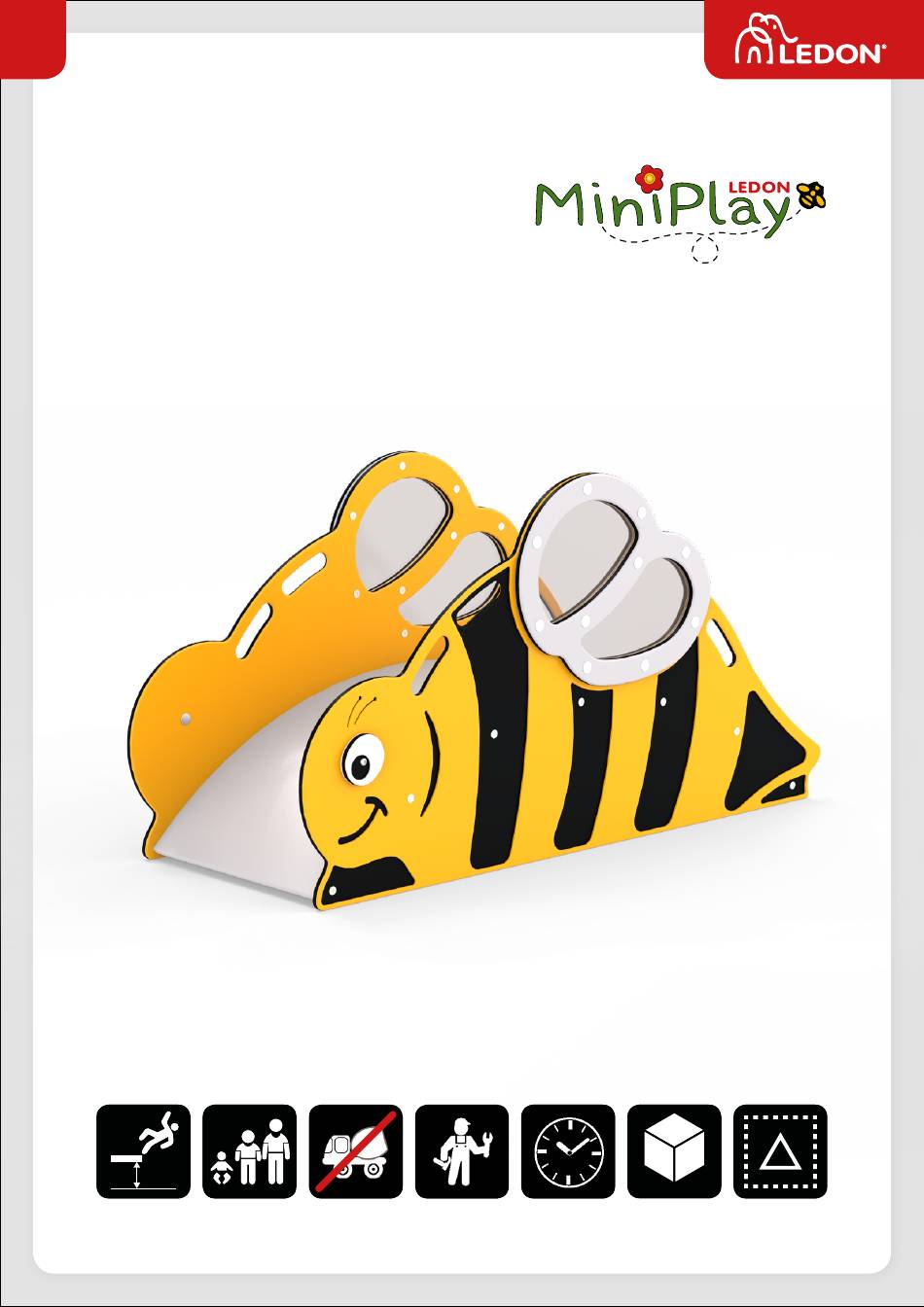

- Page 1 Revision: 1.0 MP005CG Date: June 18, 2019 Brum Assembly instructions Montageanleitung • Montagevejledning (LxW) (LxWxH) 30 cm 30 min 137,9 x 45 x 71,5 cm 437,9 x 345 cm...
- Page 2 Good advice and tips Ein paar gute Ratschläge und Tipps • Gode råd og vejledning • Take all components from the pallet and place them on the ground • Compare with components list – is everything there? • Be at all times precise when measuring •...
- Page 3 Clearance and safety surfaces Platzbedarf und Fallschutzunterlage • Pladshensyn og faldunderlag Safety surface in accordance with EN 1176 Fallschutzunterlag gemäß EN 1176 Faldunderlag i overensstemmelse med EN 1176 (*) Areas are accurately calculated values which are difficult to achieve in practice. Height •...
- Page 4 Components overview Bauteileübersicht • Komponentoversigt 73301 72255...
- Page 5 Site preparation Vorbereitung • Pladsforberedelse...
- Page 6 Assembly Montage • Montage...
- Page 7 Ready Fertig • Færdig...
