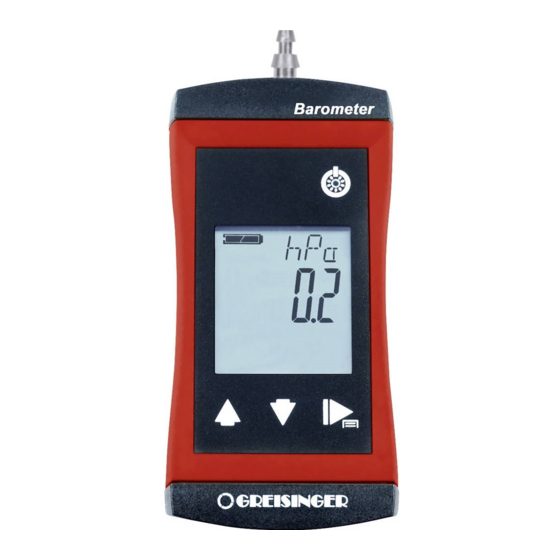

- Page 1 Operating manual G 1114 Vacuum meter | barometer...
-
Page 2: Table Of Contents
Qualified personnel.......................... 7 Description ............................ 8 Scope of delivery .......................... 8 Functional description........................... 8 The product at a glance ........................ 9 The G 1114............................ 9 Display elements .......................... 9 Operating elements .......................... 9 Connections............................ 10 Operation............................ 11 Commissioning ........................... 11 5.1.1... - Page 3 Table of contents Battery .............................. 20 7.2.1 Battery indicator.......................... 20 7.2.2 Changing battery .......................... 20 Calibration and adjustment service..................... 21 7.3.1 Certificates............................ 21 Error and system messages...................... 22 Disposal............................. 23 Technical data........................... 24 Spare parts and accessories ...................... 25 Ordering code ........................... 26 Service ...............................
-
Page 4: About This Documentation
1 | About this documentation G 1114 1 About this documentation 1.1 Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Further Information
G 1114 About this documentation | 1 Prerequisite All mandatory prerequisites are then listed for each step. Instruction Tasks to be carried out by the personnel / user are represented as numbered instruc- tions. Adhere to the sequence of the specified instructions. -
Page 6: Safety
2 | Safety G 1114 2 Safety 2.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations which can cause damage to the device or to the environment in case of non-observance. -
Page 7: Qualified Personnel
G 1114 Safety | 2 The G 1114 measures the absolute pressure in the air, clean water or in non-corros- ive/non-ionising gases. A direct measurement of the environmental pressure can take place or the measurement pressure is taken with a suitable hose connected to the port. -
Page 8: Description
3 | Description G 1114 3 Description 3.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries –... -
Page 9: The Product At A Glance
G 1114 The product at a glance | 4 4 The product at a glance 4.1 The G 1114 Top view LCD Display Connection variants 4.2 Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information... -
Page 10: Connections
4 | The product at a glance G 1114 Function key Press briefly Freeze measurement (Hold) Return to measurement display Call up next parameter Long press, 2s Start menu configuration, (ONF appears in the dis- play Close menu, changes are saved... -
Page 11: Operation
G 1114 Operation | 5 5 Operation 5.1 Commissioning 5.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [} p. 11]. Prerequisite – Sufficiently full batteries are inserted in the product. -
Page 12: Configuring Parameters Of The Configuration Menu
5 | Operation G 1114 Representation Call up menu Next parameter Change value Save changes Discard changes Press: Single step Product is Hold: Fast switched off change Outcome of an action The Configuration menu is closed after the last parameter. -
Page 13: Open The Adjustment Menu
G 1114 Operation | 5 Nautical norm correction SEA.L Inactive, display measured air pressure directly Active, display air pressure compensated to sea level ALT, -500 .. 9000 Height above sea level in m for correction Shut-off time POFF No automatic shut-off... -
Page 14: Parameters Of The Adjustment Menu
5 | Operation G 1114 Representation Call up menu Hold Release Release Outcome of an action The adjustment menu is closed after the last parameter. 5.2.5 Parameters of the adjustment menu Description Zero point – For an optimal zero point calibration, a vacuum pump and a precise reference device are needed. - Page 15 G 1114 Operation | 5 NOTE If the product is switched off without saving the configuration, the last saved values are reproduced on the next start-up of the product. B-H88.0.14.DB2-1.0 15 / 28...
-
Page 16: Measurement Basics
6 | Measurement Basics G 1114 6 Measurement Basics 6.1 Vacuum measurements The device is especially suitable to measure rough vacuum via the pressure port very fast. But if the complete device is evacuated the following has to be considered:... -
Page 17: Pressure Connections
G 1114 Measurement Basics | 6 Special case If the Tare function is activated when called up, this special function AVR can be reset by pressing and holding the Function key for 4 s. In order to reactivate the Tare, the special function must be switched in the configuration menu. -
Page 18: Qc6 Operation
6 | Measurement Basics G 1114 6.5 QC6 operation Quick-Connect for Ø 6 mm hoses. Fig. 5: QC6 Quick-Connect The practical quick-change connection is only suitable for plastic hoses with 6 mm outer diameter. The hose end must be clean and undamaged for connection. It is fit by simply pushing it in until the mechanical stop is reached. -
Page 19: Replacement Of Pressure Hoses
G 1114 Measurement Basics | 6 Fig. 7: MCM mini-quick-coupler plug connector Compatible quick-couplers with nominal width 2.7 mm can be used: Fig. 8: quick-coupler 6.8 Replacement of pressure hoses The pressure connections are screwed into the product with a standard G 1/8 inch thread with end seal. -
Page 20: Operation And Maintenance
7 | Operation and maintenance G 1114 7 Operation and maintenance 7.1 Operating and maintenance notices NOTE Pressure connections must be protected from soiling. 7.2 Battery 7.2.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. -
Page 21: Calibration And Adjustment Service
G 1114 Operation and maintenance | 7 7.3 Calibration and adjustment service 7.3.1 Certificates The certificates are categorised as ISO calibration certificates and DAkkS calibration certificates. The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. -
Page 22: Error And System Messages
8 | Error and system messages G 1114 8 Error and system messages Display Meaning Possible causes Remedy Calculation not pos- Measurement data Waiting for data collection ---- sible acquisition is run- ning No display, Battery depleted Battery depleted Replace battery... -
Page 23: Disposal
G 1114 Disposal | 9 9 Disposal Separation by material and recycling of device components and packaging must take place at the time of disposal. The valid regional statutory regulations and directives applicable at the time must be observed. NOTE The device must not be disposed of with household waste. -
Page 24: Technical Data
10 | Technical data G 1114 10 Technical data Measuring range 0 .. 14000 hPa (mbar) abs. 0.00 .. 200.90 PSI abs. 0 .. 10500 mmHg (Torr) abs. Accuracy < ± 0.1 % MW respectively ± 0.02 % FSS typical (at T: 5 .. 30 °C) -
Page 25: Spare Parts And Accessories
G 1114 Spare parts and accessories | 11 11 Spare parts and accessories A selection of spare parts and accessories for this product is listed below. Article Number Name Description 601060 GKK 1100 Case with nap foam, 340 x 275 x 83 mm... -
Page 26: Ordering Code
12 | Ordering code G 1114 12 Ordering code G 1114 G11xx 2. Pressure connection 1/8 inch port, incl. connections for 6x1 mm (4 mm inside) and 8x1 mm (6 mm inside) hoses. 1/8 inch port, incl. quick-fit connector for hose outer Ø 6 mm 1/8 inch port, incl. -
Page 27: Service
13 Service 13.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact GHM Messtechnik GmbH GHM GROUP - Greisinger Hans-Sachs-Str. 26 93128 Regenstauf | GERMANY Email: info@greisinger.de | www.greisinger.de WEEE reg. no. DE 93889386 13.2 Repairs processing Defective products are repaired professionally and quickly in our service centre. -
Page 28: Sales Subsidiaries
Phone +33 4 72 37 45 30 Phone +91 22 40236235 info@ghm.dk | www.ghm.dk a.jouanilou@ghm-group.fr info@ghmgroup.in | www.ghmgroup.in Italy for Greisinger & Delta OHM Italy for Honsberg, Martens, Val.co Netherlands GHM GROUP – Delta OHM GHM GROUP – Val.co GHM Meettechniek BV...
