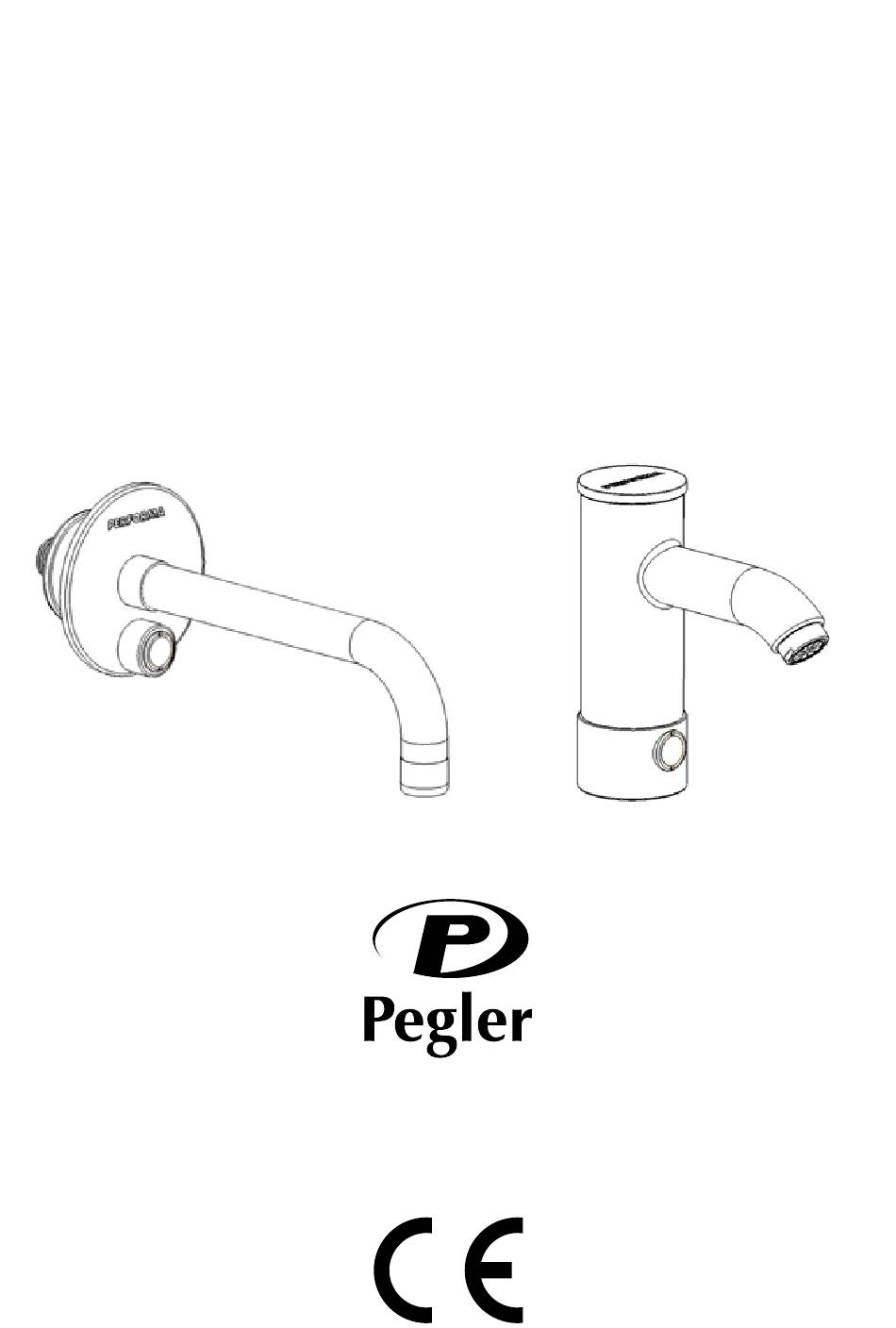

- Page 1 Your Guide to the Installation, Care and maintenance of PERFORMA Electronic Self Closing Fittings - Mains Powered 886V (343029) 885V (343027) Pegler Limited, St Catherine’s Avenue, Doncaster DN4 8DF Telephone 01302 560560, Fax 01302 560109 Pegler Yorkshire Technical Office Tel 0870 1200285...
- Page 3 When water usage is finished, move away and the flow of water will cease. Please Note: All Pegler Yorkshire electronic products are suitable for many types of applications but are also sensitive to high visibility jackets. Therefore areas where high visibility jackets are used can experience false high levels of sensor feedback.
-
Page 4: Electrical Specification
Please see the Pegler Yorkshire approved Prestex 410 Group Mixing Valve 22mm size – product code 5A1060 or Prestex 402H 22mm/15mm size – product code... -
Page 5: Pre-Installation Checks
Failure to do so will void warranty. To reduce pressure to a more optimum level we also recommend the use of a Pegler Pressure Reducing Valve. For use on pressures between 1.1/2 bar to 5.1/2 bar - product code 5A2001 for ½”... - Page 6 It is imperative that the connections from the sensor are correctly wired into the control module (in accordance with the wiring instructions included in this leaflet) failure to do so will result in extensive damage to the electrical components. The cable from the sensor unit must never be extended.
- Page 7 Installation of Basin Pillar Tap 886V Please Note: The 886V is a single tap for use on hot / cold or mixed water. (For mixed water please ensure appropriate TMV is fitted to support a safe delivery of water) Determine the position of the basin tap allowing sufficient space around the tap for it to be used without hindrance or harm to the user.
-
Page 8: Electrical Connection
Dip Switch #3 activates the ‘shower’ feature. Because the control module is used on other products with in the PERFORMA range of electronic products Dip Switch 3 is primarily used for showering applications. Therefore when control module is being used on 885V and 886V products this should be permanently switched off. -
Page 9: Troubleshooting
Sensitivity To adjust the detection field, remove the control module box lid and adjust by turning the potentiometer with a small flat ended screwdriver. Turning clockwise will increase the distance, while anticlockwise will reduce. The screw will turn to a maximum 225 degrees rotation. - Page 10 Dry using soft cloth, never use abrasive cleaners or chemical household cleaners, avoid contact with concentrated bleach. Pegler products are manufactured to the highest standards and should require little or no maintenance. In the unlikely event of any spare part requirements, please visit our website: www.pegler.co.uk, contact you’re nearest stockist or the Pegler Yorkshire Technical Office...
