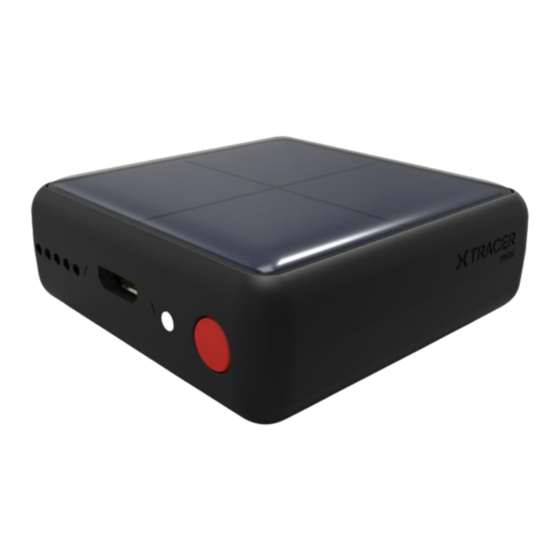

Summary of Contents for XC-Tracer Mini II

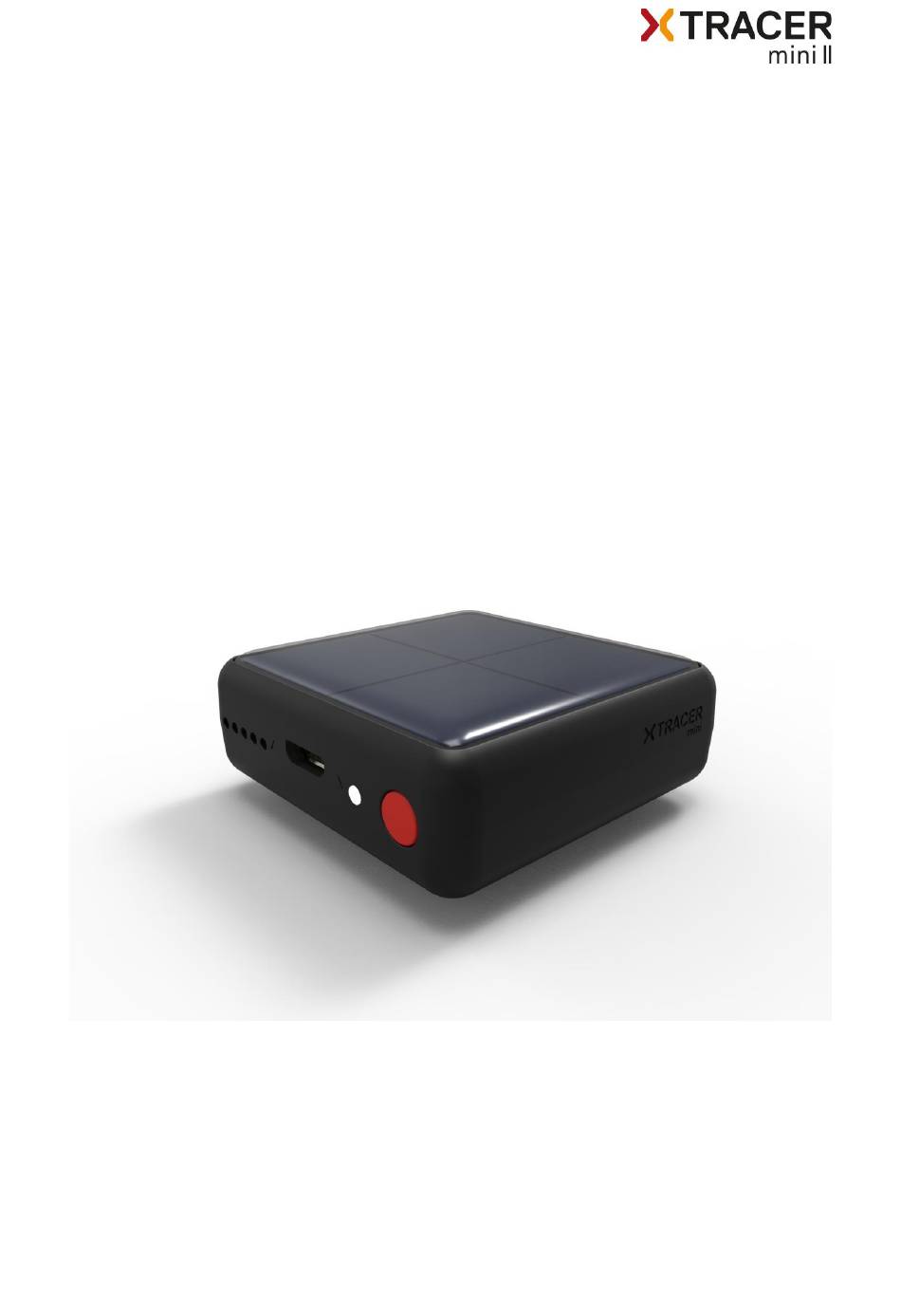

- Page 1 User Manual XC Tracer Mini II User Manual XC Tracer Mini II Rev 02 4.6.2020...
- Page 2 LED will start blinking every 2-3 seconds. Don’t worry if you forget to switch on XC Tracer Mini II before taking off, you can switch it on whilst flying. The vario won’t beep on the ground, but as soon as you’re flying then XC Tracer Mini II will indicate the lift / sink rate with beeping tones.
- Page 3 (this feature is described further below). Finally XC Tracer Mini II makes a beep-beep-beeeeeep and it’s now ready for flight. Turning XC Tracer Mini II off is just the same - press and hold the red button until you hear beep- beep.
- Page 4 Should it ever be necessary you can charge XC Tracer Mini II using a Micro USB cable. It takes approximately 2 hours to fully charge the battery so it's best to leave it charging overnight.
- Page 5 # create your own vario tone settings below beepOnlyWhenFlying=yes When this is set XC Tracer Mini II will be silent before takeoff. This is very helpful when you have configured some kind of a thermal sniffer. With beepOnlyWhenFlying=yes the variometer will be silent until XC Tracer Mini II detects a climb/sink rate of +/- 0.75m/s for roughly 2-3 seconds.
- Page 6 Eeprom. The tones must be defined ascending from tone 1 of -10m/s to tone 10m/s of tone 12. Important: Please avoid using exactly the same climb rate on adjacent tones as it will create problems. User Manual XC Tracer Mini II Rev 02 4.6.2020...
- Page 7 XC Tracer Mini II doesn't actually save the new configuration into its internal memory until it starts up in normal flight mode. So, press the red button briefly to unmount / eject the device from your computer, disconnect it from the USB cable, then turn XC Tracer Mini II on as normal.
- Page 8 Connect XC Tracer Mini II to a computer using a Micro USB Cable and once connected, switch the device on by briefly pressing the red button until you hear a beep-beep-beep. XC Tracer Mini II is now running in USB-MSD (Mass Storage Device) mode. XC Tracer Mini II’s internal Micro SD Card will appear as an external drive in Windows Explorer or the Mac Finder.
