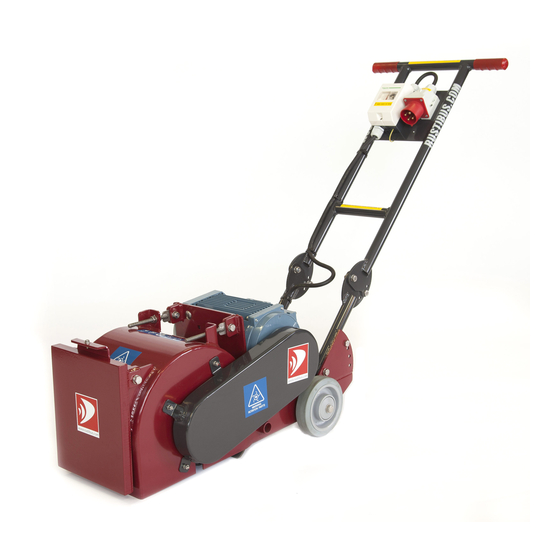

- Page 1 OPERATION MANUAL OPERATION MANUAL 200-4000 RUSTIBUS® 2000 LOW ELECTRIC 3 Phase 220/380/440 V - 50/50/60 Hz 3 x 380/440 V - 50/60 Hz 3 x 220 V - 50 Hz...
-
Page 2: Declaration Of Conformity
Machine may vary from pictures Genuine Rustibus® parts only! DECLARATION OF CONFORMITY Manufacturer: Rustibus Worldwide AS Bekkjarviksundet 19 N-5397 BEKKJARVIK NORWAY The authorised representative In the EEA: Rustibus N.V. Noordersingel 7 B-2140 ANTWERP BELGIUM Hereby declares that the Products specified: Rustibus®... - Page 3 If they are not there, they’re not GENUINE PARTS. Use only the best, don’t settle for less. RUSTIBUS® If they are not there, they´re not genuine spares. Use only the best, don´t settle for less.
- Page 4 Machine may vary from pictures Genuine Rustibus® parts only! HELPFUL IDENTIFIERS In addition to information on installation and operation, this instruction manual may contain WARNINGS and CAUTIONS pertaining to user safety, and NOTES on important, useful operating guidelines. A WARNING indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury.
- Page 5 Never operate the Rustibus® de-scaling tool while wearing loose hanging chains, hanging ID/security badges or garments that may be caught in the rotating parts. Never start the Rustibus® de-scaling machine before it´s cables or hoses are properly secured and safely located.
-
Page 6: Safety Considerations
• ALWAYS THINK SAFETY FIRST WHEN OPERATING MACHINE. BEFORE STARTING THE OPERATION Congratulations on your new Rustibus® de-scaling machine. In order to ensure your full benefit and safety of operation we recommend you to read this operation manual carefully before starting. -
Page 7: Installation And Setup
Step 4: OPERATION OF RUSTIBUS® MACHINE. • For the best results from your Rustibus® machine you should run the machine forward and backward over the area until appropriate result is achieved • Do not run the machine over sharp edges, but along them. Your machine will last longer if operated with care. - Page 8 Simply use the Chain Drums until they are completely destroyed and then replace them with new ones. This makes the Rustibus® 2000 fast and efficient! If one of the pins on the Disposable Chain Drums should brake, it might create an unbalance in the rotation.
- Page 9 Genuine Rustibus® parts only! Machine may vary from pictures SPARE PARTS FOR CHAIN DRUM SYSTEM Item : 200-2300 Item : 200-0170 Item : 200-0180 Shaft to Chain Drum and Bearing 17mm (Incl. Casing) Bearing 20mm (Incl. casing) Wire Brush Weight: 0,235 Kg / 0,51 lbs...
- Page 10 Simply use it until it is totally destroyed and then replace it with a new one. The Rustibus® 2000 should only be used on a flat horizontal surfaces. All sorts of obstacles should be avoided at all times such as sockets,edges etc. De-scaling should be done along side weldings NOT across. If one of the chain links / pins should brake and create an unbalance in the machine, simply cut the chain links on the opposite side of the broken one.
- Page 11 1.Removing the Chain Drum from 2.Remove belt cover 3. Lay down machine like the picture Rustibus® 2000 Series is the same so the chain drum is free to rotate. for all types : low, standard, electric, (On the LOW machine you have to pneumatic and our Atex/Ex Certified machines.
- Page 12 Genuine Rustibus® parts only! Machine may vary from pictures REMOVING THE CHAIN DRUM REMOVING THE PULLEY Information guide on how remove the Pulley. Take off the pulley: loosen the ‘umbrako-bolts’ fig.2) in the Bush. (See picture below) Place one of these bolts in the ‘Third hole’...
- Page 13 Genuine Rustibus® parts only! Machine may vary from pictures REMOVING THE CHAIN DRUM REMOVING THE DISPOSABLE CHAIN DRUM Information guide on how to remove the Chain Drum. 6. Remove bolts and take out the “key” . *fig.1 7. Remove bolts on the other side of the chassis and loosen the allen screw 8.
- Page 14 1.Replacing the Chain Drum on 2. Make sure that the grease nipple ( fig.1) is poiting down when you are Rustibus® 2000 Series is the same putting the chain drum inside the chassis. for all types : low, standard, electric, pneumatic and our Atex/Ex Certified machines.
- Page 15 Genuine Rustibus® parts only! Machine may vary from pictures REPLACING THE CHAIN DRUM REPLACING THE DISPOSABLE CHAIN DRUM Information guide on how to replace the Chain Drum. *fig.2 6. Put on the bolts, but don´t fasten 7. Now fasten the bolts on the square 8.
- Page 16 Genuine Rustibus® parts only! Machine may vary from pictures REPLACING THE CHAIN DRUM REPLACING THE DISPOSABLE CHAIN DRUM Information guide on how to replace the Chain Drum. 12.Put on the first belt .To get it in the track closest to the chassis use a screwdriver while you rotate the chain drum.
- Page 17 Machine may vary from pictures Genuine Rustibus® parts only! RUSTIBUS® 2000 LOW THREE PHASE MACHINE THE RUSTIBUS® 2000 LOW CAN BE DELIVERED WITH THE FOLLOWING VOLTAGES: Connection on El - Motor: 3 X 220 / 380 / 440V - CONNECTION EL- MOTOR:...
- Page 18 Machine may vary from pictures Genuine Rustibus® parts only! SPARE PART LIST – RUSTIBUS® 2000 LOW Item : 200-0155 Wire Brush Assembly Incl.: Item:200-0158 - Replacement Wire Replacement Wire Brush Brush(200-0158) (Brush Only) - 17mm Bearing (200-0170) Weight: 16 kg / 35 lbs - 20mm Bearing (200-0180) ISSA: 55.315.04...
- Page 19 Machine may vary from pictures Genuine Rustibus® parts only! SPARE PART LIST – RUSTIBUS® 2000 LOW PARTS TO CHASSIS UNIT 200-0010L CHASSIS - LOW 200-0011L HANDLE FOR LOW MACHINE 200-0110L COVER FOR BELTS 200-0012 PLASTIC GRIPS FOR HANDLE (2 PCS)
- Page 20 200-4035 BUSH 28MM ELECTRIC MOTOR LOW STARTER BOX CIRCUIT BREAKER The starter system in the starter box on the Rustibus® 2000 Circuit breaker When a new Rustibus® machine is delivered is preinstalled for the specific voltage upon delivery. from Dalseide Shipping Services, it is clearly marked which If the voltage is to be changed on the machine, the starter power supply it is intended for.
-
Page 21: Additional Features
(Part number: 200-0062) *optional extra. EARTH BREAKER SAFETY DEVICE This safety device is highly recommended to connect between power supply and Rustibus machine in order to ensure full safety for the operators. (Part number: 200-6135) - Page 22 Rustibus® 2000 Remote controlled 3X220/380/440V - 50/50/60 Hz – 5,5/5,5/6,4 kW 50 M Cable 3X2, 5 + E 200-9000 Rustibus® 2000 Low, Air driven Complete W/Air filter-Lubricator & Regulator 200-X9000 Rustibus® X2000 Low Air (EX), Complete W/Air filter-Lubricator & Regulator...
- Page 23 Rustibus cannot be held liable for any damages (to Rustibus® machines or personnel) as a result of use of non genuine parts. We reserve the right to refuse any claims on parts or Rustibus® machinery unless it can be proven that genuine parts only have been used on Rustibus® machines.
- Page 24 “WALK BEHIND”SERIES * DESIGNED TO DE-SCALE AND POWER BRUSH SHIP DECKS, HATCH COVERS, TANK TOPS, ETC. * THE ORIGINAL RUSTIBUS® CHAIN DRUM SYSTEM * RESULT: St 3 +++ (SSPC-SP11 +++) Rustibus® * ELECTRIC (THREE-/SINGLE PHASE), PNEUMATIC AND DIESEL DRIVEN VERSIONS AVAILABLE...
-
Page 25: Vertical System
* MOST EFFICIENT HAND TOOL ON THE MARKET * IDEAL FOR DAILY MAINTENANCE ON DECK, AVAILABLE SPOT SCALING, CARGO HOLD AND BALLAST AS EX MODEL TANK DE-SCALING. * THE ORIGINAL RUSTIBUS® CHAIN DRUM SYSTEM Rustibus® 32 Electric 220V Rustibus® 33 Air Rustibus®... -
Page 26: Contact Information
Machine may vary from pictures Genuine Rustibus® parts only! CONTACT INFORMATION NORWAY: Rustibus Worldwide AS Bekkjarviksundet 19 NO - 5397 Bekkjarvik Norway Tel: + 47 9596 7002 E-mail: bergen@rustibus.com ANTWERP: Rustibus N.V. Noordersingel 7 2140 Antwerpen Belgium Tel: + 32 3227 2096 Fax: + 32 3227 2097 E-mail: antwerp@rustibus.com...
