Freedom9 freeGuard Slim 100 Quick Install Manual

Quick Install Guide
Quick Install Guide for the freeGuard Slim 100
PACKAGE CONTENTS:
• freeGuard Slim 100
• Power cord
• Power supply
• 2 Ethernet cales
• 2 x RJ-45 cables
• CD with user manual
GETTING STARTED
This guide provides information for the initial setup and
configuration of the appliance.
For more complex applications, see the following
documentation provided with your freeGuard Slim 100
device:
• User guide
• CLI reference Guide
A. CONNECTING THE APPLIANCE:

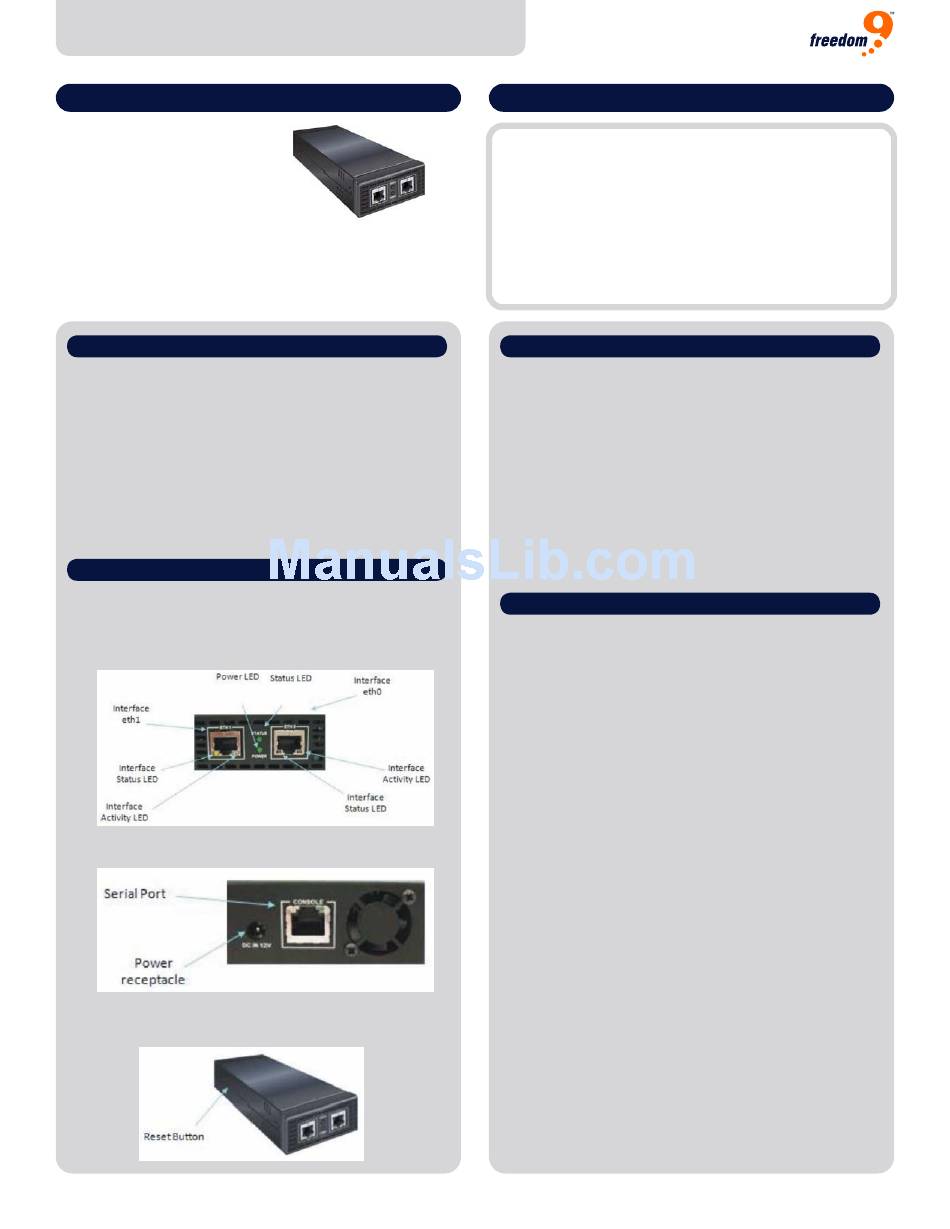

Front and back panels
The freeGuard Slim 100 front panel is shown in figure 1.
Figure 1
The freeGuard Slim 100 back panel is shown in figure 2.
Figure 2
The freeGuard Slim 100 reset button is shown in figure
3.
Figure 3
Revision 1.0 Specifications are subject to change without notice. Copyright 2008 Freedom9 Inc.
freeGuard
Slim 100
freeGuard Slim 100
(FSL100)
freedom to succeed
Network Traffic and Security Management
The freeGuard Slim 100 appliance is a com-
pact, low power device that delivers high
performance security and networking
traffic management capabilities to seam-
lessly enhance existing network infrastruc-
tures.
B. CONNECTING THE POWER CABLES:
1. Connect the power supply to the appliance power
receptacle on the back panel of the unit
2. Connect the power supply to the AC power source
3. The Power LED on the front panel will turn ON
You are ready to configure your freeGuard Slim 100
applicance. There are two options:
Option 1: Connecting the serial cable for
text-based configuration
Option 2: Connecting the cables for web-based
setup
B-Option 1: TEXT-BASED CONFIG
1. Plug one end of the serial cable into the serial port
labeled CONSOLE on the back panel of the appliance
2. Plug the RJ-45 to DB9 console cable adapter to the
management station
3. Plug the serial cable with the DB9 connector to the
management station
4. Turn on the freeGuard Slim 100 appliance and the
management station if they are not already on
Use your preferred terminal program to manage the
device. The serial console settings are as follows:
Baud rate:
38,400
Data bits: 8
Parity: No
Stop bit:
1
Flow control: None
5. The freeGuard Slim 100 appliance takes approxi-
mately 60 seconds to completely initialize. After the
appliance is completely initialized, you will see the
following prompt:
Press Enter to active this console
6. Press the Enter key to enter a login name and
password. The default login credentials are:
Login: admin
Password: admin
Now you are ready to perform other configuration tasks
using the appliance
www.freedom9.com
1-888-998-9189
Page 1
