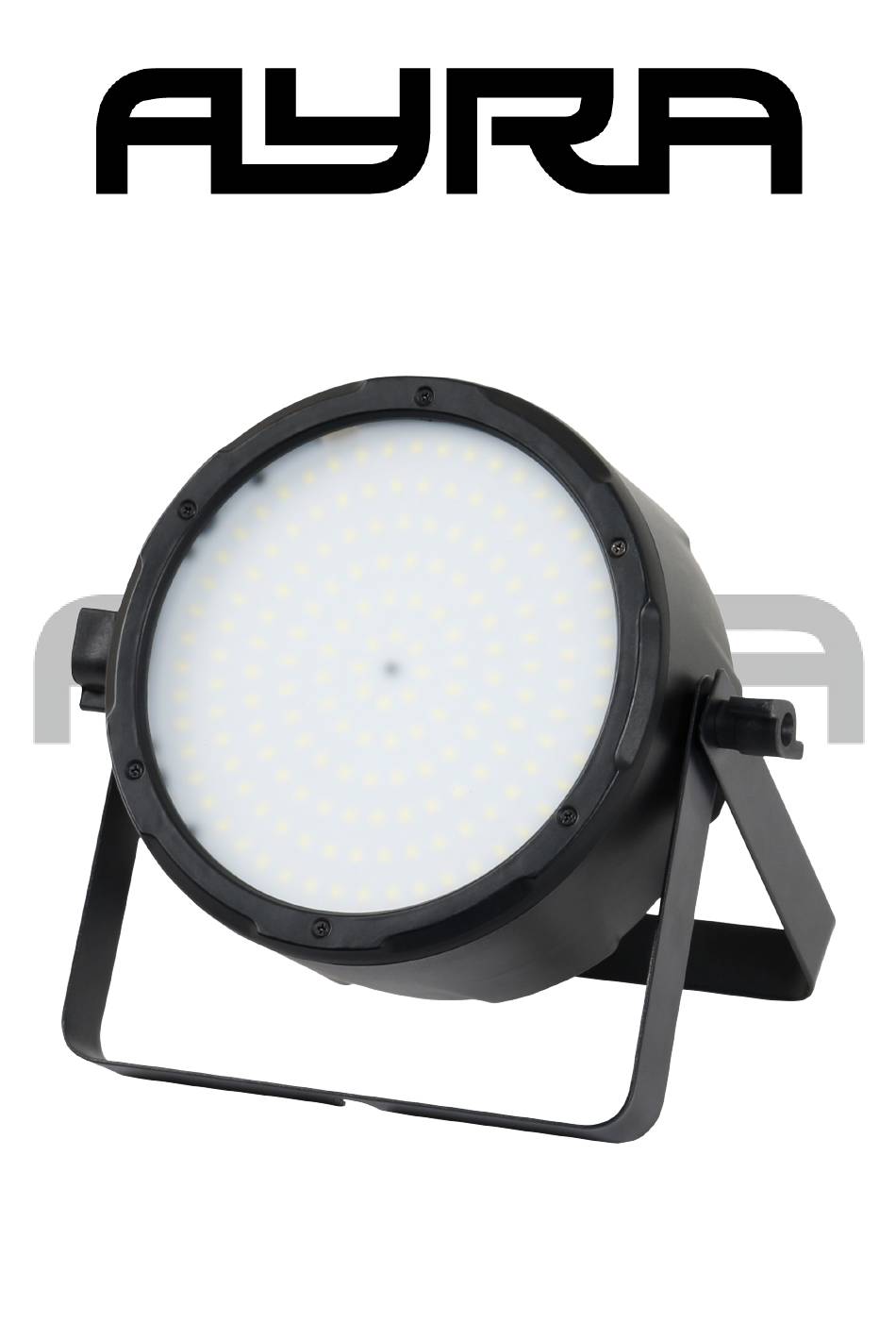

- Page 1 Flash FX LED LED Strobe Effect with Segments User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 'Box Contents' are included in the package. In the event that the Flash FX LED does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Operation Guidelines for this Device 1. Light output 2. Suspension bracket with tightening knobs 3. Power output via IEC C13 4. Power unput via IEC C14 with fuse holder 5. LED display with Menu buttons 6. Microphone 7. Safety cable attachment point 8.
- Page 7 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
- Page 8 An explanation of all available functions can be found below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on.
- Page 9 version of the device. Operation Modes Please find a clear explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 10 151-165 Effect 10 166-180 Effect 11 181-195 Effect 12 196-210 Effect 13 211-225 Effect 14 226-240 Effect 15 241-255 Random effect Effect speed / Sound-controlled 000-249 Effect speed, slow to fast 250-255 Sound-controlled 13CH mode: Function Value Dimmer 0-100% 000-255 Shutter effects 000-007 LED Off 008-015 LED On...
- Page 11 196-210 Effect 13 211-225 Effect 14 226-240 Effect 15 241-255 Random effect Effect speed / Sound-controlled 000-249 Effect speed, slow to fast 250-255 Sound-controlled The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
-
Page 12: Installation And Connection Instructions
When you want to place the Flash FX LED in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The Flash FX LED is fitted with feet to ensure that it sits stable where it is placed and without danger of shifting or slipping while in use. - Page 13 Power Output The Flash FX LED is fitted with an IEC C14 power input and an IEC C13 power output. This makes it possible to link multiple devices with one single power supply, wall socket or power block. The fuse fitted in this device is intended to protect that single device only. The input and output of the power supply are directly wired to each other.
- Page 14 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 terminator Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 16: Technical Specifications
Technical Specifications Specifications: - Powerful LED stroboscope with compact housing - LEDs divided into 8 separate an independently operated segments - Diverse interactive and varied programmes due to LED segments - Light source: 168x 0,5W white SMD LEDs - Diverse operation modes, such as static on, built-in programmes that can be automatically played or sound- controlled, DMX, Master / Slave etc.
