INSTALLATION
MANUAL

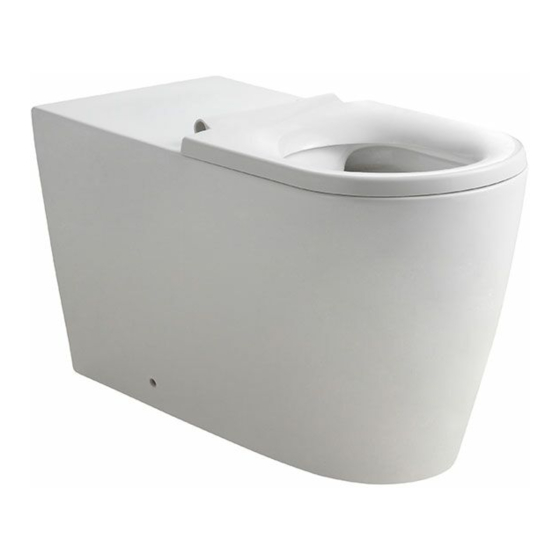

9509547 Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat,
Backrest, Care Button and Plate, Hideaway+ Inwall Cistern, White (4*)
9509548 Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat,
Backrest, Care Button and Plate, Hideaway+ Inwall Cistern, White & Grey (4*)
9509549 Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat,
Backrest, Care Button and Plate, Hideaway+ Inwall Cistern, White & Blue (4*)
Installation Details | Warranty
Advertisement
Table of Contents
Related Manuals for Wolfen Wolfen 800 9509547
Summary of Contents for Wolfen Wolfen 800 9509547
- Page 1 INSTALLATION MANUAL 9509547 Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat, Backrest, Care Button and Plate, Hideaway+ Inwall Cistern, White (4*) 9509548 Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat, Backrest, Care Button and Plate, Hideaway+ Inwall Cistern, White & Grey (4*) 9509549 Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat, Backrest, Care Button and Plate, Hideaway+ Inwall Cistern, White &...
- Page 2 04 - 05 Cleaning Warranty Delivering unrivalled quality Designed for absolute performance, Wolfen’s 800 Back to Wall Inwall Toilet Suite sets new standards in quality, hygiene and flushing performance. A Rimless, raised height design combined with precision engineering and extended footprint ensures suitability for care and ambulant environments.
- Page 3 9507171 Wolfen Back Rest with Fixed Arms 9503671 Hideaway+ Inwall Cistern Back to Wall (4*) Spare Parts 9508717 Wolfen Seat Buffers (Sideways) AS 1172 WMKA21192 9508718 Wolfen Fixing Kit WOLFEN INSTALLATION MANUAL | Wolfen 800 Back to Wall Inwall Toilet Suite (4*)
- Page 4 WOLFEN INSTALLATION MANUAL | Installation Instructions INSTALLATION INSTRUCTIONS Wolfen 800 Back to Wall Inwall Toilet Suite with Single Flap Seat (4*) 9509547 | 9509548 | 9509549 190min - 290mm max Note: All measurements should be taken from the nished wall/ oor...
- Page 5 Set-Up 1. Rough in positions of water inlet pipe, waste outlet and fixing bracket holes. Ensure inlet connection extends 100mm from finished wall. 2. Prepare waste outlet according to required set out (190mm min - 290mm max) and drill floor fixing brackets into position (60mm inside traced mark of pan rim).
- Page 6 • Proof of purchase (including the date of purchase) is provided • The installation of the product is in Don’t risk it, use a licensed plumber.™ accordance with the instructions provided WOLFEN INSTALLATION MANUAL | Wolfen 800 Back to Wall Inwall Toilet Suite (4*)
- Page 7 IF AFTER CHECKING THE INSTALLATION INSTRUCTIONS AND IMPORTANT INFORMATION, THE PROBLEM HAS NOT BEEN IDENTIFIED, CUSTOMERS ARE TO CONTACT THE BRANCH WHERE THE PRODUCT WAS PURCHASED. THESE DETAILS CAN BE FOUND ON YOUR PURCHASE INVOICE. General contact details for Reece are as follows: Reece Australia Pty Ltd 118 Burwood Hwy Burwood VIC 3125...
- Page 8 reece.com.au/wolfen...
