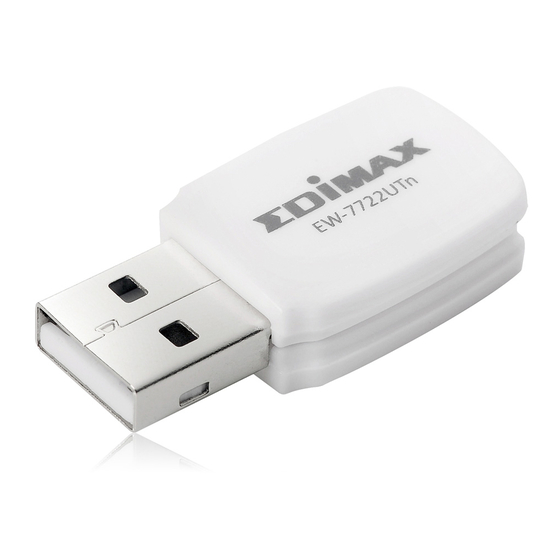

EW-7722UTn V2/EW-7612UAn V2
Quick Installation Guide
11-2020 / v1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7722UTn V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EW-7722UTn V2

Summary of Contents for Edimax EW-7722UTn V2

  • Page 1 EW-7722UTn V2/EW-7612UAn V2 Quick Installation Guide 11-2020 / v1.3...

  • Page 2: Table Of Contents

    Contents I. Product Information ................1 I-1. Package Contents ........................1 I-2. LED Status ..........................1 I-3. System Requirements ......................2 I-4. Safety ............................. 2 II. Installation .................... 3 III. Windows ....................5 III-1. Driver Installation ........................5 III-2-1. Windows XP/Vista/7 ......................8 III-2-2.
  • Page 3 Č š a : Českého průvodce rychlou instalací naleznete na š přiloženém CD s ovladači : Finden Sie bitte das deutsche S.A.L. beiliegend in der Treiber CD ñ l : Incluido en el CD el G.R.I. en Español. ñ : Veuillez trouver l’français G.I.R ci-joint dans le CD ç...

  • Page 4: Product Information

    I. Product Information I-1. Package Contents EW-7722UTn V2 EW-7612UAn V2 USB Cable CD-ROM I-2. LED Status LED Status Description LED displays on for five seconds to indicate a successful WPS connection. Flashing Wireless activity: transmitting or receiving data. Fast Flashing (3 WPS is active.

  • Page 5: I-3. System Requirements

    I-3. System Requirements - Windows XP/Vista/7/8/8.1~, Mac OS 10.7~, Linux - USB 2.0 Port - Hard Disk: 100MB - CD-ROM Drive I-4. Safety In order to ensure the safe operation of the device and its users, please read and act in accordance with the following safety instructions. The wireless adapter is designed for indoor use only;...

  • Page 6: Installation

    II. Installation Switch on your computer and insert the USB adapter into an available USB port of your computer. Never use force to insert the USB adapter. If a Hardware Wizard/Driver Installation window opens as shown to the left, please click “Cancel” or “Close”.
  • Page 7 Insert the included CD-ROM into the CD drive of your computer. For Windows users the setup wizard will open. For Mac users the CD’s “Mac” folder will open. Linux drivers are also included in the “Linux” folder. If the CD doesn’t auto-run or if you downloaded the setup wizard, please browse to the “Autorun”, “Mac”...

  • Page 8: Windows

    If the CD didn’t auto-run, please open the “AutoRun” folder and execute “Autorun.exe” file to start the setup wizard. Click the EW-7722UTn V2/EW-7612UAn V2 wireless USB adapter to continue. Click “Install Driver” to install the drivers for your EW-7722UTn V2/EW-7612UAn V2.
  • Page 9 Please wait until the installation wizard is ready and then click “Next” to continue. Please wait while the driver is installing.
  • Page 10 Before you can use the wireless adapter, you need to restart your computer. When the installation is complete you will be asked to choose whether you wish to restart your computer now or later. Click “Finish” to continue. Click “Exit” to close the setup wizard.

  • Page 11: Windows Xp/Vista/7

    Wi-Fi network as usual. For guidance on doing so, please refer to VI. Using The Adapter.III-2. Driver Uninstallation III-2-1. Windows XP/Vista/7 Go to Start > Programs > Edimax Wireless LAN > Uninstall Follow the on screen instructions. An uninstall wizard will guide you through the process.

  • Page 12: Mac Os

    IV. Mac OS IV-1. Driver Installation Ensure you select the correct file for your version of Mac OS. To check your version of Mac OS, click the Apple logo in the top left corner of your desktop and go to “About This Mac”. Open the “Wlan_11ac_USB_MacOS10…”...
  • Page 13 If you have already have an older version of the software installed on your computer, please uninstall it before you continue. Select a language and click “Continue” to install the driver.
  • Page 14 To read the software license click “Read License” and then click “Agree” to confirm you agree to the terms. You must agree to the terms to continue installing the software. Click “Install” to install the driver. You may be prompted to enter your system/administrative password before the installation can begin.
  • Page 15 You will be prompted that you must restart your computer when the installation is complete. Click “Continue Installation” to proceed. Please wait while the driver is installing.
  • Page 16 When the installation is complete, you will see the following screen informing you that “The installation was successful”. Click “Restart” to restart your computer. When the adapter is connected to your computer (after your system has restarted) the wireless utility will open automatically. However if you see the notice below then you need to activate the adapter in “System Preferences ...

  • Page 17: Iv-2. Driver Uninstallation

    Next, please disable any other wireless adapters as described in V. Disabling Network Adapters. Then Mac users can connect to a Wi-Fi network using the included utility software. For guidance on doing so, please refer to VI. Using The Adapter. IV-2.

  • Page 18: Disabling Network Adapters

    V. Disabling Network Adapters To ensure that your USB wireless adapter can function correctly, it is recommended that you disable any other existing wireless network adapters installed on your computer. If you are unsure how to do so, you can refer to the user manual for your computer, or follow the guidance below.

  • Page 19: Windows Vista

    V-2. Windows Vista Go to Start > Control Panel. Click View network status and tasks > View Status and click Disable. V-3. Windows 7 Go to Start > Control Panel. Click View network status and tasks > Wireless Network Connection and click Disable.

  • Page 20: V-4. Windows 8/8.1

    V-4. Windows 8/8.1 Switch to desktop mode by clicking your cursor in the bottom left of the Windows 8/8.1 Start screen. Then go to File Explorer > (right click) Network > Properties > Change adapter settings. Right click your wireless adapter and then select “Disable”.

  • Page 21: Mac

    V-5. Select “System Preferences” from the dock. In “System Preferences”, select “Network”. All of your network connections will be displayed, as shown below. Select “Wi-Fi” from the left panel. Click “Turn Wi-Fi” off in the main panel.

  • Page 22: Using The Adapter

    VI. Using The Adapter After you have installed the driver and if necessary disabled other wireless adapters (see V. Disabling Network Adapters), Windows users can connect to a Wi-Fi network as usual (see below). Mac users need to connect to a Wi-Fi network using the included utility software, as described in VI-2.
  • Page 23 After correctly entering your password, you will be successfully connected to your Wi-Fi network.

  • Page 24: Vi-2. Mac: Connecting To A Wi-Fi Network

    VI-2. Mac: Connecting to a Wi-Fi network The wireless utility will open automatically when the adapter is connected to your computer. If the utility doesn’t open, you can open it from the “Applications” menu in your Mac. Click the “Available Network” tab in the wireless utility. Select a Wi-Fi network to connect to and click “Connect”.
  • Page 25 Enter the password (network key) for the Wi-Fi network, confirm the password (network key) again below and click “OK”. After entering your password, you will be successfully connected to your Wi-Fi network. A summary of the connection will be displayed on the “Link Status”...

  • Page 26: Vi-3. Mac: Wireless Utility

    VI-3. Mac: Wireless Utility The wireless utility offers features to monitor and configure your connection. Navigate the wireless utility using the menu across the top of the window. VI-3-1. Link Status The “Link Status” page displays information about the current wireless connection.

  • Page 27: Vi-3-2. Profiles

    VI-3-2. Profiles The “Profiles” screen allows you to save different Wi-Fi connection settings as “Profiles”. Existing profiles are listed in the “Profile List”. Opens a new window to manually add a new profile. Edit Edit an existing profile. Remove Remove an existing (selected) profile. Duplicate Duplicate selected profile.
  • Page 28 Add a Profile When you select “Add”, a new window will open. Enter a profile name and SSID, along with security information, and then click “OK”. You can also add a new profile from the “Available Network” screen. AdHoc networks are also supported – check the box labeled “This is a computer-to-computer (AdHoc network)…”...

  • Page 29: Vi-3-3. Available Network

    VI-3-3. Available Network The “Available Network” screen displays a list of all available Wi-Fi networks within range along with various categories of information about each network. Refresh Refresh the list of available wireless networks. Connect Connect to a selected wireless network. Add to Profile Use a selected wireless network to create a new profile (see VI-3-2.

  • Page 30: Vi-3-4. Wps

    VI-3-4. WPS Wi-Fi Protected Setup is a simple, alternative way to establish connections between WPS compatible devices. Most of the wireless router and access point feature a built-in WPS button, which activates WPS on that device. When WPS is activated in the correct manner and at the correct time for two compatible devices, they will automatically connect to each other.

  • Page 31: Pbc: Push Button Configuration

    PBC: Push Button Configuration The EW-7722UTn V2/EW-7612UAn V2 does not feature a physical WPS button, but PBC WPS can be executed from this page by following the steps below: Press the WPS button on your wireless router/access point for the correct length of time to activate its WPS.
  • Page 32 Within two minutes, select your wireless/router/access point from the “SSID” list as shown below, and then click the “PIN” button in the bottom left of the “WPS” page. The wireless adapter will establish a connection with your wireless router/access point. Below is a general description of items on the “WPS”...

  • Page 33: Vi-3-5. Information

    Please check the instructions for your wireless router/access point for how long you need to hold down its WPS button to activate WPS. Within two minutes, press the WPS button on to activate its WPS. EW-7722UTn V2/EW-7612UAn V2 The devices will establish a connection. button...
  • Page 34 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
  • Page 35 A simplified DoC shall be provided as follows: Article 10(9) 300N Wireless LAN USB Adapter Hereby, Edimax Technology Co., Ltd. declares that the radio equipment type is in compliance with Directive 2014/53/EU The full text of the EU declaration of conformity is available at the following internet address: http://www.edimax.com/edimax/global/...
  • Page 36 The ETSI version of this device is intended for home and office use in Austria, Belgium, Bulgaria, Cyprus, Czech, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland.
  • Page 37 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU, 2014/35/EU. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 2014/53/EU, 2014/35/EU. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 2014/53/EU, 2014/35/EU.
  • Page 38 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European Radio Equipment directives. Equipment: 300N Wireless LAN USB Adapter Model No.: EW-7612UAn V2 The following European standards for essential requirements have been followed:...
