Summary of Contents for MGS CB437

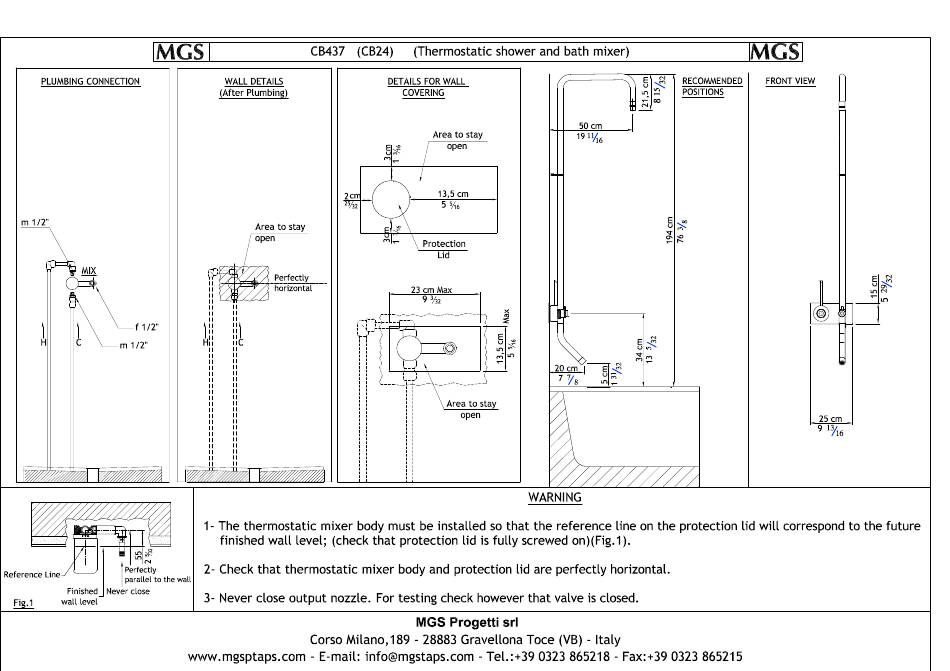

- Page 7 ASSEMBLY INSTRUCTIONS THERMOSTATIC SHOWER CB437 FIRST STEP Remove various parts from the carton with extreme care. Handle Body (E) – Knob (G) – Cover (H) – CAM (F) – Ring (B) Check on the wall that the built-in thermostatic valve is clean and that installation has been made correctly according to our separate pre-assembly instructions.
- Page 8 ASSEMBLY INSTRUCTIONS THERMOSTATIC SHOWER CB437 ASSEMBLY OF TUB FILLER (FIG 6) - Fully push spout block (I) into connection (C’) taking care of not damaging O-Ring gaskets. - Tighten the assembly through ring (I’). - Tighten flexible hose (L) to (L’).
