Summary of Contents for Sangoma H10

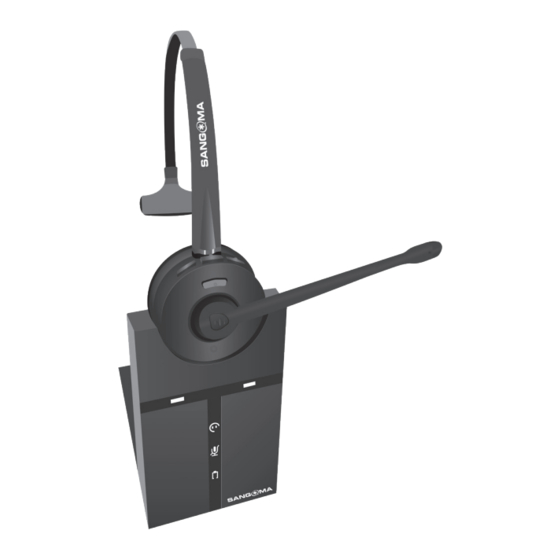

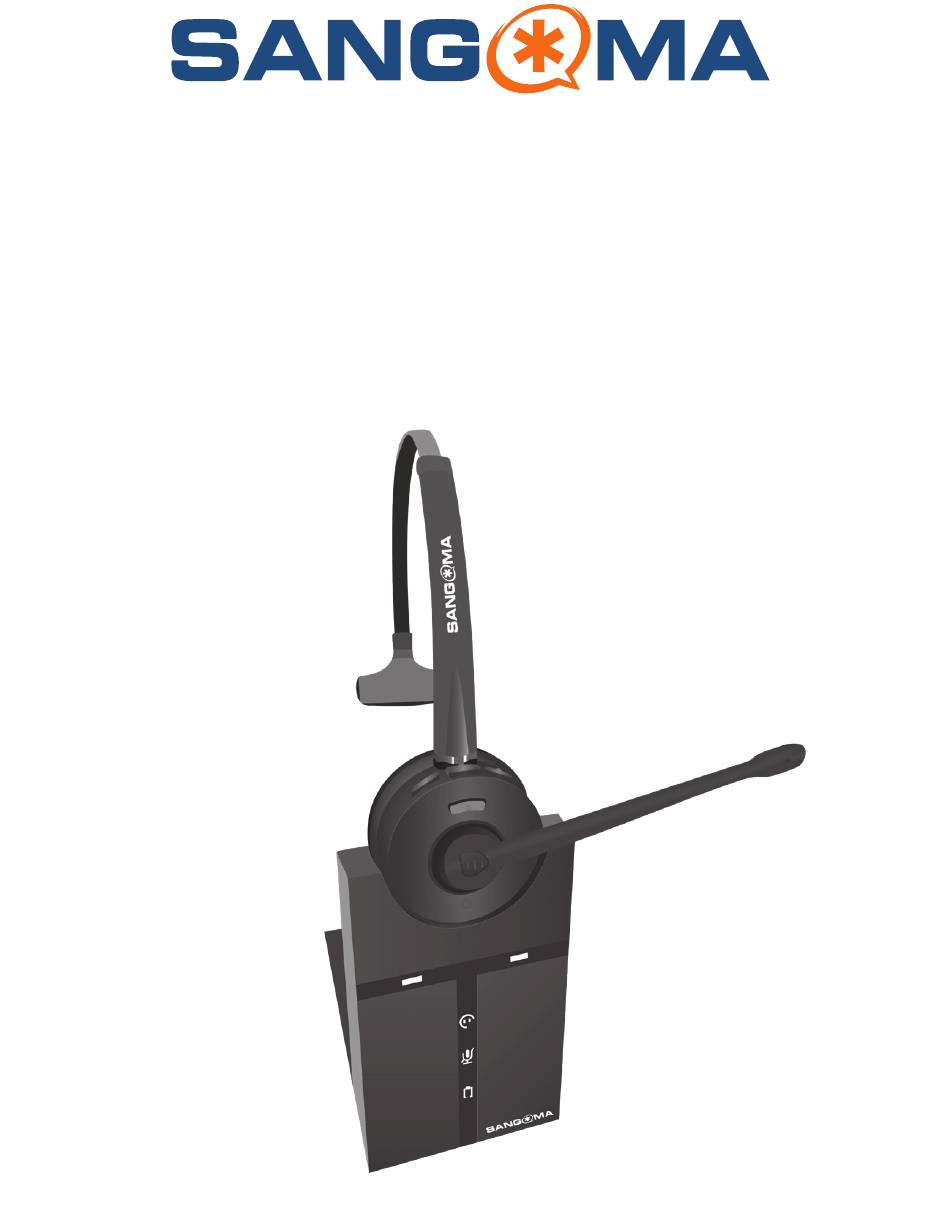

- Page 1 Wireless DECT Headset and Base for Desk Phones User Manual...
-
Page 2: Table Of Contents
8. Call Management ..................... 14 8.1 Making, Answering, and Ending Calls ............14 9. Technical Specifications ................... 15 9.1 H10 DECT Headset ..................15 9.2 Headset Battery ..................16 9.3 H10 DECT Base ..................17 9.4 Product Disposal ..................17 9.5 FCC Note to Users .................. -
Page 3: Welcome
1. Welcome Congratulations on your purchase of a Sangoma Headset. We are sure you will enjoy its wide range of features, that you will find it comfortable to wear, and easy to use. Sangoma Headset Features: • Wideband audio for exceptional sound quality •... -
Page 4: Product Overview
2 . 1 P a c k a g e C o n t e n t s Headset User Manual Power Adapter Wireless DECT Headset and Base for Desk Phones Telephone Cable User Manual SOLD SEPERATELY EHS Cable for D-Series Phones HC01 (1TELHC01LF) Base H10 User Manual... -
Page 5: Headset Overview
2 . 2 H e a d s e t O v e r v i e w Headband Microphone Mute Speaker Volume Up Speaker Volume Down Multi-Function Button Handset Status LED Speaker Leather Cushion Handset Charger Contacts Noise-Cancelling Microphone H10 User Manual... -
Page 6: Base Overview
Searching for headset Microphone muted Battery charging Full battery Medium battery Low battery Unknown battery status Microphone Volume Adjustment Pair Button Speaker Volume Adjustment Dialtone Adjustment Power Input Handset Port (Lifter Configuration Option) Desk Phone Port AUX/EHS Cable H10 User Manual... -
Page 7: Connecting To Desk Phones
4. Connect the telephone cable to the handset port on the desk phone. 5. Connect the handset lifter cable to the port marked AUX on the base. *D-Series phones are not compatible with handset lifters. H10 User Manual... -
Page 8: Connecting Power
3 . 2 C o n n e c t i n g P o w e r 1. Plug the power adapter into the power input port marked on the base. 2. Connect the power adapter to the mains power socket. H10 User Manual... -
Page 9: Dock The Headset
Paired LED indicator will illuminate. When properly docked, the headset battery will, if needed, begin charging. When charging, the Battery Charging Status LED will illuminate. Charge the headset for 20 minutes or until the battery indicator is steady green. H10 User Manual... -
Page 10: Unpairing And Re-Pairing
Dialtone Adjustment Switch can stay in the Mode A position. When using the headset with non-Sangoma phones, if the dialtone is not clear, the sliding Dialtone Adjustment Switch is available. CLICK H10 User Manual... -
Page 11: Microphone Gain And Speaker Volume
SPEAKER loud or too quiet. ADJUSTMENT 5. Adjust the speaker volume using the speaker volume buttons, as illustrated, if the far end is too loud or quiet 6. End the call H10 User Manual... -
Page 12: Headset Features
Hold Answer incoming call √ End current call √ Power on √ Power off √ 7.2 Headset Speaker Volume Buttons The speaker volume buttons adjust the headset speaker volume. Speaker Volume Button “-” Speaker Volume Button “+” H10 User Manual... -
Page 13: Headset Mute Button
ON 250ms OFF 4 seconds FLASH Connected Light on hold Online Light on hold Incoming call ON 300ms OFF 700ms FLASH Headset docked in base Low battery alarming ON 300ms OFF 100ms + ON 30ms OFF 500ms FLASH H10 User Manual... -
Page 14: Call Management
2. Press the headset button on the desk phone. 1. Press the headset button on the desk End a Dock the headset or press the phone. 2. Dock the headset or press the multi-function button. Call multi-function button. H10 User Manual... -
Page 15: Technical Specifications
Sound Quality: (CAT - IQ) European DECT and U.S. DECT. Range: For European DECT, up to 120 meters from H10 DECT Headset base to headset. For U.S. DECT, up to 350 feet from H10 DECT Headset base to headset. Frequencies: U.S. -
Page 16: Headset Battery
20% charge in less than 20 minutes. 50% charge in less than 45 minutes. Full charge in less than three hours. Battery Shelf Life: Headset battery holds charge for six months in the off state before recharge is required. H10 User Manual... -
Page 17: H10 Dect Base
9 . 3 H 1 0 D E C T B a s e H10 DECT Base meets the following specifications. Dimensions: 97 mm x 75 mm x 120 mm. Wireless Standard: (CAT - IQ) European DECT and U.S. DECT. -
Page 18: Fcc Note To Users
For baseband, this equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. H10 User Manual... -
Page 19: Ic Notice To Users
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérirles informations correspondantes. H10 User Manual... - Page 20 For compliance information please visit Rev: V1.021820 www.sangoma.com/compliance...
