Deploy the ExtraHop Discover 9200
Appliance
Published: 2020-02-22
This guide explains how to install the rack-mounted EDA 9200 ExtraHop Discover appliance.
Installation prerequisites
To install the Discover appliance, your environment must meet the following requirements:
Appliance
2U of rack space and electrical connections for 2 x 750 W power supplies.
Management
One 10/100/1000 BASE-T network port or one 10G BASE-SR port for appliance management.
Monitoring (capture)
High performance interfaces: One to four network ports for connection to 25 GbE or 10 GbE sources
of packet data.
Management + monitoring interfaces: One to three network ports for connection to 1 GbE sources of
packet data.
Network Access
The TCP 443 port must be open between the Discover appliance and any system that connects to the
appliance for administration through the ExtraHop Admin UI.
For more information about the interfaces on the Extrahop appliance, see the

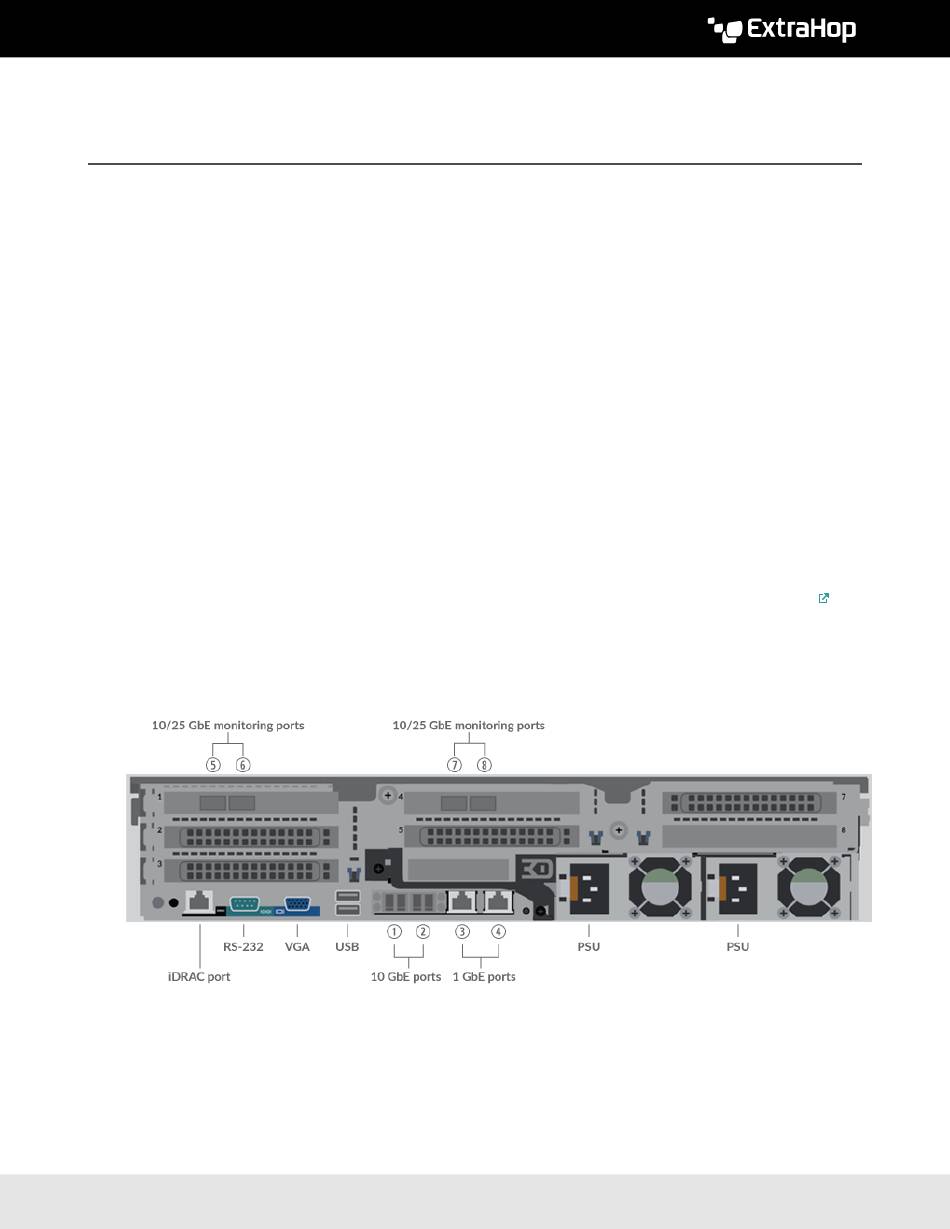

Rear panel ports
EDA 9200
•
One iDRAC interface port
•
One RS-232 serial port to connect a console device
•
One VGA port to connect an external display
•
Two USB 3.0 ports to connect input devices such as a keyboard and mouse
•
Two power ports to connect the appliance to an AC power source
Appliance Hardware FAQ
©
2020 ExtraHop Networks, Inc. All rights reserved.
.
Advertisement
Table of Contents
Summary of Contents for ExtraHop Discover 9200
- Page 1 Deploy the ExtraHop Discover 9200 Appliance Published: 2020-02-22 This guide explains how to install the rack-mounted EDA 9200 ExtraHop Discover appliance. Installation prerequisites To install the Discover appliance, your environment must meet the following requirements: Appliance 2U of rack space and electrical connections for 2 x 750 W power supplies.
- Page 2 Four 25 GbE-capable ports on two network adapters. Ports 5 - 8 are the high-performance monitoring (capture) interfaces. Supported packet source connectivity The Discover 9200 can accept packets through ports 1 - 8. The ports can be connected according to the table below. Discover 9200...
- Page 3 Configure the management IP address DHCP is enabled by default on the ExtraHop appliance. When you power on the appliance, interface 3 attempts to acquire an IP address through DHCP. If successful, the IP address appears on the home screen of the LCD.
- Page 4 Admin UI. Make sure that the port 1 is connected to the 10 GbE network. Establish an SSH connection to the ExtraHop appliance. At the login prompt, type shell and then press ENTER. At the password prompt, type the system serial number and then press ENTER. The serial number is printed on a label on the back of the appliance.
- Page 5 After you configure an IP address for the Discover appliance, open a web browser and navigate to the ExtraHop Web UI through the configured IP address. Accept the license agreement and then log in with the setup user account. The password is the system serial number that appears in the Info section of the LCD display and on the label on the back of the appliance..
