Summary of Contents for ATEK MAKINA JUMBO DOUBLE

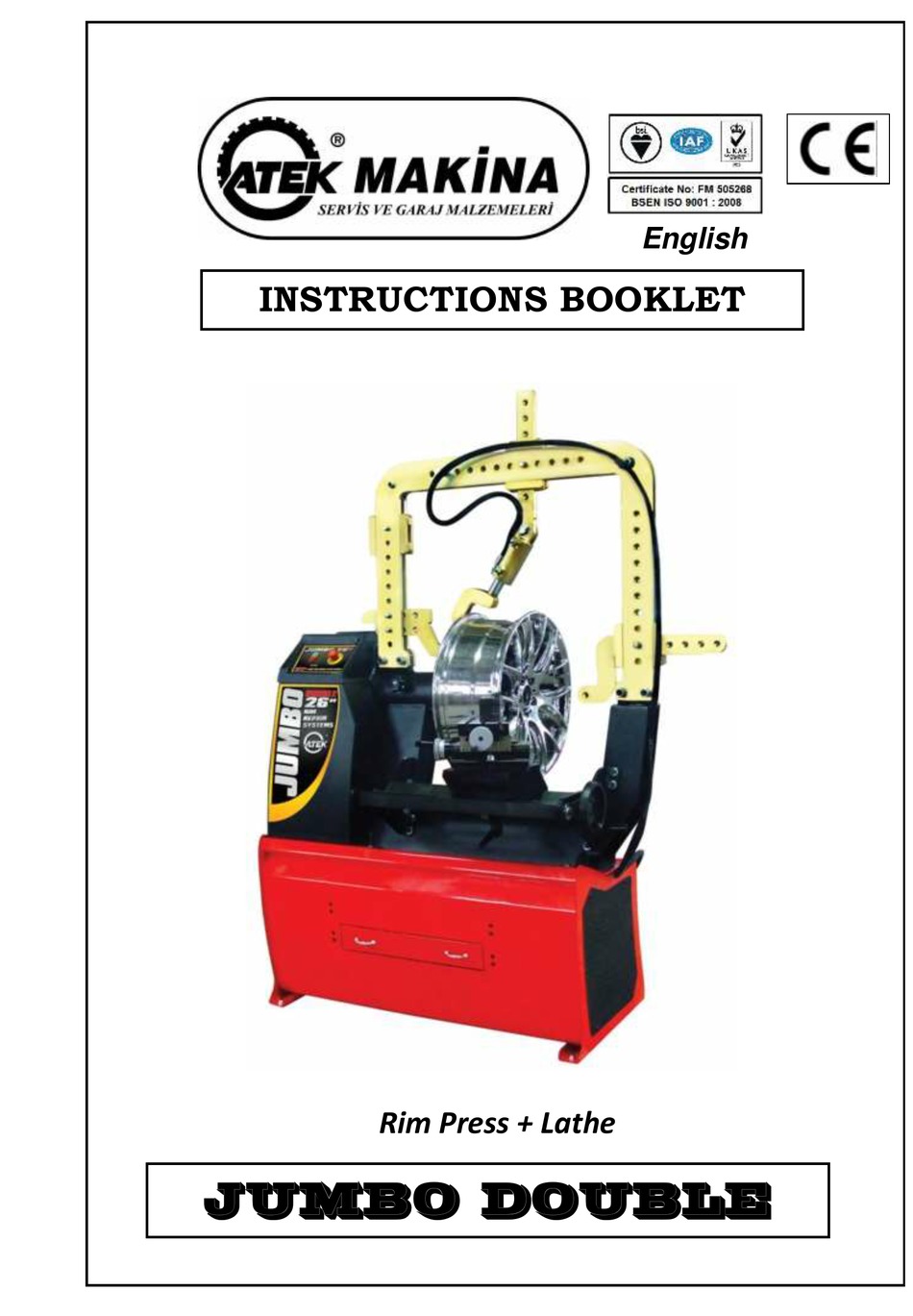

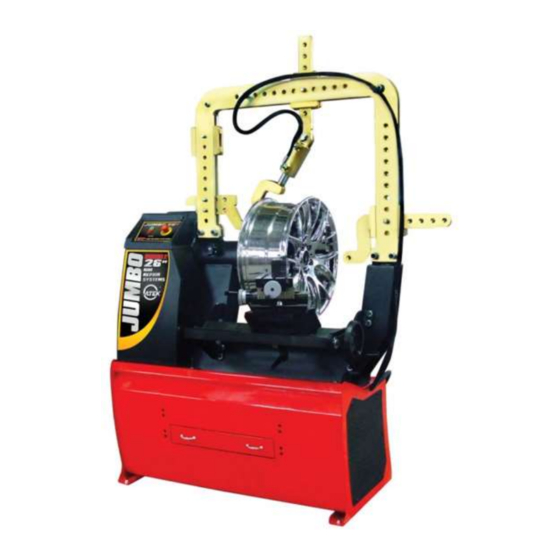

- Page 1 English INSTRUCTIONS BOOKLET Rim Press + Lathe JUMBO DOUBLE...
- Page 3 The Machines which are produced By ATEK MAKINA are under warranty against defects of the material and production for one(1) Year from date of it is sold. Our Company ATEK MAKINA is not responsible for the damages or defects due to damages occured by faulty used and out of purpose of use.
-
Page 4: Table Of Contents
CLAUSE 1 IMPORTANT NOTICE The presents instructions booklet is an integral part of the product.Carefully study the warnings and instructions contained in it. This information is important for safe use and maintenance. Conserve this booklet carefully for further consultation. THIS MACHINE Is a rim pres to repair defective rims. -
Page 5: Clause
PARTS OF THE MACHİNE CLAUSE 3 FLANSH must rotate in arrow direction RIM CONNECT FLANSH The flansh desinged to serve different size of rims CONTROL UNIT controls the HYDRAULIC UNIT moves the LATHE UNIT lathes the defective rims pistons movements piston up and down position after repair ACCESSORIES PROVIDED... -
Page 6: Clause
INTRODUCTION CLAUSE 4 Thıs Manual Has Been Prepared For Workshop Personnel Expert In The Use Of The Machıne (Operator) And Technıcıans Responsıble For Routıne Maıntenance (Maıntenance Fıtter); Read The Manual Before Carryıng Out Any Operatıon Wıth The Rım Repaır And/Or Packıng . Thıs Manual Contaıns Important Informatıon Regardıng : Rım Repaır Machınes Safety He Personnel Safety Of Operators And Maıntenance Workers CONSERVING THE MANUAL... -
Page 7: Clause
CLAUSE 6 SAFETY WARNINGS DON’T USE YOUR PLEASE READ THE İNSTRUCTİONS MACHINE WITHOUT MANUAL CAREFULLY GLASSES AND BEFORE START GLOVES. DO NOT PUT YOUR HANDS BETWEEN DO NOT USE THE PISTON USİNG THE MACHİNE THE PISTON AND FLANSH DURING ON LIVING THINGS. THE OPERATION. -
Page 8: Problems , Causes , Remedies
CLAUSE 7 RIM REPAIR EQUIPMENT Double impact correcting piston Correcting Piston Bedding Slidable and Turnable Type Lathe CLAUSE 8 PROBLEMS – CAUSES - REMEDIES PROBLEMS CAUSES REMEDIES 1.The mains connection is not plugged in. 1,2,3.Check the correct insertion of the 2.The plug is not correctly wired. -
Page 9: Clause
CLAUSE 9 MACHINE FIXING ONTO FLOOR LOCATION For a good functioning the machine must be fixed onto floor with expansion dowels. SAFE DISTANCE: 1)Drill the floor with a helical concrete bit with a diameter of 15 For the safe and ergonomic use of the mm. -
Page 10: Clause
CLAUSE 10 OPERATIONS AND USE CONNECTING THE DEFECTIVE RIM TO THE FLANSH Clean the muds and the balance weights from the rim. Choose suitable sized Tight the connecting flansh and connecting flansh for the rim. fasten to the suitable canals on the flansh. -
Page 11: Clause
OPERATIONS AND USE RIM REPAIRING POSITIONS 1) With the help of double impact cylinder, it can press both as pulling and as pushing. 2) Moving thrusting part to left, right, up and down, can do the best repairing process. 3) Damages on rim from in to out, out to in, front and back can be pressed as shown in the figure. OPERATIONS AND USE ***When repairing iron rims use also the manuel handle plus to the pres. -
Page 12: Clause
ROUTINE MAINTENANCE CLAUSE 11 To gurantee the efficiency of the machine and for its correct functioning is essential to carry out routine cleaning and maintenance. Routine maintenance must be carried out by the user according to the maker’s instruction. Before starting any cleaning or maintenance switch off the main switch and remove the mains plug from socket. EVERY DAY... -
Page 13: Electric Curcuıt Plan
MADDE 13 CLAUSE 13 ELECTRICAL PLAN V U W SWITCH... -
Page 14: Demontage Plan And Spare Parts List
CLAUSE 14 DEMONTAGE PLAN... - Page 16 JUMBO DOUBLE PARTS LİST PART. NR. DESCRIPTION 84 01 000 Lower Body Group 84 01 001 Body Group 84 01 003 Fixing Plate Of Drawer Slider 84 01 004 Lower Body Cover 01 0073 016 Imbus Bolt Screw 01 0200 02 Switch.
- Page 17 84 03 003 Sport Skidding Metal Sheet 84 03 004 Sport Handling Axle 84 03 005 Bearing Stopping Plate 84 03 006 Supporting Plate For Arm Connection 01 0112 08 Washer 01 0073 025 Imbus Bolt Screw 01 0064 025 Bolt 01 0112 10 Washer...
- Page 18 84 04 010 Hose Fixing Plate 84 02 002 Hose Clamp 01 0072 020 Imbus Bolt Screw 01 0114 04 Bakelite Bolt 01 0117 014 Fiber Nut 01 0065 070 Bolt 01 0069 3-4 Bolt 01 0112 3-4 Washer 01 0117 3-4 Fiber Nut 01 0112 14 Washer...
