Acorn Meridian Edge 3802 Installation, Operation & Maintenance Manual

Please visit www.acorneng.com
for most current specifications.
MERIDIAN-EDGE
MODEL 3802
®
CORTERRA
ADA/OBC COMPLIANT

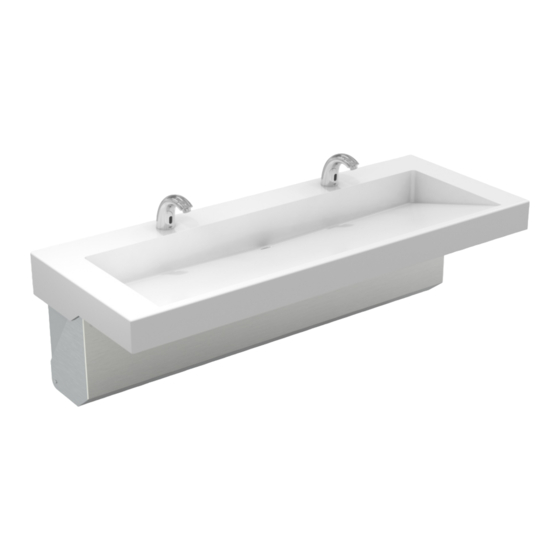

WASH BASIN

TABLE OF CONTENTS

Prior to Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Accessibility Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 12
Finished Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 16
Cleaning and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Components & Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 21
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
REQUIRED ITEMS FOR INSTALLATION - NOT SUPPLIED
Chalk Line
?
Hammer
?
Carpenters Level
?
1/2" NPS Supply Angle Stops
?
7/16" Hex Wrench
?
Plumbers Putty
?
Part #: 6216-011-000
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
®
TOLL FREE 800-743-8259 • LOCAL 626-855-4866 • FAX 626-855-4863
Teflon Tape
?
9/16" (8 Count) Fixture Wall Anchors and
?
Anchoring Hardware (and Appropriate Tools)
9/32" (10 Count) Fixture Wall Anchors and
?
Anchoring Hardware (and Appropriate Tools)
A C O R N E N G I N E E R I N G C O M P A N Y
P. O . B O X 3 5 2 7 • C I T Y O F I N D U S T R Y, C A 9 1 7 4 4 U . S . A .
T O L L F R E E 8 0 0 - 4 8 8 - 8 9 9 9 : : L O C A L 6 2 6 - 3 3 6 - 4 5 6 1
FA X 6 2 6 - 9 6 1 - 2 2 0 0 : : w w w. a c o r n e n g . c o m
ACORN ENGINEERING FIELD SERVICE
Page 1 of 22
Date Revised: 08/02/19
