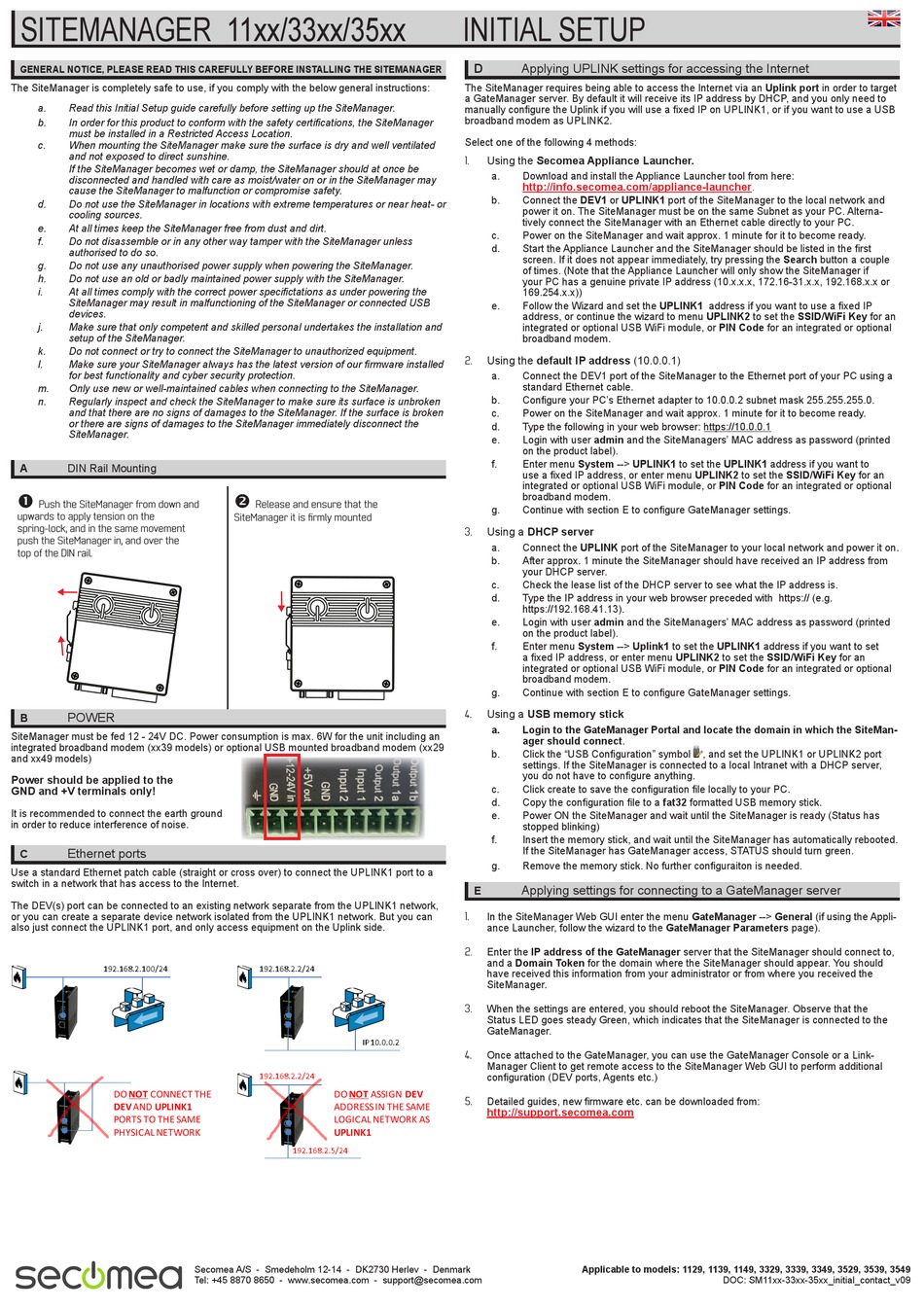

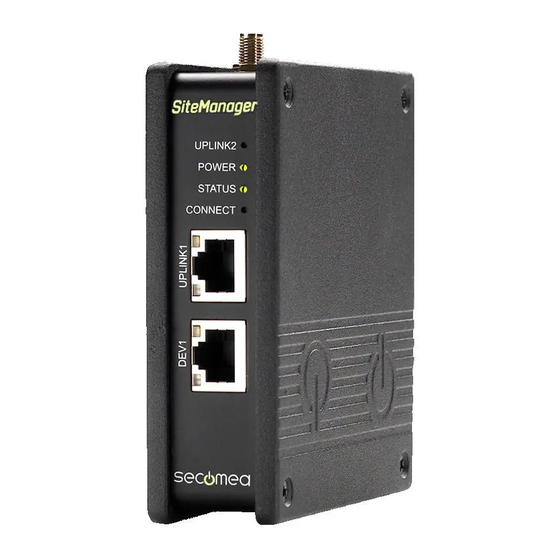

Secomea 1129 Initial Setup

SITEMANAGER 11xx/33xx/35xx

GENERAL NOTICE, PLEASE READ THIS CAREFULLY BEFORE INSTALLING THE SITEMANAGER

The SiteManager is completely safe to use, if you comply with the below general instructions:
a. Read this Initial Setup guide carefully before setting up the SiteManager.
b. In order for this product to conform with the safety certifications, the SiteManager
must be installed in a Restricted Access Location.
c. When mounting the SiteManager make sure the surface is dry and well ventilated
and not exposed to direct sunshine.
If the SiteManager becomes wet or damp, the SiteManager should at once be
disconnected and handled with care as moist/water on or in the SiteManager may
cause the SiteManager to malfunction or compromise safety.
d. Do not use the SiteManager in locations with extreme temperatures or near heat- or
cooling sources.
e. At all times keep the SiteManager free from dust and dirt.
f. Do not disassemble or in any other way tamper with the SiteManager unless
authorised to do so.
g. Do not use any unauthorised power supply when powering the SiteManager.
h. Do not use an old or badly maintained power supply with the SiteManager.
i. At all times comply with the correct power specifictations as under powering the
SiteManager may result in malfunctioning of the SiteManager or connected USB
devices.
j. Make sure that only competent and skilled personal undertakes the installation and
setup of the SiteManager.
k. Do not connect or try to connect the SiteManager to unauthorized equipment.
l. Make sure your SiteManager always has the latest version of our firmware installed
for best functionality and cyber security protection.
m. Only use new or well-maintained cables when connecting to the SiteManager.
n. Regularly inspect and check the SiteManager to make sure its surface is unbroken
and that there are no signs of damages to the SiteManager. If the surface is broken
or there are signs of damages to the SiteManager immediately disconnect the
SiteManager.
A

DIN Rail Mounting


Push the SiteManager from down and
upwards to apply tension on the
spring-lock, and in the same movement
push the SiteManager in, and over the
top of the DIN rail.

POWER

B
SiteManager must be fed 12 - 24V DC. Power consumption is max. 6W for the unit including an
integrated broadband modem (xx39 models) or optional USB mounted broadband modem (xx29
and xx49 models)
Power should be applied to the
GND and +V terminals only!
It is recommended to connect the earth ground
in order to reduce interference of noise.

Ethernet ports

C
Use a standard Ethernet patch cable (straight or cross over) to connect the UPLINK1 port to a
switch in a network that has access to the Internet.
The DEV(s) port can be connected to an existing network separate from the UPLINK1 network,
or you can create a separate device network isolated from the UPLINK1 network. But you can
also just connect the UPLINK1 port, and only access equipment on the Uplink side.
192.168.2.100/24
DO NOT CONNECT THE
DEV AND UPLINK1
PORTS TO THE SAME
PHYSICAL NETWORK

Release and ensure that the
SiteManager it is firmly mounted
192.168.2.2/24
IP 10.0.0.2
192.168.2.2/24
DO NOT ASSIGN DEV
ADDRESS IN THE SAME
LOGICAL NETWORK AS
UPLINK1
192.168.2.5/24
Secomea A/S - Smedeholm 12-14 - DK2730 Herlev - Denmark
Tel: +45 8870 8650 - www.secomea.com - support@secomea.com
INITIAL SETUP
D

Applying UPLINK settings for accessing the Internet

The SiteManager requires being able to access the Internet via an Uplink port in order to target
a GateManager server. By default it will receive its IP address by DHCP, and you only need to
manually configure the Uplink if you will use a fixed IP on UPLINK1, or if you want to use a USB
broadband modem as UPLINK2.
Select one of the following 4 methods:
Using the Secomea Appliance Launcher.
1.
a. Download and install the Appliance Launcher tool from here:
http://info.secomea.com/appliance-launcher.
b. Connect the DEV1 or UPLINK1 port of the SiteManager to the local network and
power it on. The SiteManager must be on the same Subnet as your PC. Alterna-
tively connect the SiteManager with an Ethernet cable directly to your PC.
c. Power on the SiteManager and wait approx. 1 minute for it to become ready.
d. Start the Appliance Launcher and the SiteManager should be listed in the first
screen. If it does not appear immediately, try pressing the Search button a couple
of times. (Note that the Appliance Launcher will only show the SiteManager if
your PC has a genuine private IP address (10.x.x.x, 172.16-31.x.x, 192.168.x.x or
169.254.x.x))
e. Follow the Wizard and set the UPLINK1 address if you want to use a fixed IP
address, or continue the wizard to menu UPLINK2 to set the SSID/WiFi Key for an
integrated or optional USB WiFi module, or PIN Code for an integrated or optional
broadband modem.
Using the default IP address (10.0.0.1)
2.
a. Connect the DEV1 port of the SiteManager to the Ethernet port of your PC using a
standard Ethernet cable.
b. Configure your PC's Ethernet adapter to 10.0.0.2 subnet mask 255.255.255.0.
c. Power on the SiteManager and wait approx. 1 minute for it to become ready.
d. Type the following in your web browser: https://10.0.0.1
e. Login with user admin and the SiteManagers' MAC address as password (printed
on the product label).
f. Enter menu System --> UPLINK1 to set the UPLINK1 address if you want to
use a fixed IP address, or enter menu UPLINK2 to set the SSID/WiFi Key for an
integrated or optional USB WiFi module, or PIN Code for an integrated or optional
broadband modem.
g. Continue with section E to configure GateManager settings.
Using a DHCP server
3.
a. Connect the UPLINK port of the SiteManager to your local network and power it on.
b. After approx. 1 minute the SiteManager should have received an IP address from
your DHCP server.
c. Check the lease list of the DHCP server to see what the IP address is.
d. Type the IP address in your web browser preceded with https:// (e.g.
https://192.168.41.13).
e. Login with user admin and the SiteManagers' MAC address as password (printed
on the product label).
f. Enter menu System --> Uplink1 to set the UPLINK1 address if you want to set
a fixed IP address, or enter menu UPLINK2 to set the SSID/WiFi Key for an
integrated or optional USB WiFi module, or PIN Code for an integrated or optional
broadband modem.
g. Continue with section E to configure GateManager settings.
Using a USB memory stick
4.
a. Login to the GateManager Portal and locate the domain in which the SiteMan-
ager should connect.
b. Click the "USB Configuration" symbol
settings. If the SiteManager is connected to a local Intranet with a DHCP server,
you do not have to configure anything.
c. Click create to save the configuration file locally to your PC.
Copy the configuration file to a fat32 formatted USB memory stick.
d.
e. Power ON the SiteManager and wait until the SiteManager is ready (Status has
stopped blinking)
f. Insert the memory stick, and wait until the SiteManager has automatically rebooted.
If the SiteManager has GateManager access, STATUS should turn green.
g. Remove the memory stick. No further configuraiton is needed.

Applying settings for connecting to a GateManager server

E
In the SiteManager Web GUI enter the menu GateManager --> General (if using the Appli-
1.
ance Launcher, follow the wizard to the GateManager Parameters page).
Enter the IP address of the GateManager server that the SiteManager should connect to,
2.
and a Domain Token for the domain where the SiteManager should appear. You should
have received this information from your administrator or from where you received the
SiteManager.
3. When the settings are entered, you should reboot the SiteManager. Observe that the
Status LED goes steady Green, which indicates that the SiteManager is connected to the
GateManager.
4. Once attached to the GateManager, you can use the GateManager Console or a Link-
Manager Client to get remote access to the SiteManager Web GUI to perform additional
configuration (DEV ports, Agents etc.)
5. Detailed guides, new firmware etc. can be downloaded from:
http://support.secomea.com
Applicable to models: 1129, 1139, 1149, 3329, 3339, 3349, 3529, 3539, 3549
, and set the UPLINK1 or UPLINK2 port
DOC: SM11xx-33xx-35xx_initial_contact_v09
