Summary of Contents for Sytech Prism Series

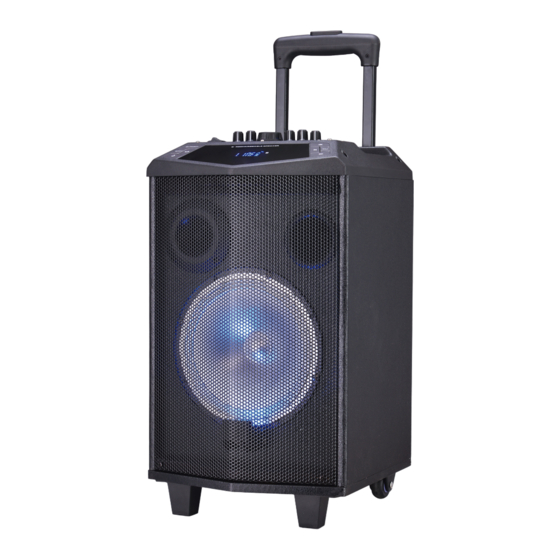

- Page 1 U S E R MA N U A L P R O F E S S I O N A L A C O U S T I C S Y S T E M S Y · X T R 2 2...
-
Page 2: Safety Precautions
Read this manual carefully before using this item and its components. They contain instructions on how to use this product in a safe and effective manner. SYTECH cannot be responsible for problems resulting from failure to observe the instructions in this manual. -
Page 3: Charging The Speaker
Heat. Do not locate the appliance in the vicinity of a heat surface or in direct sunlight. Accessories. Use only supplied accessories Battery. Avoid overcharging. The battery could overheat. Replace battery. The built-in rechargeable battery is not replaceable. Do not remove or replace the battery, do not throw in the trash or in the fire. -
Page 4: Remote Control Functions
Remote Control Functions Mute Input Selection Increase Volume Play/pause Previous Decrease Volume Next LED light control Repeat Record/Playback recording Previous Folder Next Folder ***This picture is for reference purposes only. Under normal circumstances, the remote control should be aimed directly at the receiving window of the unit from about 6 meters and within a 30°... -
Page 5: Functions And Connections
Functions and connections 1. DC 9V IN 12. TF slot 2. MIC Slot 13. USB slot 3. MIC Volume 14. Power Switch 4. Echo 15. Repeat 5. Volume 16. MIC Priority 6. Bass 17. Previous 7. Treble 18. Input Selection 8. -
Page 6: Wireless Microphone
Guitar Guitar Jack: Connect your guitar through the jack which is placed on the top part of the unit. Guitar VOL: Adjust the volume level to the desired level using the Guitar VOL +/- buttons on the unit. USB and TF Make sure your Micro-SD cart (TF Card) or USB stick is formatted as FAT32. -
Page 7: Recording Function
If the microphone stops working or emitting sound, it is recommended to replace the batteries as soon as possible. This device does not support 2 wireless microphones simultaneously. The wireless microphone (included) can work simultaneously with a microphone connected ... -
Page 8: Main Technical Specifications
FM function Choose “INPUT” to switch between FM/BT/USB modes (in this case choose FM) Choose “SCAN” for automatic channel searching and saving. Choose “PREV“ or “NEXT” to switch channels. A maximum of 40 presets can be stored Channels will be stored automatically in the order of the channels scanned. -
Page 9: Troubleshooting
• Above specifications are the specifications of SY-XTR22 “Prism Series” and are for reference purpose only. • Due to continuous product development, specifications may be subject to change without prior notification. • Do not expose to adverse weather conditions (Such as rain or high temperatures) as it can... -
Page 10: Declaration Of Conformity
Tel: 902 430 967 Fax: 91 8864285 NIF: B83254763 Manufacturing country: China Description: Trolley Speaker Sytech® SY-XTR22 complies with the following directives: RED Standard: Directive 2014/53/EU ROHS Standard: Directive 2011/65/EU Restriction of Hazardous Substances Signed: Ajeet Nebhwani Utamchandani Sole Administrator...
