OWNER'S MANUAL & ASSEMBLY INSTRUCTIONS
IN FI N I T Y
CO R N ER

Advertisement

loading
Need help?

Need help?

Do you have a question about the Infinity Corner and is the answer not in the manual?

Questions and answers

Related Manuals for ziva Infinity Corner

Summary of Contents for ziva Infinity Corner

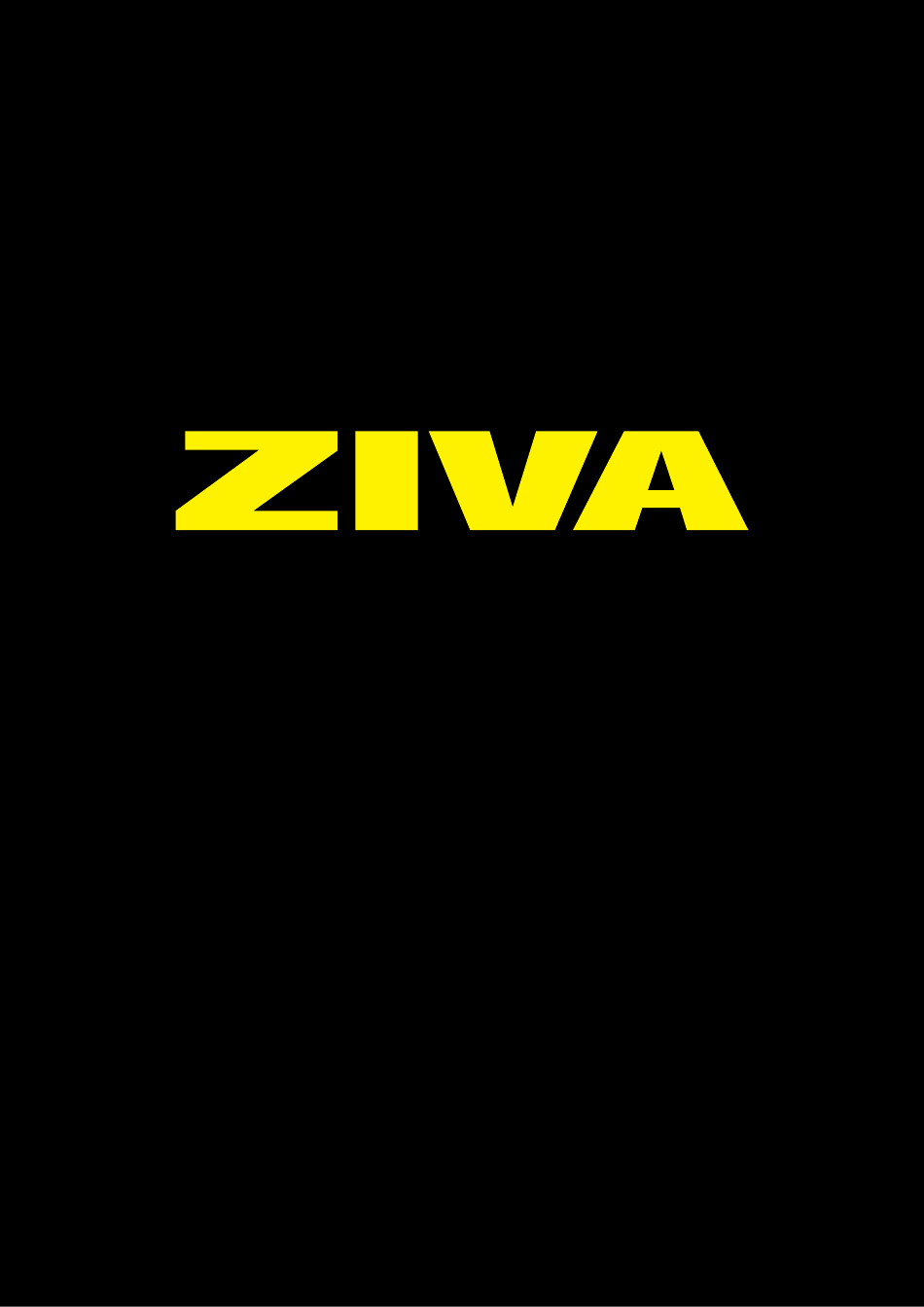

  • Page 1 OWNER’S MANUAL & ASSEMBLY INSTRUCTIONS IN FI N I T Y CO R N ER...
  • Page 2 INDEX SAFETY INFORMATION AND GENERAL USER MANUAL INFINITY CORNER OVERALL VIEW 9-10 PRODUCT COMPONENTS 11-12 FIXING 13-15 COMPONENTS ASSEMBLING TOOLS 16-18 ASSEMBLY 19-30 INSTRUCTION CONTROL AND MAINTENANCE 31-32 33-34 WARRANTY...
  • Page 3 SAFETY INFORMATION GENERAL USER MANUAL...
  • Page 4 Stop the training and consult your doctor if you feel weakness, dizziness or pain during training. Attention: ZIVA shall not be held liable for installations made by installers/assemblers who are not authorized by ZIVA. In case of any doubts, do not hesitate to contact the ZIVA...
  • Page 5 SAFETY 1 INSTRUCTION INFORMATION U S E TH E EQ UI P M EN T O NLY A S I ND I C ATED I N T HE IN S TR UC TI O NS A ND ON LY FO R THE E XE RC I S E S IT IS M EA NT FOR .
  • Page 6 SAFETY 7 CLIMBING INFORMATION D O N OT C LI M B UP THE E QU I P M ENT: TH I S M AY CA USE SER I O US I N JU RY O R DE ATH . GENERAL USER MANUAL 8 INSTALLATION - IF TH E EQ UI P M E NT I S I NS TAL LE D ON H AR D SUR-...
  • Page 7 SAFETY 11 CHECK INFORMATION - BE FOR E US E C HE C K I F AN Y EL EM E NT I S LO OS ENED, WO R N, O R DA MA GE D. GENERAL USER MANUAL - C HE C K W EL DE D JO I NTS FO R P OS SI B LE W EA R. - EN SU RE TH AT THE RE A RE N O P RO TRU DI N G BOLT S , SCRE WS , ED GE S, N UTS , ETC .
  • Page 8 SAFETY 17 CAUTION INFORMATION - TO A VOI D I N JU RI E S, E X AM I NE I F THE RE A RE A NY PR O TRUD I NG P A RTS O R SH AR P E DG ES TH AT COUL D G ET C A UG HT ONTO C L OTH I NG O R OTH ER O BJ E CT S.
  • Page 9 INFINITY CORNER...

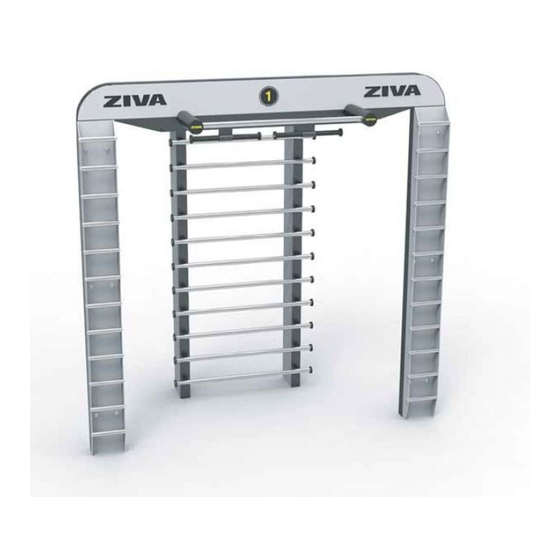

  • Page 10 I NF I N I T Y C O R NER COLUMN JUNCTION MODULE TERMINAL - LEFT CORNER BEAM GYM WALL BAR CORNER JUNCTION MODULE TRAINING BAR LATERAL BAR FOR CORNER JUNCTION MODULE TERMINAL - RIGHT...
  • Page 11 PRODUCT COMPONENTS...
  • Page 12 I NF I N I T Y C O R NER DESCRIPTION DESCRIPTION PLASTIC SPACER FOR WALL BAR COLUMN 2500mm PEG FOR WALL BAR CORNER BEAM 2750mm JUNCTION MODULE FOR CORNER FIXING SUPPORT FOR WALL BAR PEG CIRCULAR DECAL 49 JUNCTION MODULE TERMINAL - RIGHT JUNCTION MODULE TERMINAL - LEFT DECAL STRIPE FOR COLUMN 1 TO 6...
  • Page 13 FIXING COMPONENTS...
  • Page 14 FIXING C O M PO N ENT S FLOOR FIXING EXPANSION ANCHOR ANCHOR SIZE TENSILE STREGHT Nmax (kN)
  • Page 15 FIXING C O M PO N ENT S FLOOR FIXING CHEMICAL ANCHORS HARDENING AND APPLICATION TIME RESIN TEMP APPLICATION TIME HARDENING TIME UNIVERSAL CHEMICAL ANCHOR APPLICATION AREAS: - Heavy anchors in full supports - Universal use: one anchor for all types of support - High resistance to atmospheric agents - High resistance to high temperatures WARNING:...
  • Page 16 ASSEMBLING TOOLS...
  • Page 17 ASSEMBLING T O O L S BETA 920/50 BETA 920/22 RATCHET ½” EXTENSION 250mm ½” cod.009200871 cod.009200826 BETA 720/21 BETA 42 EXTENSION 125mm ½” KEY COMBINED 22mm cod.007200822 cod.000420022 BETA 42 BETA 42 KEY COMBINED 17mm KEY COMBINED 19mm cod.000420017 cod.000420019 BETA 42 BETA 720...
  • Page 18 ASSEMBLING T O O L S 1-10-280 MM.18 STANLEY CUTTER STRIPER STANLEY COBRA MM.250 M18 FIW P 12 –OX TONGS ELETRIC SCREWDRIVER KNIPEX MILWAUKEE M18 CHX-OX CORDLESS ROTARY GENIE LIFT MILWAUKEE SLA 10 GENIE...
  • Page 19 ASSEMBLY INSTRUCTION...
  • Page 20 ASSEMBLY INST RU CTION STEP 1 FIX THE FIRST COLUMN WITH CHEMICAL ANCHORS STEP 2 FIX THE RIGHT COLUMN AT A DISTANCE OF 2500mm FROM THE CENTER OF THE PILLAR BASE PLATE...
  • Page 21 ASSEMBLY INST RU CTION STEP 3 FIX THE OTHER REAR COLUMNS FOLLOWING THE QUOTES BELOW STEP 4 FIX THE OTHER REAR COLUMN AT A DISTANCE OF 920mm FROM THE CENTER OF THE REAR COLUMN PLATE...
  • Page 22 ASSEMBLY INST RU CTION STEP 5 LIFT THE AERIAL BEAM AND PLACE THE SECTION ON THE TOP OF THE FRONT COLUMNS STEP 6 TIGHT THE SCREWS AND BOLTS OF THE CORNER BEAM...
  • Page 23 ASSEMBLY INST RU CTION STEP 7 PLACE THE CORNER JUNCTION ALIGINING THE HOLES ON THE BOTTOM OF THE BEAM AND ON THE TOP OF THE REAR COLUMNS STEP 8 TIGHT THE SCREWS AND BOLTS OF THE CORNER JUNCTION...
  • Page 24 ASSEMBLY INST RU CTION STEP 9 PLACE AND FIX THE LEFT AND RIGHT CORNER JUNCTION TERMINALS ON THE BOTTOM OF THE CORNER BEAM STEP 10 INSERT THE LATERAL PEG TO THE CORRESPONDING HOLES AND LOCK IT WITH THE SUPPLIED GRAINS...
  • Page 25 ASSEMBLY INST RU CTION STEP 11 INSERT THE PEG SUPPORT TO THE CORRESPONDING HOLE AND FIX IT WITH THE SUPPLIED SCREWS STEP 12 FIX ALL THE PEGS SUPPORTS REPEATING THE STEP 11...
  • Page 26 ASSEMBLY INST RU CTION STEP 13 INSERT THE ALL THE PLASTIC SPACERS ON THE PEGS SUPPORTS STEP 14 INSERT ALL THE PEGS ON THE PEGS SUPPORTS TOWARD THE CORRESPONDING HOLES...
  • Page 27 ASSEMBLY INST RU CTION STEP 15 INSERT THE PLASTIC CAPS WITH ADAPTORS AND SCREWS SUPPLIED AND FIX THEM ON BOTH SIDES OF THE PEG. MAKE SURE THAT THE SCREWS MATCH THE HOLES ON THE PEGS SUPPORTS. STEP 16 FIX THE CAPS ON ALL THE REMAINING PEGS...
  • Page 28 ASSEMBLY INST RU CTION STEP 17 FIX THE CAPS ON BOTH SIDES OF CORNER JUNCTION TUBE AND INSERT THE TRAINING BARS CAPS STEP 18 INSERT THE MALE-FEMALE COVER SUPPORTS ON BOTH SIDES OF THE COLUMN AND TIGHT THE COMPONENTS...
  • Page 29 ASSEMBLY INST RU CTION STEP 19 INSERT ALL THE MALE-FEMALE COVER SUPPORTS ON THE CORNER BEAM AND ALL THE REMAINING COLUMNS STEP 20 PLACE THE CORRESPONDING FRAME COVER AND FIX IT WITH THE SUPPLIED SCREWS...
  • Page 30 ASSEMBLY INST RU CTION STEP 21 PLACE ALL THE CORRESPONDING FRAME COVERS AND FIX THEM WITH THE SUPPLIED SCREWS STEP 22 PLACE ALL THE DECALS ON THE BOTH SIDES OF THE COLUMNS AND BEAM. MAKE SURE THAT ALL THE COVERS HOLES ARE COVERED.
  • Page 31 CONTROL MAINTENANCE...
  • Page 32 CONTROL AND MAINTENANCE I NF I N I T Y CO R N E R TIGHTENING TIGHTENING TIGHTENING VERIFICATION VERIFICATION VERIFICATION STABILITY CHECK MONTHS MONTHS MONTHS L ater al Bars Wall B ar Suppo r ts B ea m s W all Bar Pegs M ini G y m Wall Ba r C ol um ns...

  • Page 33: Warranty

    WARRANTY...
  • Page 34 (except for mechanical damages on surfaces) - On wear parts: 6 months (e.g. straps, hand grips, hand caps, rubber and elastic parts, etc.). - In case the equipment needs to be returned to ZIVA CUSTOMER SERVICE TRANSPORTATION for repairing, ZIVA will cover transportation costs during the first 12 months.
  • Page 35 ZIVA HO NO. 98 YAN PING ROAD, BLOCK C SHANGHAI, 2000042 CHINA Vat number: 913100003205104565 sales@zivalife.com - www.zivalife.com...
