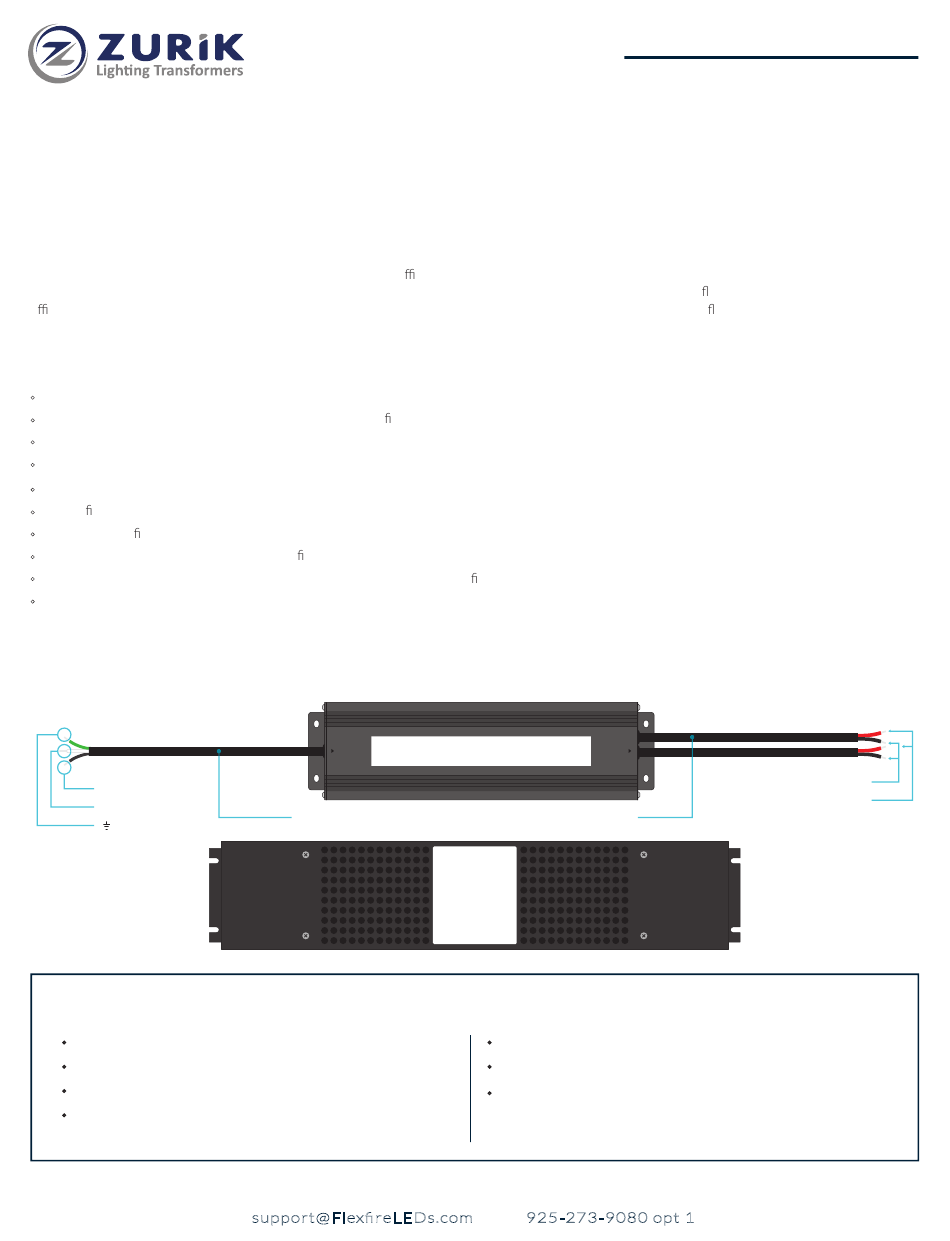

INTRODUCTION
The Zurik® EMLV Dimmable Driver is the most versatile and e cient dimmable electronic driver for single color output LED strips. This driver has
a high power factor of 0.99, a universal input and perfect compatibility with a wide range of dimmers for icker free lighting. Its high power
e ciency, wide voltage input, and quiet operation make the EMLV the professional's choice when it comes to awless dimming.
SAFETY AND WARNINGS
•
Install in accordance with the National Electric Code (NEC) Article 450, and local regulations.
•
This product should be installed and serviced by a quali ed electrician.
•
Install in a well ventilated area free from explosive gases and vapors.
•
Do not reverse the line voltage polarity upon installation. This will damage the driver.
•
Risk of electric shock: When used outdoors, install only on a circuit protected by a Class A GFCI.
•
Risk of re: Special rated wire required for installations inside walls and building structures.
•
Consult a quali ed electrician.
•
Only use with compatible dimmable LED xtures.
•
Dimmer switches have minimum load requirements. Review the speci cations of the compatible dimmer.
•
Modifying or disassembling this product beyond these instructions will void the product warranty.
(L) Live Channel
(N) Neutral Channel
( ) Ground Channel
Additional Features
• Constant voltage output
• Easy installation
• Cooling by free air convection
• Compatible with most forward phase, magnetic low voltage,
reverse phase, and electronic low voltage dimmers
Z RK-E MLV 2-300W-XXDC-J
ZURIK® EMLV 12V & 24V 300W LED DRIVER
Low Voltage LED Driver
Do not install in wet locations. Install only in dry or damp locations.
*
The 24V version comes with one Outlet Power Wire instead of two
AC
Input Power Wire
support@FlexfireLEDs.com
DRIVER
DC
Output Power Wires
• Flicker-free dimming
• Suitable for LED lighting and sign applications among other uses

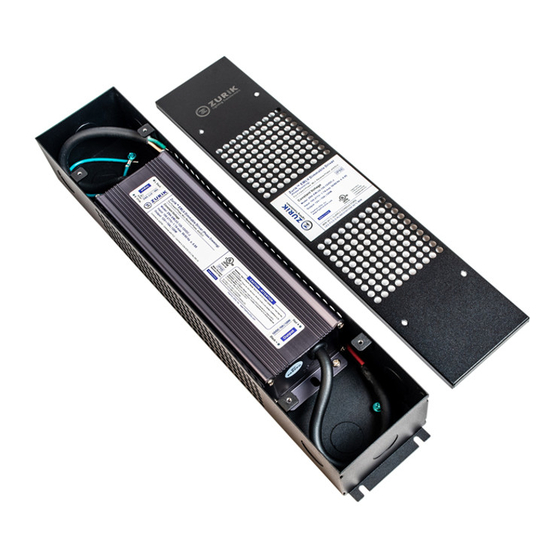

• Comes with junction box:
D: 2 5/16" (59mm)
925-273-9080 opt 1
ZURIK® EMLV LED Driver 300W
User Guide
Negative Channel (-)
Positive Channel (+)
H: 17 13/16" (453mm) W: 3 3/8" (86mm)
1
page
V.2021.10.13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMLV LED Driver 300W and is the answer not in the manual?

Questions and answers

Summary of Contents for Zurik EMLV LED Driver 300W

  • Page 1 INTRODUCTION The Zurik® EMLV Dimmable Driver is the most versatile and e cient dimmable electronic driver for single color output LED strips. This driver has a high power factor of 0.99, a universal input and perfect compatibility with a wide range of dimmers for icker free lighting. Its high power e ciency, wide voltage input, and quiet operation make the EMLV the professional’s choice when it comes to awless dimming.
  • Page 2 User Guide • ZURIK® EMLV LED Driver 300W Details SKU: ZRK-EMLV2-300W-XXDC-J Working Humidity: 20 ~ 90%RH. Non condensing IP66 (indoor and outdoor) -40°F ~ 176°F (-40°C ~ 80°C), Ingress Protection: Storage Temp. and 10 ~ 95%RH Humidity: 110 - 277 VAC Input Voltage: ±0.03% /°C [32°F ~ 122°F (0 ~ 50°C)]...

  • Page 3: Derating Curve

    User Guide • ZURIK® EMLV LED Driver 300W DERATING CURVE Ambient Temperature (°C) To extend the power supply’s life, refer to the Derating Curve above and derate according to the ambient temperature YOU’LL NEED Small at-head screwdriver (4mm) Wire strippers or scissors...

  • Page 4: Installation

    User Guide • ZURIK® EMLV LED Driver 300W INSTALLATION Always pre-test your LED setup prior to permanent installation. This will ensure all components work correctly. Be sure to check the wattage pull of the LED strip you’ve purchased so the driver isn’t overloaded (Max. 270W). Turn o the main AC breaker for the line you’ll be using before install- ing your EMLV driver.
  • Page 5 User Guide • ZURIK® EMLV LED Driver 300W Connect Outbound LED Wires (24VDC) Turn Power On Look at your LED strips carefully and identify the positive (+) and Turn the main breaker for the AC line back on to power your EMLV negative (-) channels.
  • Page 6 User Guide • ZURIK® EMLV LED Driver 300W Forward Input Model Number Phase Model Wattage Dimming Voltage or Reverse (Dimmer) Range Phase Nova T NTLV-600-277-WH 450W 277V 1-100% Forward Phase Skylark S-600PR-WH 600W 100-130V 0-100% Forward Phase Skylark SCL-153PR-WH 150W...

  • Page 7: Wiring Diagrams

    User Guide • ZURIK® EMLV LED Driver 300W WIRING DIAGRAMS • Using a single driver AC Dimmer Zurik EMLV Dimmable Power Supply Input Output Zurik EMLV Dimmable Home Automation Power Supply System Output Input • Using multiple drivers Zurik EMLV Dimmable...

  • Page 8: Troubleshooting

    User Guide • ZURIK® EMLV LED Driver 300W Zurik EMLV Dimmable AC Dimmer Power Supply Black Zurik EMLV Dimmable Power Supply (Lutron & Clipsal C-Bus System) Zurik EMLV Dimmable Power Supply N Blue DL/SL1 Zurik EMLV Dimmable Power Supply LUTRON...

  • Page 9: Warranty Information

    User Guide • ZURIK® EMLV LED Driver 300W WARRANTY INFORMATION Limited Warranty: This product has a 7 year limited warranty from the date of shipment. This warranty only includes the main product outlined in this speci- cation sheet and does not include the additional accessories that are used as a reference. Complete warranty details for xtures and additional accessories are available at https://www.
