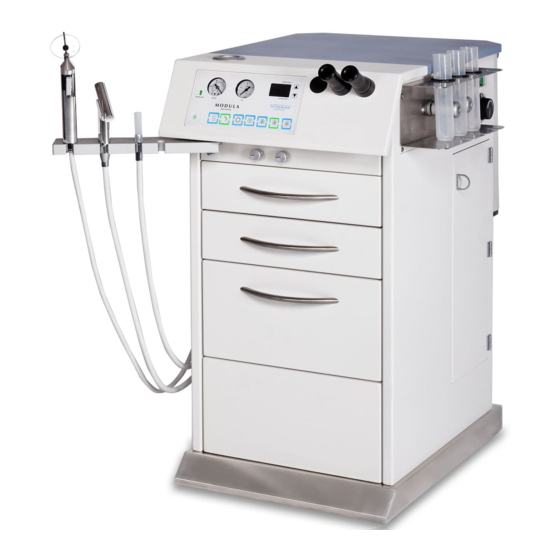

HEINEMANN MODULA MINI User Manual

Ent diagnostic & treatment unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER`S MANUAL
ENT Diagnostic & Treatment Unit
MODULA mini
0482

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODULA MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for HEINEMANN MODULA MINI

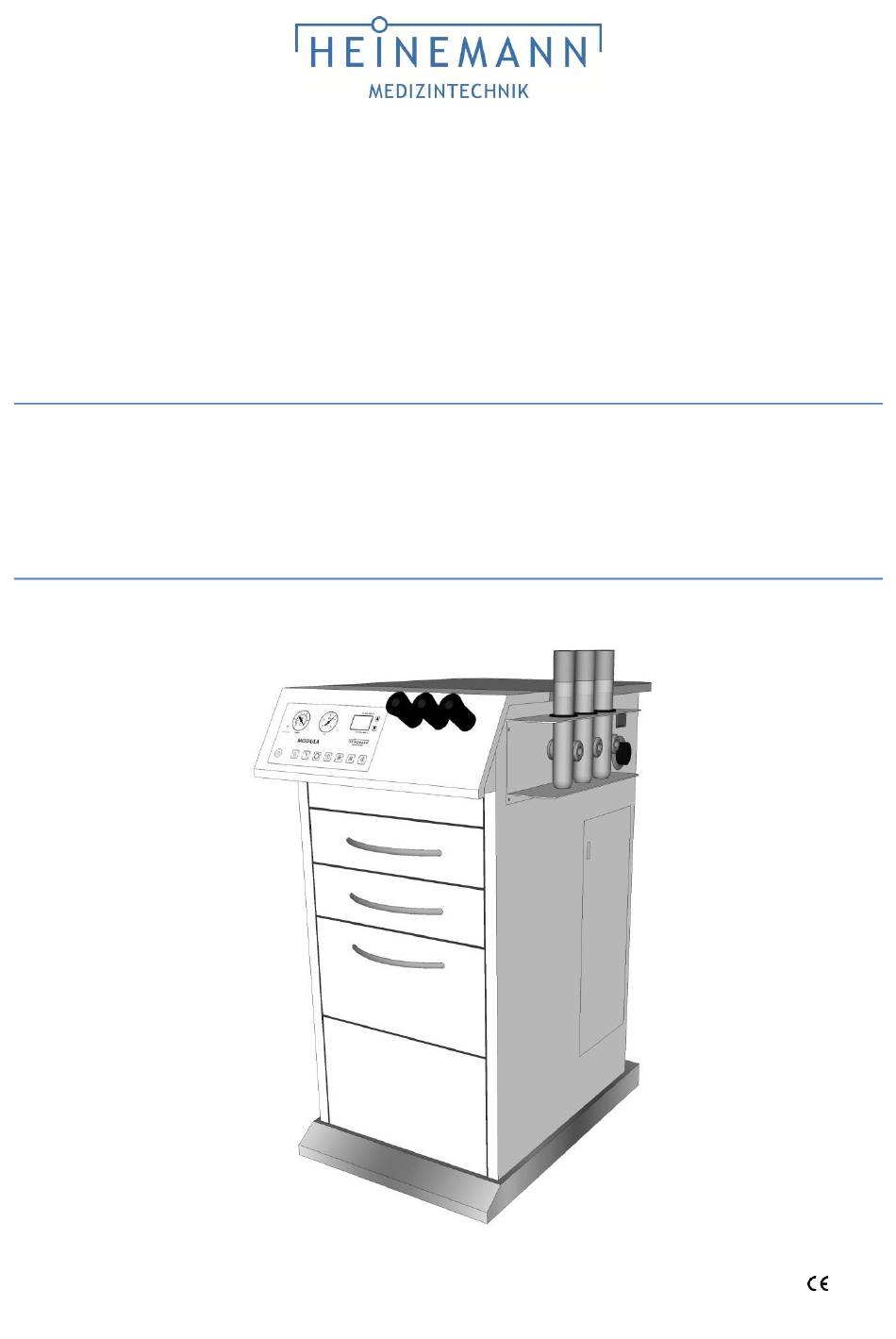

  • Page 1 USER`S MANUAL ENT Diagnostic & Treatment Unit MODULA mini 0482...
  • Page 2 G. Heinemann Medizintechnik GmbH MODULA mini User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 3: Introduction

    MODULA mini Introduction Thank you for choosing to purchase the MODULA mini treatment unit. Its modular design allows the unit to be used for a wide range of applications in every practice or hospital. These operating instructions contain information on operation, care and simple maintenance tasks. All of the information on the following pages relates to a MODULA unit fitted with all optional items of equipment.

  • Page 4: Table Of Contents

    Replacing the halogen lamp ......................19 Cleaning the water filter ........................20 Replacing fuses ..........................22 Hygiene ..............................23 Guarantee ..............................24 Annex ................................ 25 Technical details ..........................25 Figures ............................. 25 Consumables & spare parts ......................27 User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 5: General Notes For Usage

    General notes for usage The MODULA treatment unit may only be used by persons offering a guarantee of correct usage of the device and who have been instructed in its use. Instruction may only be given by authorised G. Heinemann Medizintechnik GmbH personnel.

  • Page 6: Indications / Contraindications

    Episodes of acute vertigo Otitis externa Tympanoplasties Compressed air: Intracranial injuries Orbit (eye socket) injuries CSF fistula Following middle ear surgery Sinusitis Purulent rhinorrhoea Petrous fracture Should require further information, please contact sales service office. Telephone: +49 4191-95379-0 User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 7: Delivery And Unpacking

    Connecting and setting up the unit Caution! G. Heinemann Medizintechnik accepts no liability for the safety or proper function of the device where it has been installed, extended or repaired by persons who have not been authorised by the manufacturer.

  • Page 8: Safety Instructions

    Heinemann Medizintechnik is not liable for bodily injury or damage to property in the event that parts other than original Heinemann parts are used, in the event of failure to observe the instructions for use given in these operating instructions or if the device has been assembled, reinstalled, modified, extended or repaired by persons not authorised by Heinemann.

  • Page 9: Note On Operation

    3 seconds. The buttons will cease to be illuminated and the on button will be colored blue. Note: always deactivate the unit by touching the stand-by button before turning off at the main power switch. Fig. 3: Glass display User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 10: Mirror Warmer

    A red warning light on the control panel indicates that the reservoir is full. The reservoir must be emptied when this warning light is illuminated. Fig. 6: Right cover with the reservoir User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 11: Suction With „Sekretomatik" System (Option)

    Optional manual suction pressure control, allowing the required suction pressure to be controlled using a control knob or an Fig. 9: Glass display adapted “Fingertip” (fig. 7), can be ordered separately. User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 12: Cold Light Sources (Option)

    Save energy by only activating the cold light source when it is really needed. This also extends the life of the lamps. Caution! Never direct the light beam directly into the eyes! Fig. 13: Light cable User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 13: Compressed Air Unit (Option)

    45° C. Caution! Check the water temperature before Fig. 17: Glass display using the ear irrigation system. Check the temperature display and run some water over the back of your hand if necessary. User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 14: Ear Irrigation With Autonomous Water System (Option)

    The water jet must not be directed directly at the eardrum. Flow rate is adjusted using the lever on the water handpiece, max. 400 ml/min. (fig. 20). You have to change the water cannula Fig. 20: Water handpiece after each patient! User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 15: Tube Rinsing System (Option)

    The ‘Suction reservoir full’ light on the control panel will flash alternately red and green. The tube rinsing system will in this case be deactivated). This may be repeated, but should not be repeated User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 16: Laryngoscope/ Endoscope Holders (Option)

    Unheated endoscope holders are also available. Caution! Only endoscopes which are suitable for warming should be placed in these holders. Caution! Before using on patients, please check the temperature of the endoscope. Fig. 25: Thermostat User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 17: Maintenance And Repair

    Extra care is required when using flammable liquids. Do not allow any liquid to run into the device. Clean the surface of the MODULA mini using a soft cloth soaked in a non-aggressive cleaning agent or disinfectant. Do not use ammonia-containing (e.g. Sidolin) or abrasive cleaning agents, as they will destroy the painted surface over time.

  • Page 18: Changing The Bacteria Filter

    Emptying the suction reservoir If your MODULA mini has a manual suction reservoir, it must be emptied at least once a day at the end of the day, and more frequently if it becomes full (indicated by a warning lamp).

  • Page 19: Optical Cable

    Unplug the treatment unit at the mains. To check that the unit is not under electrical tension, turn it on at the main power switch. Caution! Allow the halogen lamp to cool for at least 15 minutes before replacing, as it may be very hot. User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 20: Cleaning The Water Filter

    Cleaning the water filter To prevent blockages or problems in the water system, the waste water filter (fig. 31) should be checked and cleaned as necessary each time the device is serviced. Fig. 31: Water filter User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 21 30 minutes to allow the water heater unit to cool. The procedure for cleaning the filter is as follows: Unscrew the retaining screws on the rear of the unit using a screwdriver. Fig. 32: Back cover Fig. 33: Water filter with water manometer User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 22: Replacing Fuses

    A complete electrical circuit diagram, including fuse diagram, is printed on the inside of the hatch. Fig. 34: MODULA mini, top view The blown fuse should be located using the circuit diagram and replaced with an identical fuse (same fuse rating).

  • Page 23: Hygiene

    (especially enterobacteriaceae, pseudomonads), especially when prepared in contaminated containers and stored for long periods. Exact dosing of disinfectants is required for effective disinfection and to prevent selection of micro-organisms and development of disinfectant resistance. (Source: RKI) User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 24: Guarantee

     the treatment unit is used in accordance with these operating instructions Caution! Repairs to the MODULA treatment unit may only be carried out by G. Heinemann Medizintechnik GmbH or agents expressly authorised to carry out such work. User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)

  • Page 25: Annex

    Weight: approx. 60 kg Dimensions (W x H x D): 410 x 780 x 585 mm Power cabel and AquaStop-Valve: 2 m Connections: Water supply and drainage hoses: 2 m Figures Fig. 37: Connection plan User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 26 G. Heinemann Medizintechnik GmbH MODULA mini Fig. 38: MODULA mini, front view 1: Water handpiece, 2: Compressed air handpiece, 3: Suction handpiece, 4: Mirror heater, 5: Endoscope holder, 6: Manometer, 7: Quivers for disinfection, 8: Secret glass, 9: Swiveling arm, 10: Main switch Fig.

  • Page 27: 8.3 Consumables & Spare Parts

    Endoscope quiver MOD13-06104 Suction system Silicon tubes for suction hose (10 pcs.) MOD21-08619 210-0770572 Overflow-/ bacterial filter (for units after 2011), 1 Stück Fingertips for the temporary reduction of the suction performance 0120-50100 (100 pcs.) User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 28 Politzer olives (plastic), large 0140-21303 Spray bottle for fluids, complete (glass and sprayer) 0140-60101 Spray bottle for powder, complete (glass and sprayer) 0140-60102 Sprayer for fluids 0140-60103 Sprayer for powder 0140-60105 Spray bottle glass 0140-60104 User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 29 G. Heinemann Medizintechnik GmbH MODULA mini Fig. 40: MODULA mini, front User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 30 G. Heinemann Medizintechnik GmbH MODULA mini Fig. 41: MODULA mini, perspective User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 31 G. Heinemann Medizintechnik GmbH MODULA mini User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
  • Page 32 G. Heinemann Medizintechnik GmbH MODULA mini Manufacturer: G. Heinemann Medizintechnik GmbH Leibnizstraße 13-15 24568 Kaltenkirchen GERMANY Phone: +49 4191-95379-0 Fax: +49 4191-9537937 E-Mail: info@heinemann-ent.de Web: www.heinemann-ent.de User`s manual MODULA mini (HM_TK_GA-mini_28062013_06_EN)
