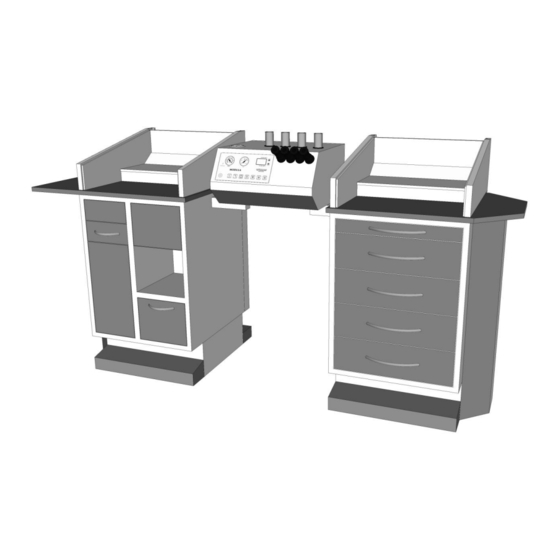

HEINEMANN MODULA Duo User Manual

Ent diagnostic & treatment unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER`S MANUAL
ENT Diagnostic & Treatment Unit
MODULA Duo
0482

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODULA Duo and is the answer not in the manual?

Questions and answers

Summary of Contents for HEINEMANN MODULA Duo

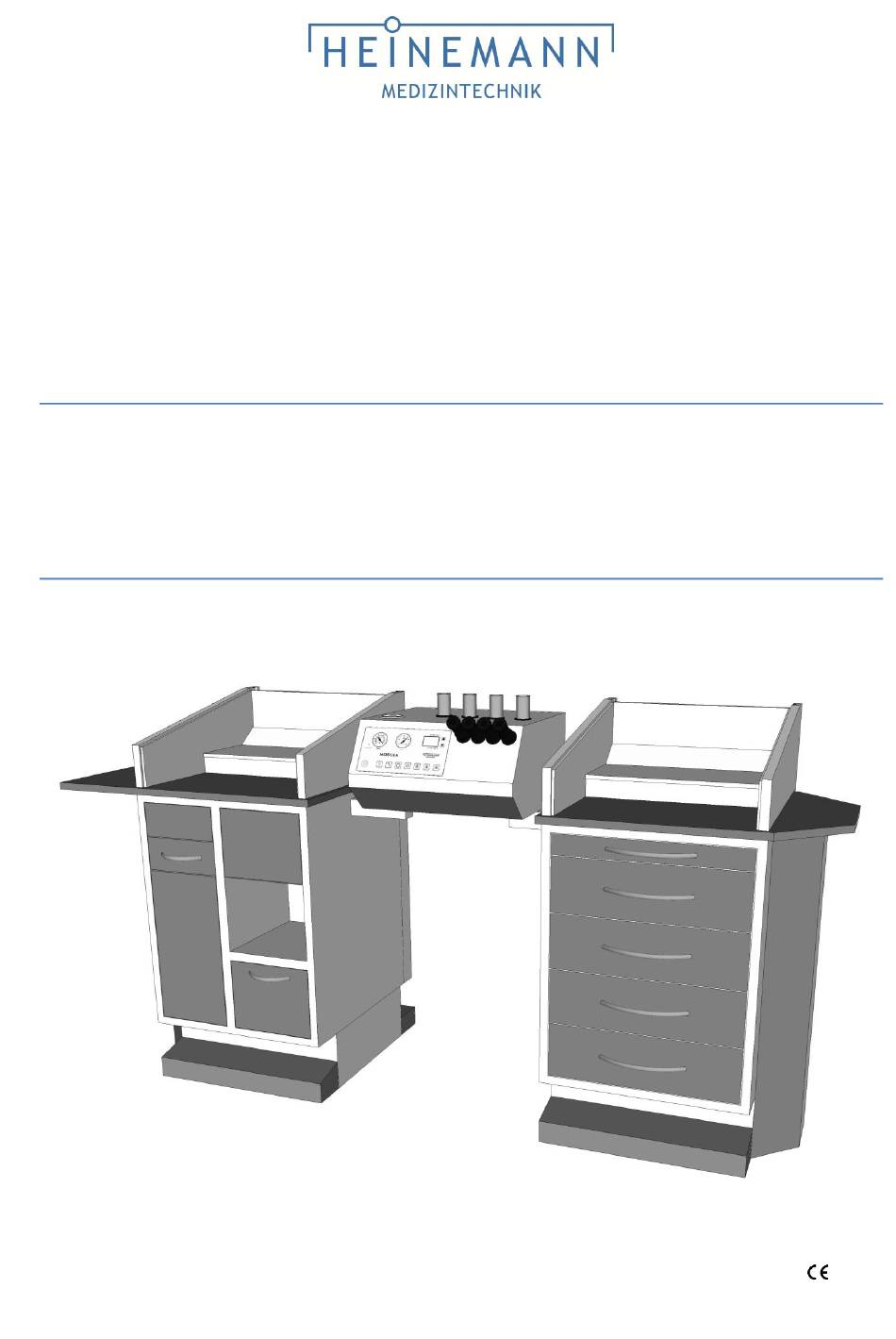

  • Page 1 USER`S MANUAL ENT Diagnostic & Treatment Unit MODULA Duo 0482...
  • Page 2 G. Heinemann Medizintechnik GmbH MODULA Duo User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 3: Introduction

    MODULA Duo Introduction Thank you for choosing to purchase the MODULA Duo treatment unit. Its modular design allows the unit to be used for a wide range of applications in every practice or hospital. These operating instructions contain information on operation, care and simple maintenance tasks. All of the information on the following pages relates to a MODULA unit fitted with all optional items of equipment.

  • Page 4: Table Of Contents

    Replacing the halogen lamp ....................... 19 Cleaning the water filter ......................20 Replacing fuses .......................... 22 Hygiene ............................... 23 Guarantee ............................24 Annex ..............................25 Technical details ......................... 25 Figures ............................25 Consumables & spare parts ....................... 27 User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 5: General Notes For Usage

    95379-0 Caution! G. Heinemann Medizintechnik accepts no liability for the safety or proper function of the device where it has been installed, extended or repaired by persons who have not been authorised by the manufacturer or if the device is used incorrectly or other than as described in the operating instructions.

  • Page 6: Indications / Contraindications

    Compressed air: Intracranial injuries Orbit (eye socket) injuries CSF fistula Following middle ear surgery Sinusitis Purulent rhinorrhoea Petrous fracture Should you require any further information, please contact our sales and service office. Telephone: +49 4191-95379-0 User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 7: Delivery And Unpacking

    Connecting and setting up the unit Caution! G. Heinemann Medizintechnik accepts no liability for the safety or proper function of the device where it has been installed, extended or repaired by persons who have not been authorised by the manufacturer.

  • Page 8: Safety Instructions

    Heinemann Medizintechnik is not liable for bodily injury or damage to property in the event that parts other than original Heinemann parts are used, in the event of failure to observe the instructions for use given in these operating instructions or if the device has been assembled, reinstalled, modified, extended or repaired by persons not authorised by Heinemann.

  • Page 9: Note On Operation

    3 seconds. The buttons will cease to be illuminated and the on button will be colored blue. Fig. 3: Glass display Note: always deactivate the unit by touching the stand-by button before turning off at the main power switch. User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 10: Mirror Heater

    The reservoir will otherwise continue to fill until the overflow prevention mechanism is triggered. A red warning light on the control panel indicates that the reservoir is full. The reservoir must be emptied when this warning light is illuminated. Fig. 6: Glass display User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 11: Suction With „Sekretomatik" System (Option)

    Optional manual suction pressure control, allowing the required suction pressure to be controlled using a control knob or an adapted “Fingertip” (fig. 7), can be ordered separately. Fig. 9: Glass display User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 12: Cold Light Sources (Option)

    Save energy by only activating the cold light source when it is really needed. This also extends the life of the lamps. Fig. 13: Light cable Caution! Never direct the light beam directly into the eyes! User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 13: Compressed Air Unit (Option)

    45° C. Caution! Check the water temperature before using the ear irrigation system. Check the Fig. 17: Glass display temperature display and run some water over the back of your hand if necessary. User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 14: Ear Irrigation With Autonomous Water System (Option)

    The irrigation system should be deactivated when not in use. This saves energy and extends the lifespan of the pump. Caution! The water jet must not be directed Fig. 21: Water handpiece directly at the eardrum. User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 15: Tube Rinsing System (Option)

    0.5 s. The suction tube is rinsed alternately with water and disinfectant (from the disinfectant container) for 5 s. (an error will be registered if the rinsing nozzle is activated before the suction unit. The ‘Suction reservoir full’ light on the control panel will flash User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 16: Laryngoscope/ Endoscope Holders (Option)

    4.12 Heated instrument tray (option) On units with a heated instrument tray, the temperature of the tray can be controlled via a thermostat. The thermostat is located at the rear of the unit (fig. 27). Fig. 27: Thermostat User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 17: Maintenance And Repair

    Extra care is required when using flammable liquids. Do not allow any liquid to run into the device. Clean the surface of the MODULA Duo using a soft cloth soaked in a non-aggressive cleaning agent or disinfectant. Do not use ammonia-containing (e.g. Sidolin) or abrasive cleaning agents, as they will destroy the painted surface over time.

  • Page 18: Changing The Bacteria Filter

    Emptying the suction reservoir If your MODULA Duo has a manual suction reservoir, it must be emptied at least once a day at the end of the day, and more frequently if it becomes full (indicated by a warning lamp).

  • Page 19: Replacing The Waste Bag

    Unplug the treatment unit at the mains. To check that the unit is not under electrical tension, turn it on at the main power switch. Caution! Allow the halogen lamp to cool for at least 15 minutes before replacing, as it may be very hot. User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 20: Cleaning The Water Filter

    The device must be permitted to cool down before replacing defective halogen lamps, as the lamps may be very hot. Use only lamps which conform to the device specifications. Fig. 31: MODULA Duo, Control panel Caution! Use only 15 V/ 150 VA halogen lamps.
  • Page 21 5. Keep a couple of cloths to hand to catch any remaining water in the filter and carefully rotate the transparent plastic cover anti-clockwise. 6. Remove the filter cartridge and rinse with tap water until free of dirt particles. If severely contaminated, replace the filter element. 7. Reassemble by following the reverse procedure. User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 22: Replacing Fuses

    A complete electrical circuit diagram, including fuse diagram, is printed on the inside of the hatch. Fig. 35: Back of MODULA Duo The blown fuse should be located using the circuit diagram and replaced with an identical fuse (same fuse rating).

  • Page 23: Hygiene

    Exact dosing of disinfectants is required for effective disinfection and to prevent selection of micro- organisms and development of disinfectant resistance. (Source: RKI) User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 24: Guarantee

     the treatment unit is used in accordance with these operating instructions Caution! Repairs to the MODULA treatment unit may only be carried out by G. Heinemann Medizintechnik GmbH or agents expressly authorised to carry out such work. User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 25: Annex

    1870 x 970 x 545 mm Power cabel and AquaStop-Valve: 2 m Connections: Water supply and drainage hoses: 2 m Temperature: +5° to +35°C, Humidity: 30 to 65% Ambient conditions: Figures Fig. 38: Connection plan User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
  • Page 26 1: Button „Mirror heater“, 2: Button „Ear rinsing“, 3: Button „Option“, 4: Buttons „Cold light sources“, 5: Endoscope holder, 6: Mirror heater, 7: Quiver for endoscope disinfection, 8: Holder for light cable, 9: Manometer, 10: Regulation of light intensity, 11: Cold light output adapter User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)

  • Page 27: Consumables & Spare Parts

    Endoscope quiver MOD13-06104 Suction system Silicon tubes for suction hose (10 pcs.) MOD21-08619 210-0770572 Overflow-/ bacterial filter (for units after 2011), 1 Stück Fingertips for the temporary reduction of the suction performance 0120-50100 (100 pcs.) User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
  • Page 28 Politzer olives (plastic), large 0140-21303 Spray bottle for fluids, complete (glass and sprayer) 0140-60101 Spray bottle for powder, complete (glass and sprayer) 0140-60102 Sprayer for fluids 0140-60103 Sprayer for powder 0140-60105 Spray bottle glass 0140-60104 User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
  • Page 29 G. Heinemann Medizintechnik GmbH MODULA Duo User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
  • Page 30 G. Heinemann Medizintechnik GmbH MODULA Duo User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
  • Page 31 G. Heinemann Medizintechnik GmbH MODULA Duo User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
  • Page 32 G. Heinemann Medizintechnik GmbH MODULA Duo Manufacturer: G. Heinemann Medizintechnik GmbH Leibnizstraße 13-15 24568 Kaltenkirchen GERMANY Phone: +49 4191-95379-0 Fax: +49 4191-9537937 E-mail: info@heinemann-ent.de Web: www.heinemann-ent.de User`s manual MODULA Duo (HM_TK_GA-Duo_28062013_08_EN)
