Summary of Contents for Winsen ME3-CL2

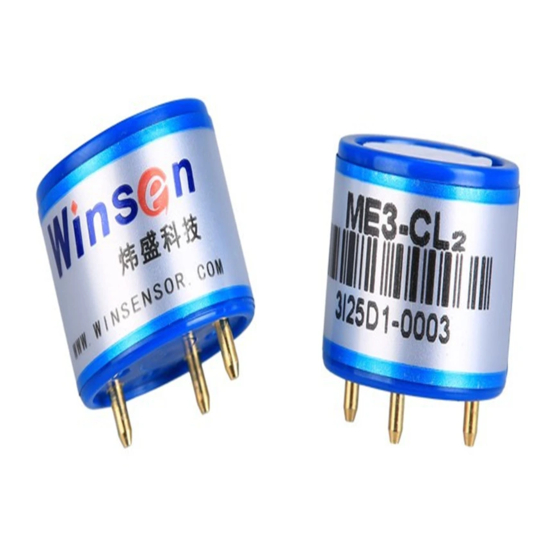

- Page 1 ME3-CL2 Electrochemical Chlorine Gas Sensor Manual (Model：ME3-CL2) Zhengzhou Winsen Electronics Technology Co., Ltd...
- Page 2 Statement This manual copyright belongs to Zhengzhou Winsen Electronics Technology Co., LTD. Without the written permission, any part of this manual shall not be copied, translated, stored in database or retrieval system, also can’t spread through electronic, copying, record ways.
- Page 3 Chlorine Gas Sensor ME3-Cl ME3-CL2 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
- Page 4 Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com 5. Characterization Sensitivity, response and output signal features Data graph of concentration linearity features V0 change upon variable temperature Sensitivity upon variable temperature 6. Basic Circuit Tel: 0086-371-67169097/67169670 Fax: 0086-371-60932988 Email: sales@winsen-sensor.com...
- Page 5 Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com 7. Anti-Interference ME3-CL2 sensor also responds to other gases besides target gas. Below are the response characteristics of interferential gases. Concentration ME3-Cl 15ppm <-3ppm 200ppm 0ppm 35ppm 0ppm 5ppm 10ppm 0ppm 400ppm 0.1ppm...
- Page 6 Zhengzhou Winsen Electronics Technology Co., Ltd www.winsen-sensor.com Blowhole of the sensor should not be blocked and polluted, which will cause the sensitivity decrease. Excessive impact or vibration should be avoided. Do not use the sensor when the shell is damaged.
