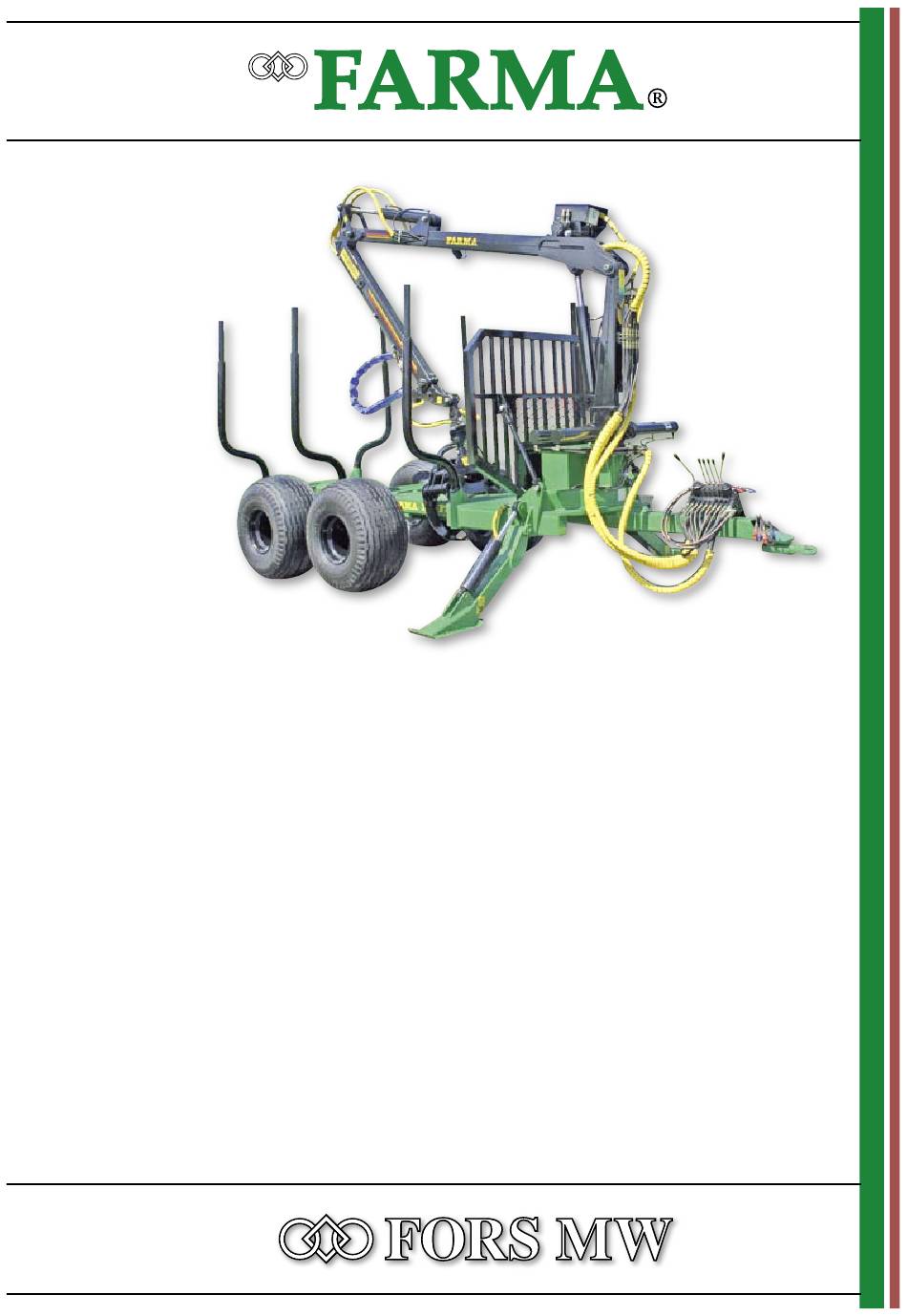

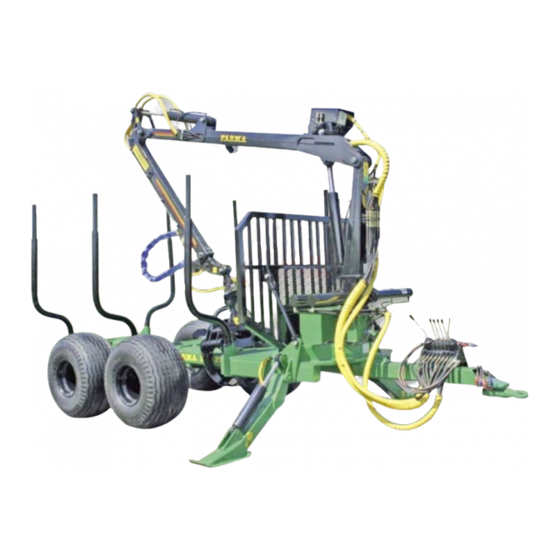

- Page 1 This picture shows CT 6,5–10 D INSTRUCTION BOOK FARMA T 14 4WD SERVICE AND SPARE PARTS...
-
Page 2: Table Of Contents
OPERATING INSTRUCTIONS................9 3.1. SAFETY ....................... 9 3.2. INSTRUCTIONS FOR SAFE OPERATION ..........10 3.3. WORKING AT EXTREME CONDITIONS ........... 11 MAINTENANCE INSTRUCTIONS..............11 4.1. SAFETY ..................... 11 4.2. LUBRICATION ................... 12 © 2005 FORS MW Ltd www.forsmw.com Page i... -
Page 3: Introduction
Even if you are experienced user of this kind of efficient and economical utilization. equipment, read this manual carefully. It is the operator duty to familiarize and obey all safety precautions and instructions carefully © 2005 FORS MW Ltd www.forsmw.com Page 1... -
Page 4: Technical Specification
TRAILER T 14 4 WD 2 TECHNICAL SPECIFICATION 2.1. CONSTRUCTION OF THE TRAILER © 2005 FORS MW Ltd www.forsmw.com Page 2... - Page 5 TRAILER T 14 4 WD © 2005 FORS MW Ltd www.forsmw.com Page 3...
-
Page 6: Sparepart List For Trailer T14 4Wd
Ø35x30 09038 FMW10-140000.000 Stabilizator left 09039 FMW10-140000.000-010 Stabilizator right 09040 FMW10-100200.000 Hydraulic cylinder 90x40x300 09041 MAP13-010050.000-050 09042 MAP13-000000.017 Distance ring 09043 MAP13-000000.002 09044 Split pin 4x50 Zn DIN 94 09045 Bush Ø50x40 © 2005 FORS MW Ltd www.forsmw.com Page 4... - Page 7 09082 MAP13-010050.000-060 09083 FMW 12-100100.000 Hydraulic cylinder left 63x32x30 09084 FMW 12-100100.000-010 Hydraulic cylinder right 63x32x30 09085 MAP14-000000.001 Distance ring 09086 MAP14-000000.002-010 09087 FMW 12-210000.000-010 Body left 09088 FMW 12-210000.000 Body right © 2005 FORS MW Ltd www.forsmw.com Page 5...
-
Page 8: Hydraulic Cylinders
0-ring 79,2×5,7 56210 0-ring 40,2×3,0 56211 Sealing SRA 90-5,1-2 56212 Sealing SRI 40-2,6-1,5 56213 Lock-ring SGH 55 56214 Lock-ring SGA 87 56215 Lock-ring N° 72310 56216 Grease-nipple 1/8" 56217 Joint bearing GE35ES © 2005 FORS MW Ltd www.forsmw.com Page 6... - Page 9 32,2-3,0 55706 Sealing SRA 63-5,1-1,5 55707 Sealing SRI 32-2,6-1,0 55707 Lock ring SGH 42 55708 Lock ring SGA 60 55708 Lock ring No 72240 55709 Grease nipple 1/8" 55709 Joint bearing GE25ES © 2005 FORS MW Ltd www.forsmw.com Page 7...
-
Page 10: Technical Data
Width, m Tyres 500/60-15,5 Tyre pressure, bar 3,3 — 4,8 Max operation pressure for traction, bar Max operation pressure for brakes, bar Speed with pump, 50 l/min, km/h Weight, kg 2 300 © 2005 FORS MW Ltd www.forsmw.com Page 8... -
Page 11: Operating Instructions
Support legs loading. Do not exceed maximum loading values. WHEN TRACTION IS ENGAGED, TRAILER CANNOT BE PULLED FASTER THAN PUMP OUTPUT ENABLES. MAXIMUM TRACTION SPEED AT PUMP CAPACITY 50 L/MIN IS 3 KM/HOUR. © 2005 FORS MW Ltd www.forsmw.com Page 9... -
Page 12: Instructions For Safe Operation
When working on a slanted surface load least work with extreme cautiousness. less than usual. ALWAYS ENGAGE THE BASE MACHINES PARKING BRAKES BEFORE LOADING WORKS. IF NECESSARY PUT SOME OBSTACLES IN FRONT OF WHEELS. © 2005 FORS MW Ltd www.forsmw.com Page 10... -
Page 13: Working At Extreme Conditions
Avoid getting oil into eyes. Use safety sure there is no pressure. goggles and gloves. Do not tighten or repair a leaking hydraulic couplings while the system is pressurized. © 2005 FORS MW Ltd www.forsmw.com Page 11... -
Page 14: Lubrication
TRAILER T 14 4 WD 4.2. LUBRICATION © 2005 FORS MW Ltd www.forsmw.com Page 12... - Page 15 Keep flammable material away from heat, and clothing. sparks and open fire. Do not let oil get into nature. Oil spilled into ground pollutes environment. It is recommended to use vegetable-based oil instead of mineral oil. © 2005 FORS MW Ltd www.forsmw.com Page 13...
