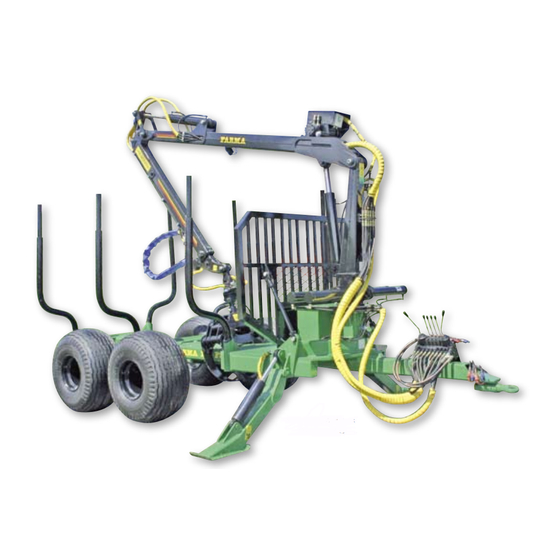

- Page 1 This picture shows CT 6,5–10 D INSTRUCTION BOOK FARMA CT 5,1–8 SERVICE AND SPARE PARTS...
- Page 2 This picture shows CT 6,5–10 D INSTRUCTION BOOK GRAPPLE LOADER FARMA C 5,1 D SERVICE AND SPARE PARTS...
-
Page 3: Table Of Contents
3.5 ACTING IN DANGEROUS SITUATION............22 3.6 WORKING AT EXTREME CONDITIONS ........... 26 MAINTENANCE INSTRUCTIONS............... 29 4.1 SAFETY ..................... 29 4.2 GENERAL ....................31 4.3 CHANGING HYDRAULIC COMPONENTS ..........33 4.4 LUBRICATION ................... 34 © 2005 FORS MW Ltd www.forsmw.com Page i... -
Page 4: Introduction
(see information that enables the loader to be used lubricating instructions). efficiently and safely. It is the operator duty to familiarize and obey all safety precautions and instructions carefully. © 2005 FORS MW Ltd www.forsmw.com Page 1... -
Page 5: Technical Specification
Forest Crane C 5,1D TECHNICAL SPECIFICATION 2.1 CONSTRUCTION OF THE LOADER © 2005 FORS MW Ltd www.forsmw.com Page 2... -
Page 6: Forest Crane C 5,1D Specification
L=5900 24748 L24.51-40 H-hose to beam L=3170 24749 L24.51-40 H-hose to beam L=3500 24750 L24.51-40 H-hose to rotator L=9100 24751 L24.51-40 H-hose to valve L=1500 24752 G. 0,16 H-hose to grapple L=500 © 2005 FORS MW Ltd www.forsmw.com Page 3... -
Page 7: Hydraulic Distributor Hc-D3M7
300130007 300130007 Gasket kit JSP13000251 JSP13000252 Directional control valve HC-D3M7 Pos. Quantity Code Description Dimension 430104001 Relief valve plugged 300004001 Plug 1/2'' GAS kit 3308 Pilot operated pressure relief valve (175) bar © 2005 FORS MW Ltd www.forsmw.com Page 4... - Page 8 320703001 Spool return action kit 5128 Anti-shock valve (175-A) bar 320230001 Check valve kit 5128 Anti-shock valve (175-A) bar 320703001 OR. Vl-6285 P5008 Green 64x3 412030802 P5008 423403013 Joystick rubber 320630001 Joystick control kit © 2005 FORS MW Ltd www.forsmw.com Page 5...
- Page 9 Forest Crane C 5,1D Directional control valve HC-D3M7 Pos. Quantity Code Description Dimension 320303001 Handle kit 320703001 Spool return action kit 320203001 Check valve kit © 2005 FORS MW Ltd www.forsmw.com Page 6...
- Page 10 Anti-shock valve (90-A) bar 320230001 Check valve kit 5128 Anti-shock valve (175-A) bar 320703001 Spool return action kit 412030802 O.R. Vt.6285 P5008 Green 64 x 3 423403013 Joystick rubber bellows 320630001 Joystick control kit © 2005 FORS MW Ltd www.forsmw.com Page 7...
- Page 11 Forest Crane C 5,1D Directional control valve HC-D3M7 Pos. Quantity Code Description Dimension 420630004 Outlet section © 2005 FORS MW Ltd www.forsmw.com Page 8...
- Page 12 Anti-shock valve (130-A) bar 320703001 Spool return action kit 412030802 O.R. Vl-6285 P5008 Green 64x3 423403013 Joystick rubber bellows 320630005 Joystick control floating kit 5128 Anti-shock valve (175-A) bar 5128 Anti-shock valve (175-A) bar © 2005 FORS MW Ltd www.forsmw.com Page 9...
- Page 13 Anti-shock valve (90-A) bar 320230001 Check valve kit 5128 Anti-shock valve (175-A) bar 320703001 Spool return action kit 412030802 OR. Vl-6285 P5008 Green 64x3 423403013 Joystick rubber bellows 320630005 Joystick control floating kit © 2005 FORS MW Ltd www.forsmw.com Page 10...
-
Page 14: Grapple Farma 0,16
Wall 37019006 FMW42-020000.000 Gripklo/inv. Grip inside 313116 FMW42-100100.000 Hydraulik cylinder Hydraulic Cylinder 63x32x160 37019025 FMW42-060000.000-010 Ledbult Axlebolt 37019035 FMW42-000000.002 Stång 37019044 FMW42-050000.000 Medbringare Tie-rod 37019024 FMW42-060000.000 Ledbult Axlebolt 37019045 FMW42-050000.000-010 Medbringare Tie-rod © 2005 FORS MW Ltd www.forsmw.com Page 11... -
Page 15: Hydraulic Cylinders
40,2×3,0 56506 Sealing SRA 90-5,1-1,5 56507 Sealing SRI 40-2,6-1,5 56507 Lock ring SGH 55 56508 Lock ring SGA 87 56508 Lock ring N° 72290 56509 Grease nipple 1/8" 56509 Joint bearing GE35ES © 2005 FORS MW Ltd www.forsmw.com Page 12... - Page 16 32,2-3,0 55406 Sealing SRA 63-5,1-1,5 55407 Sealing SRI 32-2,6-1,0 55407 Lock ring SGH 47 55408 Lock ring SGA 60 55408 Lock ring N 72240 55409 Grease nipple 1/8" 55409 Joint bearing GE30ES © 2005 FORS MW Ltd www.forsmw.com Page 13...
-
Page 17: Rotator Fmtr 30
Washer MTR 30.015-02 MTR 100.009 Spring MTR 30.011 Shim 835-02 TWVA 00500 V-seal 1.2.C6 Grease nipple MTR 30.013 Washer OR 116,00x2,50-N70 O-ring MT 0205 Nipple GHH/R 40/47,5x3,2 Glide ring TS 50/60x8 Seal © 2005 FORS MW Ltd www.forsmw.com Page 14... -
Page 18: Technical Data
Turning angle, ° Loader weight, kg Valve HC-D3M (2 joysticks + 3 levers) GRAPPLE, m 0,16 Opening, max, mm 1150 Opening, min, mm Weight, kg ROTATOR MTR 30 Revolving moment, Nm Weight, kg © 2005 FORS MW Ltd www.forsmw.com Page 15... -
Page 19: Working Area
Forest Crane C 5,1D 2.8 WORKING AREA © 2005 FORS MW Ltd www.forsmw.com Page 16... -
Page 20: Operating Instructions
Do not exceed maximum loading values. Do not use the loader for hauling. Do not be under a hanging load. © 2005 FORS MW Ltd www.forsmw.com Page 17... -
Page 21: Practising
Move control levers smoothly and steadily, avoid your control. Slewing right/left Grapple rotation left/right Right support Crane arm up/down Crane beam down/up leg down/up Left support leg Grapple open/ down/up close © 2005 FORS MW Ltd www.forsmw.com Page 18... -
Page 22: Instructions For Safe Operation
When working on a slanted surface do not charge with full lifting moment. work with extreme cautiousness. ALWAYS ENGAGE THE BASE MACHINES PARKING BRAKES BEFORE LOADING. IF NECESSARY PUT SOME OBSTACLES IN FRONT OF WHEELS © 2005 FORS MW Ltd www.forsmw.com Page 19... -
Page 23: Daily Inspections
Do not drop the load by opening the If the booms start descending due grapple! overloading try to transfer the load closer Do not jump out from vehicle. to the column; do not open the grapple. © 2005 FORS MW Ltd www.forsmw.com Page 20... -
Page 24: Working At Extreme Conditions
At exceptionally warm conditions beware of than it is recommended lift the lighter loads than hydraulic oils excessive heating. Too high oil temperature (higher +80° C ) degrades oil and usual. damages gaskets. © 2005 FORS MW Ltd www.forsmw.com Page 21... -
Page 25: Maintenance Instructions
Use correct tools. dedicated service personnel. Attempt to localize the defects aswell as possible, so you don’ t have to open the system unnecessarily. © 2005 FORS MW Ltd www.forsmw.com Page 22... -
Page 26: Changing Hydraulic Components
5. Withdraw the guide piece from the rod. 6. Change the guide piece seals; make sure that the piston rod seal is the right way round, i.e. the lip against the pressure (see figure). © 2005 FORS MW Ltd www.forsmw.com Page 23... -
Page 27: Lubrication
1 litre C 3,5 1 litre C 3,8 1 litre C 4,6 S 2,5 litre C 4,6 D 2,5 litre C 5,1 2,5 litre C 6,0 2,5 litre C 6,5 1 litre © 2005 FORS MW Ltd www.forsmw.com Page 24... - Page 28 This picture shows CT 6,5–10 D INSTRUCTION BOOK FARMA T 8 SERVICE AND SPARE PARTS...
- Page 29 OPERATING INSTRUCTIONS................6 3.1. SAFETY ....................... 6 3.2. INSTRUCTIONS FOR SAFE OPERATION ..........7 3.3. WORKING AT EXTREME CONDITIONS ............. 8 MAINTENANCE INSTRUCTIONS................ 8 4.1. SAFETY ....................... 8 4.2. LUBRICATION ..................... 9 © 2005 FORS MW Ltd www.forsmw.com Page i...
-
Page 30: Introduction
Even if you are experienced user of this kind of efficient and economical utilization. equipment, read this manual carefully. It is the operator duty to familiarize and obey all safety precautions and instructions carefully © 2005 FORS MW Ltd www.forsmw.com Page 1... -
Page 31: Technical Specification
TRAILER T 8 2 TECHNICAL SPECIFICATION 2.1. CONSTRUCTION OF THE TRAILER © 2005 FORS MW Ltd www.forsmw.com Page 2... -
Page 32: Sparepart List For Trailer T8
Plane washer Ø20 12036 12037 F11-140000.000 Stabilizer leg 12038 Bolt M24x80 12039 RF12.8,5 H-hose frame steering L=2460 12040 RF12.8,5 H-hose frame steering L=2700 12041 3P.8,5 H-hose stabilizer L=2880 12042 3P.8,5 H-hose stabilizer L=3500 © 2005 FORS MW Ltd www.forsmw.com Page 3... -
Page 33: Hydraulic Cylinders
O-ring 79,2×5,7 56106 O-ring 40,2×3,0 56106 Sealing SRA 90-5,1-1,5 56107 Sealing SRI 40-2,6-1,5 56107 Lock-ring SGH 55 56108 Lock-ring SGA 87 56108 Lock-ring N° 72290 56109 Grease-nipple 1/8" 56109 Joint bearing GE35ES © 2005 FORS MW Ltd www.forsmw.com Page 4... - Page 34 0-ring 52,2×5,7 55610 0-ring 32,2-3,0 55611 Sealing SRA 63-5,1-1,5 55612 Sealing SRI 32-2,6-1,0 55613 Lock-ring SGH 42 55614 Lock-ring SGA 60 55615 Lock-ring N 72240 55616 Grease-nipple 1/8" 55617 Joint bearing GE25ES © 2005 FORS MW Ltd www.forsmw.com Page 5...
-
Page 35: Technical Data
The vehicle must be on stable ground Use vehicles parking brakes during the and positioned securely. Support legs loading. Do not exceed maximum loading values. © 2005 FORS MW Ltd www.forsmw.com Page 6... -
Page 36: Instructions For Safe Operation
When working on a slanted surface load least work with extreme cautiousness. less than usual. ALWAYS ENGAGE THE BASE MACHINES PARKING BRAKES BEFORE LOADING WORKS. IF NECESSARY PUT SOME OBSTACLES IN FRONT OF WHEELS. © 2005 FORS MW Ltd www.forsmw.com Page 7... -
Page 37: Working At Extreme Conditions
Avoid getting oil into eyes. Use safety sure there is no pressure. goggles and gloves. Do not tighten or repair a leaking hydraulic couplings while the system is pressurized. © 2005 FORS MW Ltd www.forsmw.com Page 8... -
Page 38: Lubrication
Keep flammable material away from heat, and clothing. sparks and open fire. Do not let oil get into nature. Oil spilled into ground pollutes environment. It is recommended to use vegetable-based oil instead of mineral oil. © 2005 FORS MW Ltd www.forsmw.com Page 9... - Page 39 Mobilux EP2, Mobil Grease MP Special MOBIL SHELL Alvania EP Grease 2 Marfak Multi-Purpose 2, Molytex Grease 2 UNION/TEXACO PAY SPECIAL ATTENTION TO THE TOWBAR CYLINDER. GREASE IT AFTER EVERY 50 WORKING HOURS. © 2005 FORS MW Ltd www.forsmw.com Page 10...
