UPL16 USER GUIDE
UPL16 USER GUIDE
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPL16 and is the answer not in the manual?

Questions and answers

Summary of Contents for ECdesigns UPL16

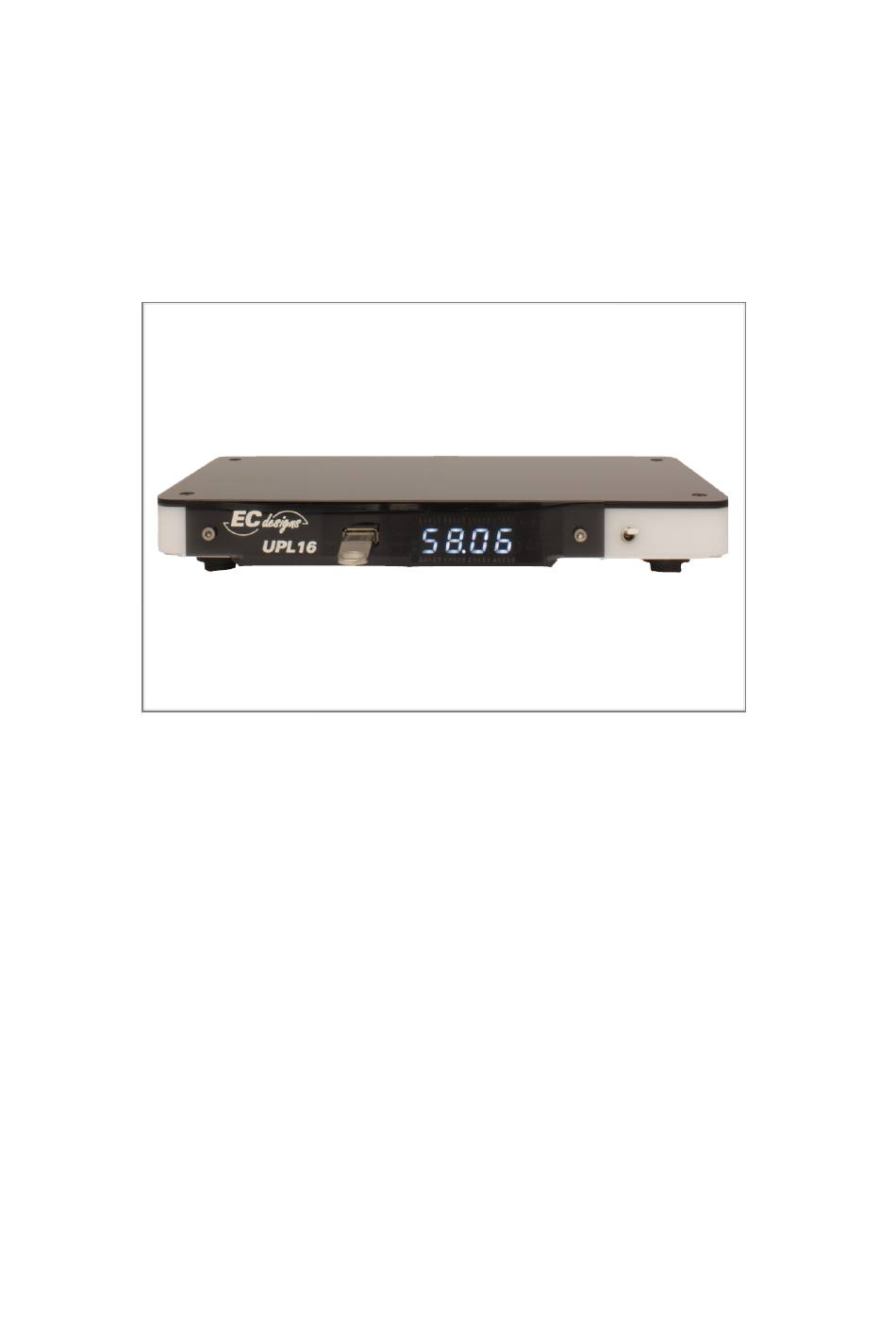

  • Page 1 UPL16 USER GUIDE UPL16 USER GUIDE...
  • Page 2 The UPL16 is equipped with a LiPo rechargeable battery with built-in overcharge and short protection circuit (PCM). Fire Hazard: Do not use batteries without built-in protection circuit, this is a fire hazard ! Fire Hazard: Do not puncture the UPL16 battery, this is a fire hazard ! UPL16 USER GUIDE...
  • Page 3 Connections Firmware update connector USB-A (Do not use for charging, this will prevent UPL16 from working correctly) Toslink 44-96 kHz optical digital output Push button for use with firmware update USB-A 5V DC 1A charger input ON = Battery connected to UPL16 but completely disconnected from charger
...
  • Page 4 Cables Standard Toslink cable Mini-Toslink (UTOS) Charging Cable USB-A to USB-B Charging Cable USB-A to USB mini B for remote control UPL16 USER GUIDE...
  • Page 5 Cable Use a thick and not too long USB A to USB B cable to charge the internal UPL16 battery.
 Use a thick and not too long USB A to USB mini B cable to charge the internal RC battery.
  • Page 6 For the side buttons, quickly press with finger towards (but not on) the middle of the key area. All functions of the UPL16 will be controlled by the RC. Functions of the upper multi-function key • previous/next CD •...
  • Page 7 When not playing, usb stick can be temporarily removed e.g. to lookup cd/track in PC and then can be re- inserted into UPL16, if id is the same as the id that was last in the UPL16 then the card is not re-read and will continue where left off.
  • Page 8 Sleep mode have to stop current file playing before you can activate sleep mode • You can wake the UPL16 from sleep by pressing any key on the RC, the next key press on the RC will have normal function •...
  • Page 9 Error messages The UPL16 will display an error message in case of a situation that might prevent the UPL16 from continuing.
 UPL16 error messages: E. 01 = NO OR INVALID ID (no id.txt found for card number) E. 10 = UNSUPPORTED SAMPLE-RATE/BIT-DEPTH (e.g. UPL16 can play 44.1/16 and 48/16, for all other sample-rates this error will be shown,...
  • Page 10 01 Sultans of Swing.wav structure 02 Love Over Gold.wav 03 Romeo & Juliet 04 Tunnel of Love (Intro_ The Carousel Waltz).wav 02 Dire Straits - Love Over Gold 01 Telegraph Road.wav 02 Private Investigations.wav 03 Industrial Disease.wav id.txt UPL16 USER GUIDE...
  • Page 11 Display Display for UPL16 Sleep mode 0.1.0.9. Track play 0 1.0 9 Error (example of .1 0 unsupported sample-rate) No card inserted -. -. -. -. Card Number (example) 0.0.0.1. Track time 0 4.2 1 UPL16 USER GUIDE...

  • Page 12: Specifications

    firmware update USB stick socket 1x USB A socket (front) canonical WAV (only header + data, no embedded track info) Supported file format http://www.lightlink.com/tjweber/StripWav/Canon.html 44.1 / 48 Supported sample rates Supported bit-depth 200 ppm (0,02%) Sample rate accuracy UPL16 USER GUIDE...
