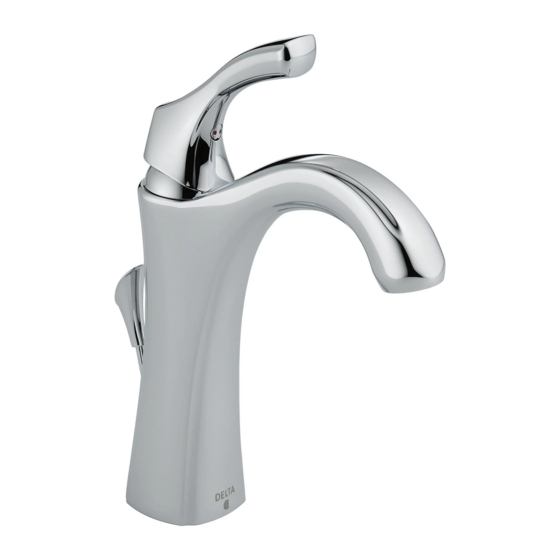

592-DST & 792-DST
Series/Series/Seria
®
Addison
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
READ ALL the instructions completely
before beginning.
READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave Delta
usted necesitará:
LEER TODAS las instrucciones completamente
antes de empezar.
LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
LIRE TOUTES les instructions avant de débuter;
LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
www.deltafaucet.com
61039

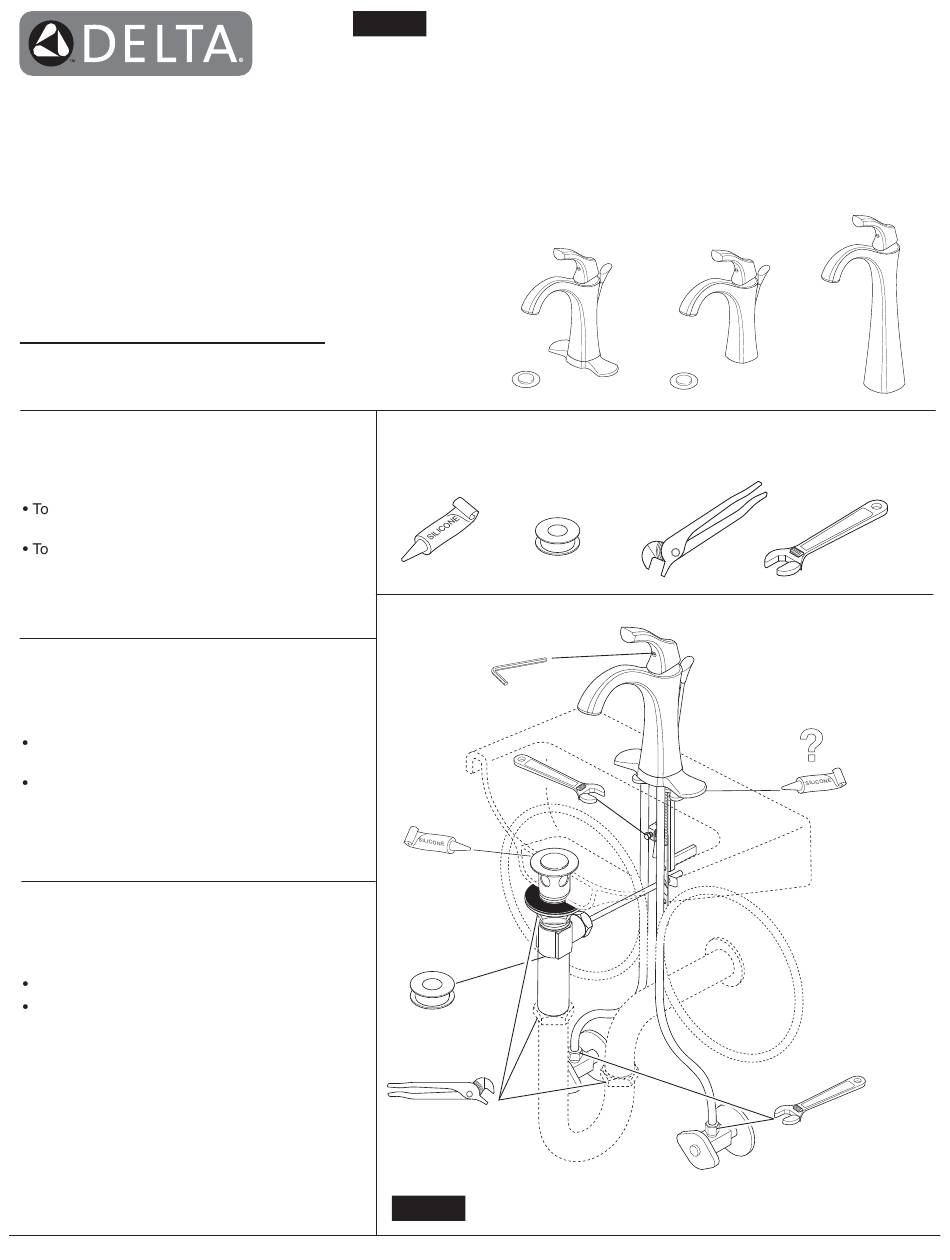

SINGLE HANDLE LAVATORY
CENTERSET AND VESSEL FAUCETS
LLAVES MONOCONTROL DE MONTURA DE
CENTRO Y DE RECIPIENTE PARA LAVAMANOS
ROBINETS À UNE MANETTE POUR BASSIN
DE COMPTOIR ET
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
1/8"
61039
1
ENTRAXE COURT
2/3/12
Rev. D
