Installation Operation Manual
thermasol.com/solutions
SSA-ACR, SSA-84, SSA-140, SSA-240, SSA-395, SSA-575
OVER 60 YEARS OF STEAM SHOWER INNOVATION

Advertisement

loading
Need help?

Need help?

Do you have a question about the AF Series and is the answer not in the manual?

Questions and answers

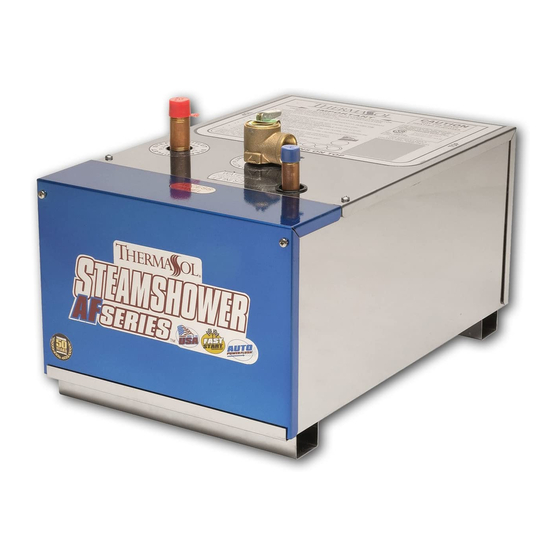

Summary of Contents for Thermasol AF Series

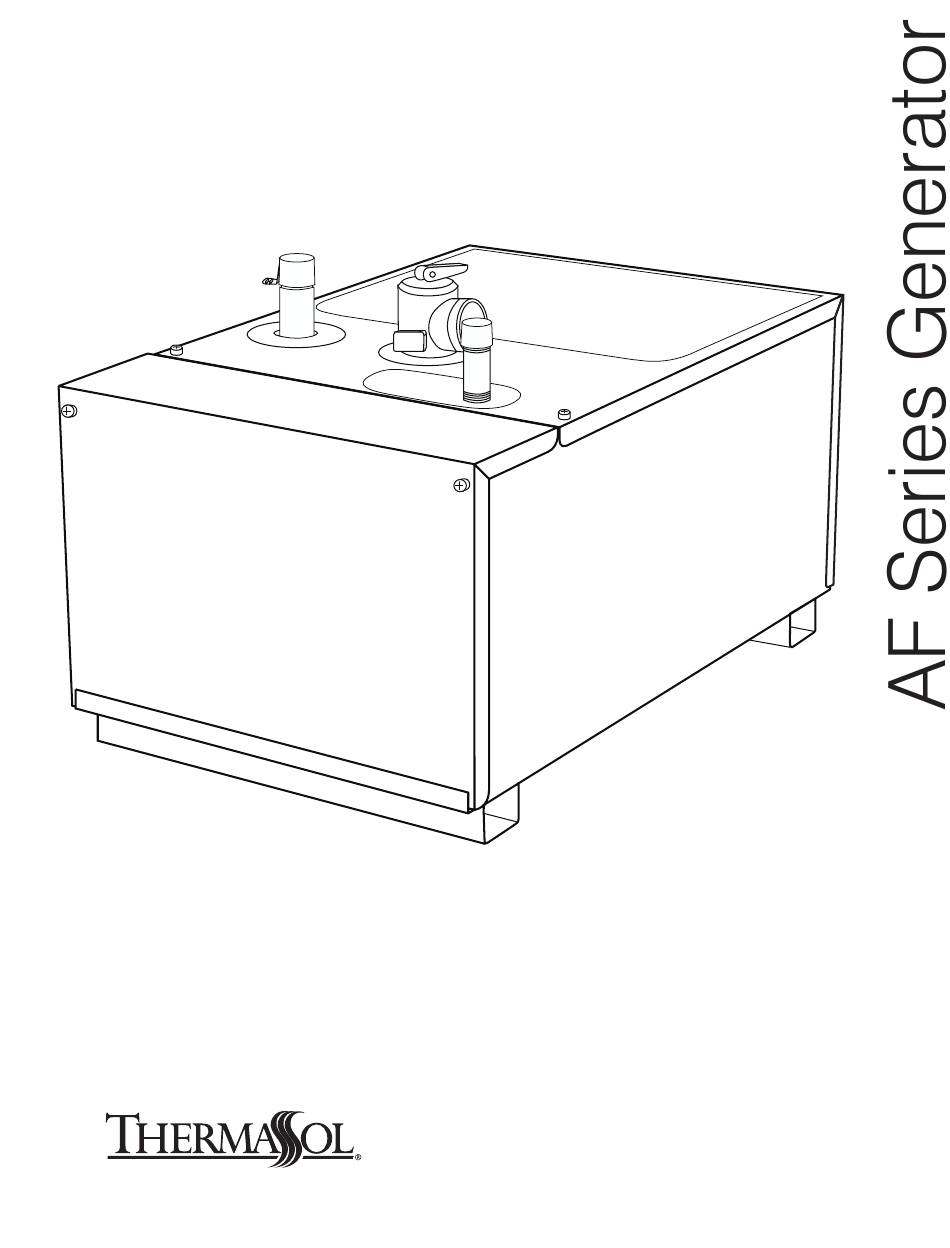

  • Page 1 Installation Operation Manual thermasol.com/solutions SSA-ACR, SSA-84, SSA-140, SSA-240, SSA-395, SSA-575 OVER 60 YEARS OF STEAM SHOWER INNOVATION...
  • Page 2: Tools And Materials

    NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE ON POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
  • Page 3: Electrical Wiring

    10 foot. Model number can be found on the box or generator. ThermaSol’s generators can be placed up to 50 feet from the shower; in an attic, closet or below a sink are ideal locations. Make sure the walls, ceiling and floor materials are suitable for use with steam.
  • Page 4 AF Series Generator Installation Instructions Placing the Generator Select a location as near as practical to the steam shower. Generator may be installed up to 50 feet away from steam Typical locations include: closet, vanity cabinet, climate shower and must be in a dry, non-combustible, well controlled attic or basement.
  • Page 5 AF Series Generator Installation Instructions Water Supply and Drain Pan Once you select the generator location, you will need to run water to the unit. Use copper or brass fittings only! Connect a tee to the existing cold water line.
  • Page 6: Control Cable

    AF Series Generator Installation Instructions Control Cable NOTE: It is recommended to run the cable through electrical conduit. Route the data cable (included with generator) through the finished wall to the back side of the control. The other end of the cable runs to the steam generator location or if present the PDM.
  • Page 7 AF Series Generator Installation Instructions Steam Line and Steamhead Now you will need to decide on the steamhead placement in the shower so you can run the steam line from the generator to the steamhead. There are a couple of things you need to know about the placement of the steamhead and steam line itself.
  • Page 8 AF Series Generator Installation Instructions Steamhead Location DO NOT install the steamhead near the seating area or the user. DO NOT forget to install the steamhead rough-in fitting! important that the pipe is firmly secured to the wall, so Install the steamhead 24" from the floor or bathtub rim that when the steamhead is installed it doesn’t push the...
  • Page 9 Verify control panel lights up and test operation. Note: Initial power-on phase takes several minutes for generator to heat up steam. Please direct the home owner to visit www.thermasol.com/solution and click on the “I’m the home owner” button to learn about set-up and programing (in order to set up the clock and any other options if applicable).
  • Page 10 AF Series Generator Installation Instructions Notes: Read warnings on page 2. For illustrative purposes only. Consult with qualified professional for steam room construction details. THERMASOL.COM 800.776.0711...
  • Page 11 AF Series Generator Installation Instructions Notes: Read warnings on page 2. For illustrative purposes only. Consult with qualified professional for steam room construction details. THERMASOL.COM 800.776.0711...
  • Page 12 ThermaSol Product Registration Dear ThermaSol End User: Please register your product at www.thermasol.com/warranty so we can assist you much quicker if you ever need to contact our Technical Support Department. In addition we’ll keep you informed about your product and time to time we’ll update you about new products and other company announcements.
  • Page 13 PRO Series, AF Series and SSM Series Generators manufactured from June 1, 2007 – current No warranty of any kind, expressed or implied is provided for PRO Series, AF Series and SSM Series Generators installed or used in any non-residential setting.
  • Page 14 1958 STEAM WAY ROUND ROCK, TX 78665 PHONE: 800.776.0711 | FAX: 800.556.5257 | WWW.THERMASOL.COM 81186 Rev A 3/19...
