Summary of Contents for Avalon V55
- Page 1 AVA LON P u r e C l a s s V- F i f t y F i v e R E A M P L I F I E R A VA L O N D E S I G N...

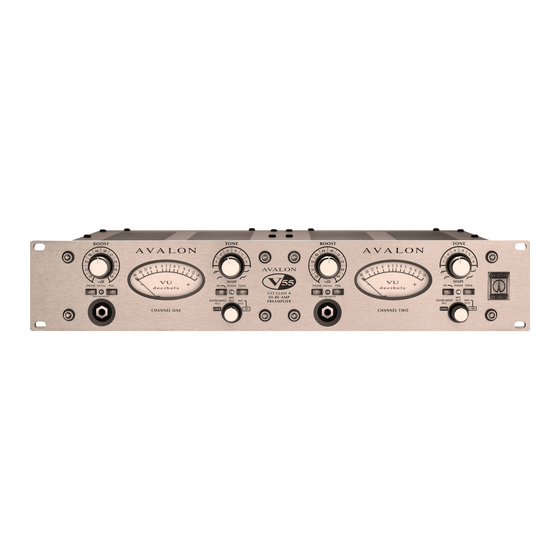

- Page 2 H IGH-VOLTAGE DI-R E -PR EA M PLI F I ER he Avalon V55 DI-RE-MIC PREAMPLIFIER is an ultra high performance, professional, dual channel preamplifier, instrument DI and RE-AMP. Created for maximum versatility, the 55’s sonic signature of “Deep and Controlled Bass, Musical Mid-range and enhanced Vocal Projection”...
- Page 3 AVALON V55 OPERATING INSTRUCTIONS Check AC power selector on rear panel for correct local supply 115v or 230v. Carefully flip the voltage/fuse panel open, remove TO CHANGE AC VOLTAGE: the RED volatge/fuse card and rotate to indicate correct AC voltage through rear voltage display window.
- Page 4 50Hz @ 6dB/octave 90Hz @ 6dB/octave TONE selections 1 through 6 are identical to the TONE-BANK™ options in the Avalon U5 “Ultra-Five” Direct Box-preamplifier. 1kHz 1kHz 1kHz acoustic and string electric bass guitar...
- Page 5 AVALON V55 REAR PANEL CONNECTIONS AC VOLTAGE SELECTOR. Select for either 115v or 230v. input FUSE 5mm slow blow type : 115v = 0.2A, 230v=0.1A. EARTH Switch isolates chassis ground from audio signal gound, lift UP position is LIFTED. LINE Dual TRS Jack and XLR BALANCED outputs, DC coupled, high-current, 600 ohm, +30dB maximum.
- Page 7 19 x 3.5 x 12 in (483 x 88 x 305mm) Weight 24lbs (10.9kg) Avalon reserves the right to incorporate changes in design and in the specifications of this product without prior notice. AVALON DESIGN 3417 W. Burbank Blvd., Burbank, California 91505 U.S.A.
