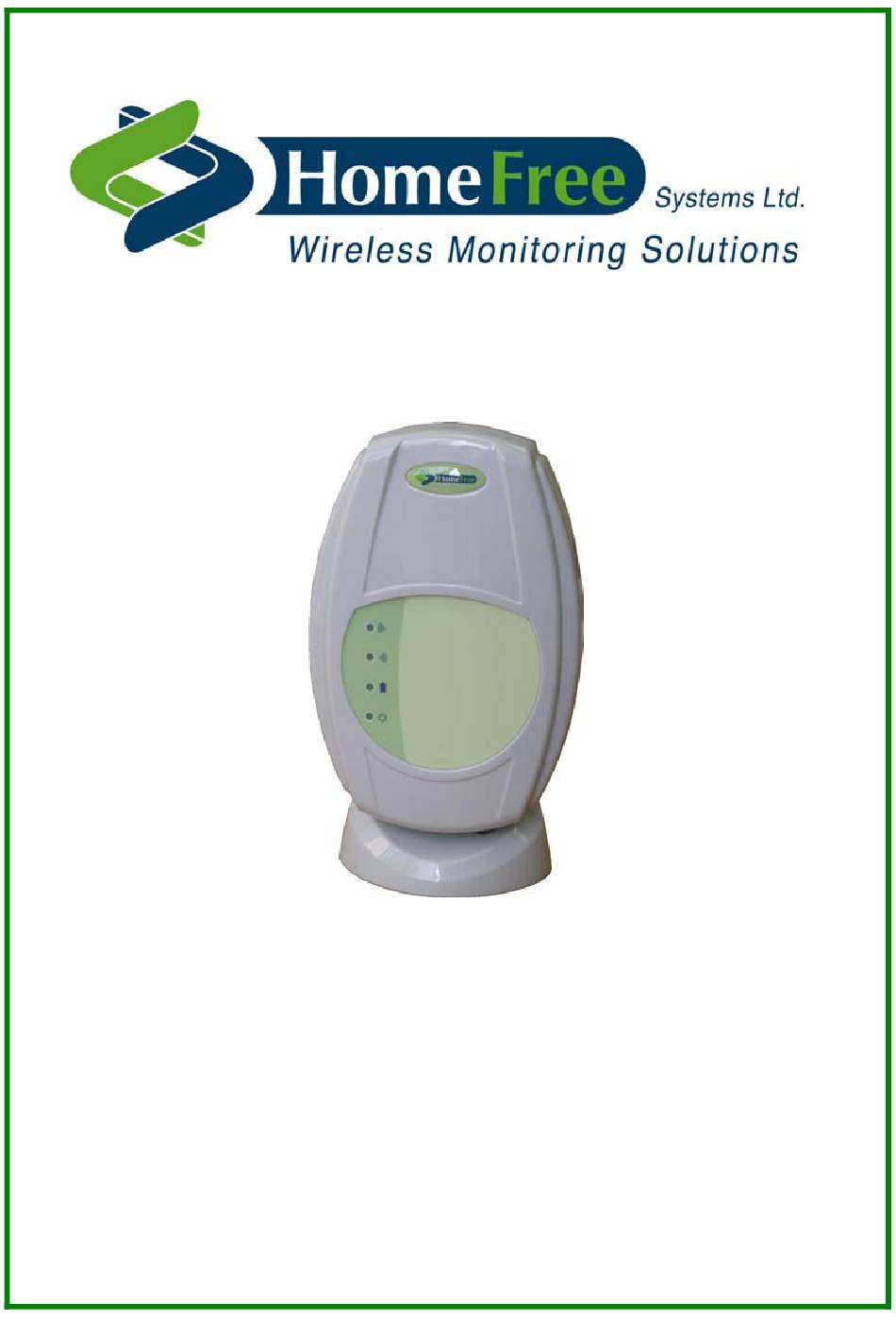

- Page 1 HOMEFREE AT CARE CENTERS WIRELESS MONITORING UNIT (iDEU 810 / iDEU 810-2) INSTALLATION AND OPERATIONAL GUIDE October 2004...
- Page 3 Information in this documentation is subject to change without notice and does not represent a commitment on part of HomeFree Systems Ltd. Any unauthorized duplication or use of this documentation, in whole or in part, in print, or in any other storage or retrieval system is prohibited. No part of...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Section Page 1 INTRODUCTION....................1-1 1.1 P DEU-810)....1-2 ARTS OF THE IRELESS ONITORING 1.1.1 LED Panel................. 1-3 2 MOUNTING THE WIRELESS MONITORING UNIT (IDEU-810)....2-4 2.1 P ........ 2-4 ERMANENT NCHOR OWEL ITTING 2.2 T ..........2-5 EMPORARY ELCRO ITTING 3 ACTIVATING THE WIRELESS MONITORING UNIT ......3-7... -
Page 7: Introduction
The new improved Wireless Monitoring Unit (iDEU-810) is a versatile combination of both transmitter and receiver that is designed to extend the transmission / reception range of HomeFree at Care Centers systems. The Wireless Monitoring Unit (iDEU-810) is one of many specifically... -
Page 8: Parts Of The Wireless Monitoring Unit (Ideu-810)

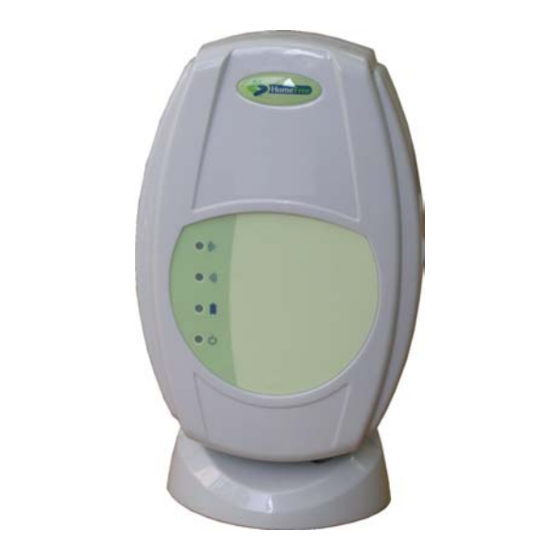

1.1 Parts of the Wireless Monitoring Unit (iDEU-810) Mounting Bracket LED Panel Figure 1-1 Wireless Monitoring Unit (iDEU-810) iDEU-810 Installation and Operational Guide... -
Page 9: Led Panel
1.1.1 LED Panel The faceplate of the Wireless Monitoring Unit (iDEU-810) comprises of 4 LEDs (Light emitting diodes). The purpose of each LED is explained in the following table: Description and Purpose Reception Blinks when receiving transmission signals Blinks when transmitting signals Transmission Charge Steady light indicates internal battery is fully... -
Page 10: Mounting The Wireless Monitoring Unit (Ideu-810)
2 Mounting the Wireless Monitoring Unit (iDEU-810) For a Wireless Monitoring Unit to receive and transmit signals with maximum efficiency, it should be mounted on a wall or flat surface and positioned upright. The Wireless Monitoring Unit should also be mounted within reach of a power outlet (an electrician my need to install a power outlet near the chosen Wireless Monitoring Unit location). -
Page 11: Temporary Velcro Wall Fitting
3. Using the template, drill two holes in the wall and place the supplied wall anchors/dowels into these holes. 4. Insert the supplied bolts/screws into the wall dowels, ensuring not to tighten the bolts/screws completely. 5. Holding the Wireless Monitoring Unit with the mounting brackets facing away from you, maneuver the holes on the mounting brackets over the bolts/screws already attached to the wall. - Page 12 5. Holding the Wireless Monitoring Unit with the mounting brackets facing away from you, maneuver the Wireless Monitoring Unit to a suitable mounting location. 6. Using sufficient pressure, adhere the mounting bracket on the Wireless Monitoring Unit, to the wall. iDEU-810 Installation and Operational Guide...
-
Page 13: Activating The Wireless Monitoring Unit
3 Activating the Wireless Monitoring Unit In order to activate the Wireless Monitoring Unit, perform the following: 1. Connect the adapter end of the power supply to a power outlet. 2. Connect the small end of the supplied power supply into the 7.5 VDC power socket located on the side panel of the Wireless Monitoring Unit. -
Page 14: Fcc Notices
4 FCC Notices This note is applicable to the American Wireless Monitoring Unit (iDEU-810) NOTE - The Wireless Monitoring Unit (iDEU-810) complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 15 For Customer Support contact: Home Free Systems Inc. Wireless TelehomeCare Solutions 6629 West Mill Road Milwaukee, WI 53218 Toll Free 1-800-606-0661 +1-414-358-8100 Web: http://www.homefreesys.com iDEU-810 Installation and Operational Guide...
